Test K

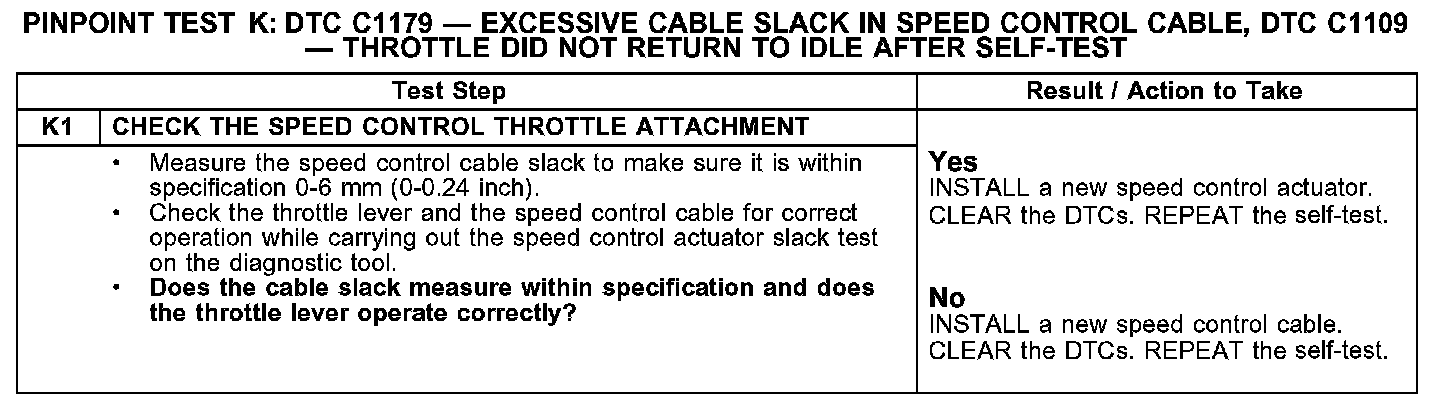

PINPOINT TEST K: DTC C1179 - EXCESSIVE CABLE SLACK IN SPEED CONTROL CABLE, DTC C1109 - THROTTLE DID NOT RETURN TO IDLE AFTER SELF-TESTTest K1:
Normal Operation When the inputs are received by the speed control actuator, a stepper motor is prompted to pull the throttle through a speed control cable to maintain the selected speed.
Possible Causes -
speed control cable
-
speed control actuator
