General Specifications

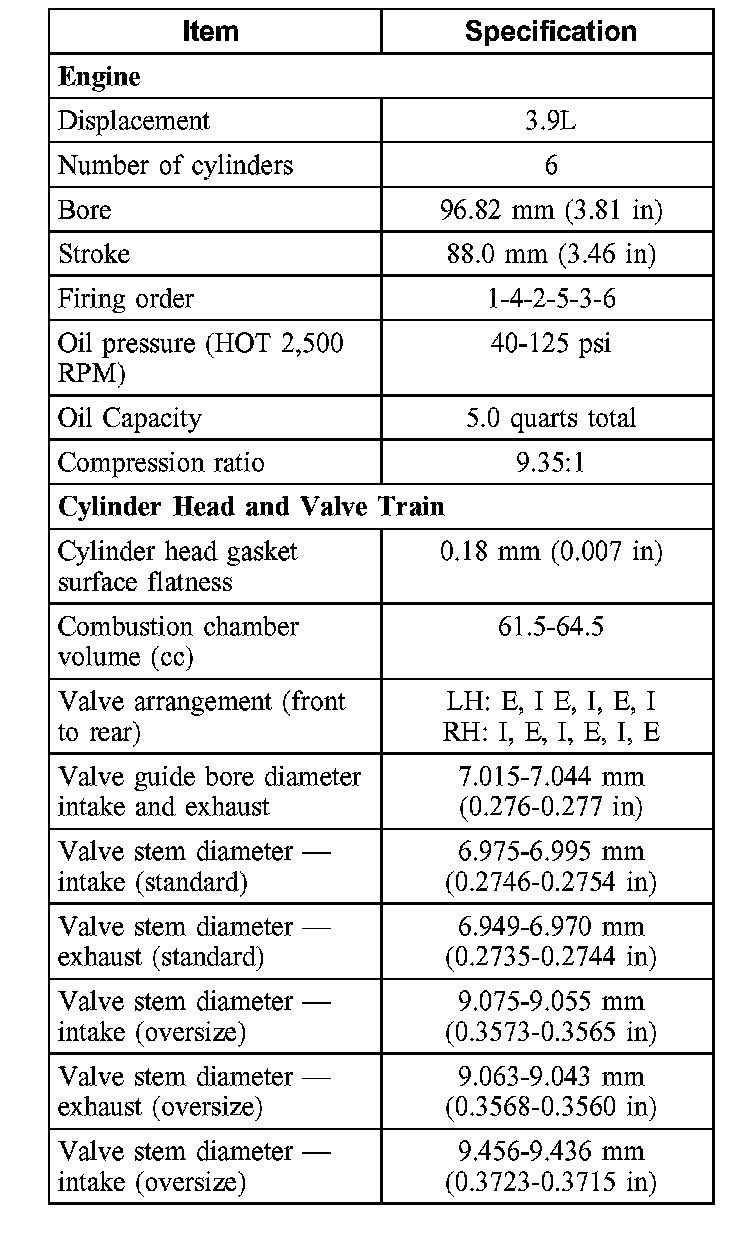

General Specifications Part 1 Of 5:
General Specifications Part 2 Of 5:

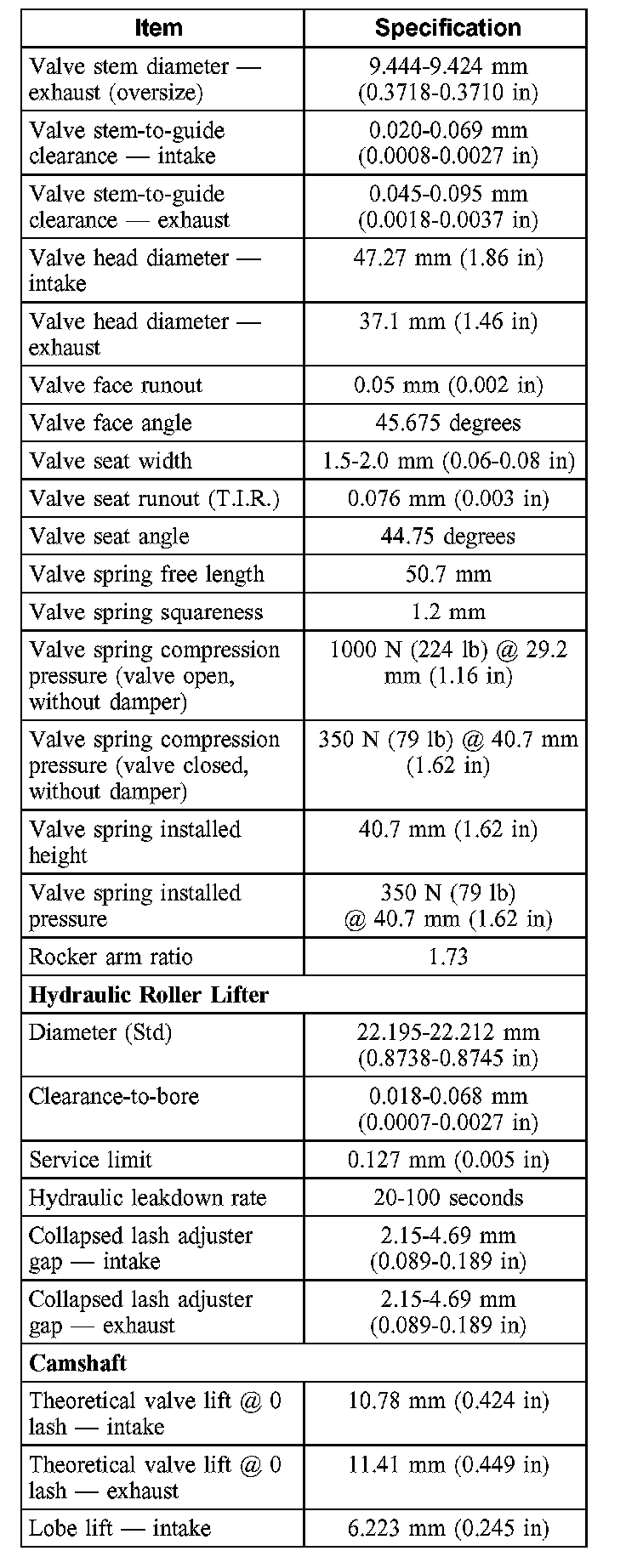

General Specifications Part 3 Of 5:

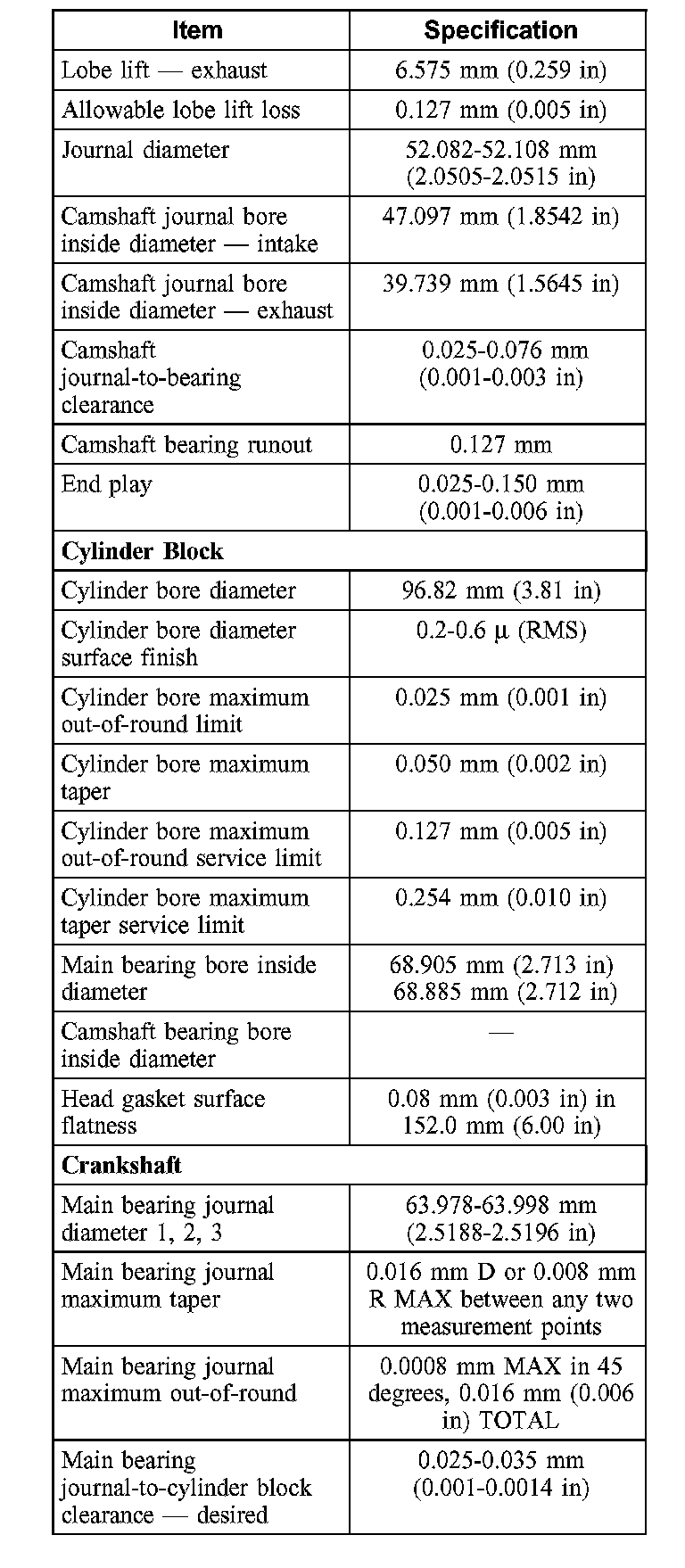

General Specifications Part 4 Of 5:

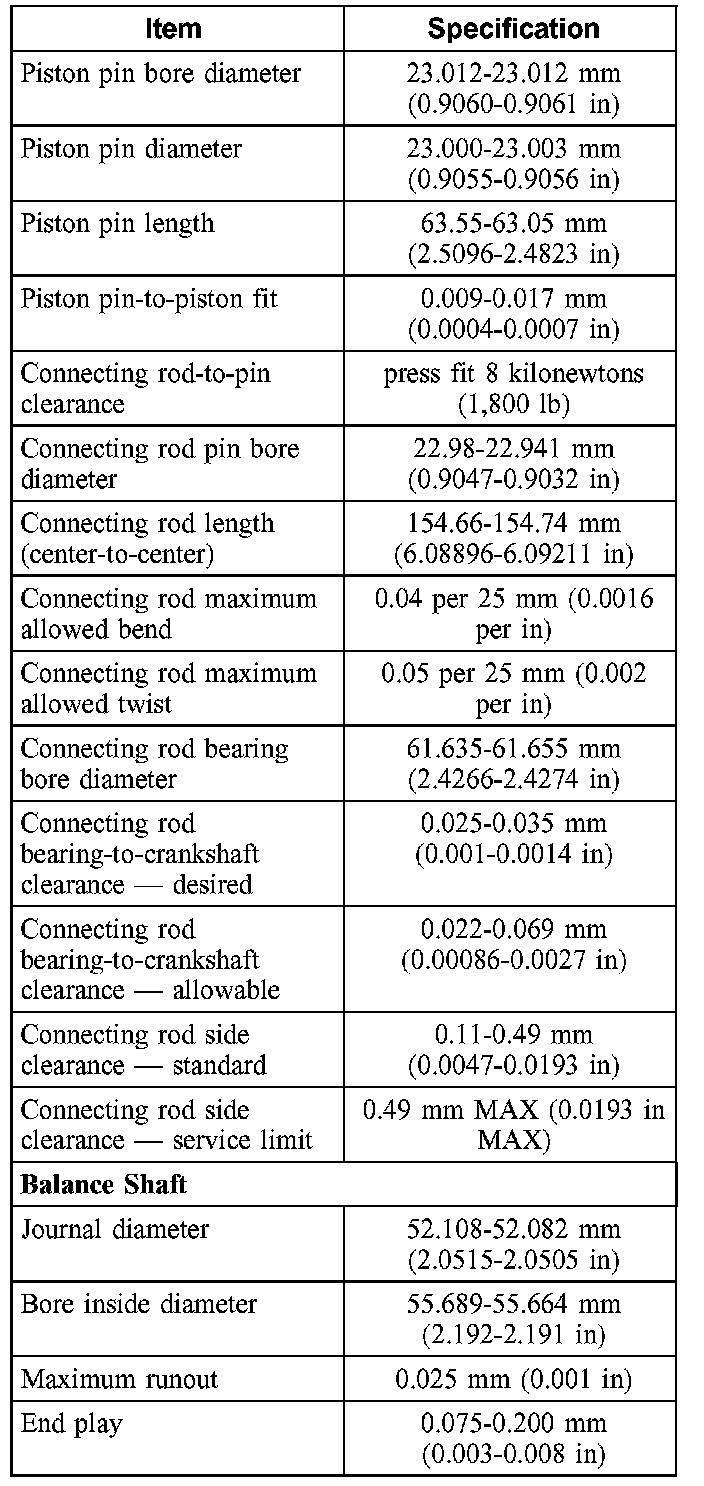

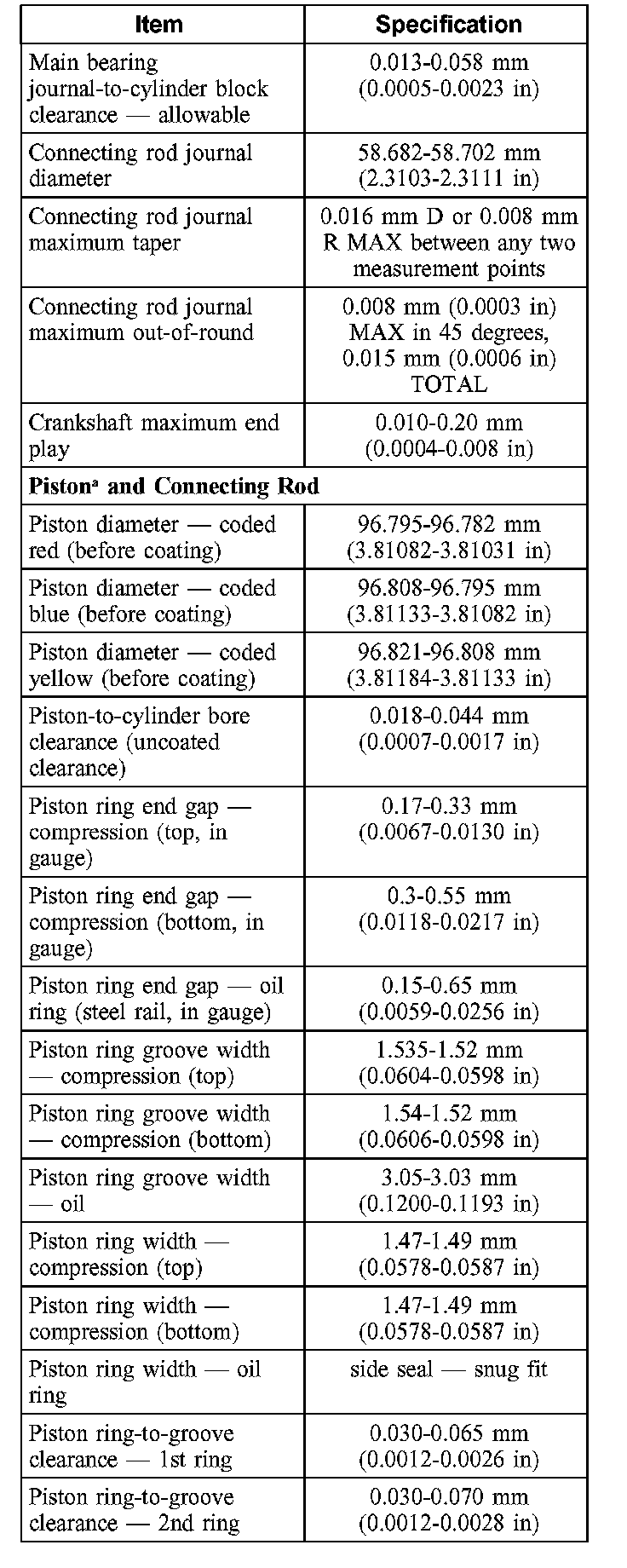

General Specifications Part 5 Of 5:
a When installing new pistons, measure the cylinder bore. Install the service
piston matched to the piston bore diameter above.
