Air Duct: Service and Repair

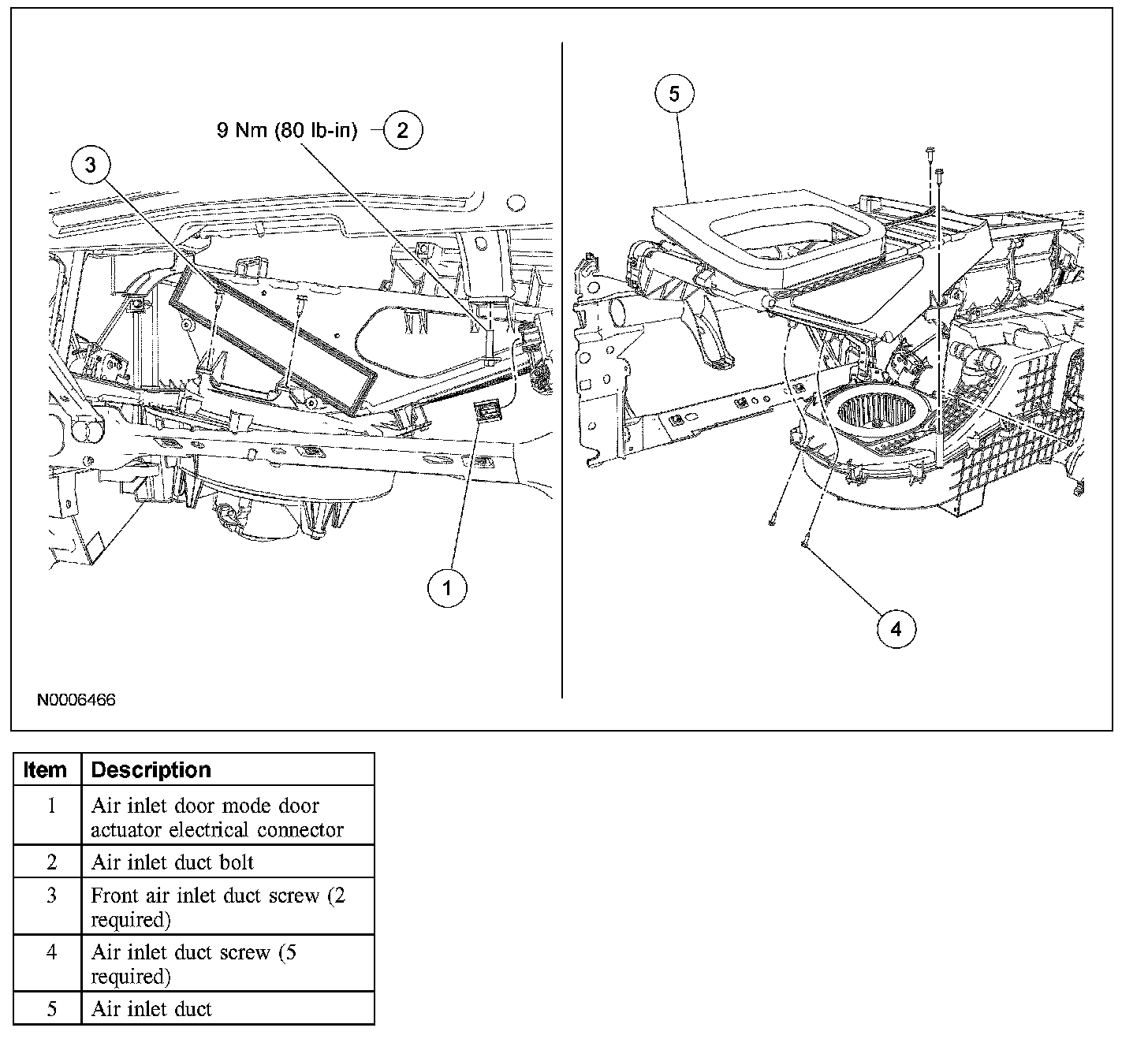

AIR INLET DUCT

Removal and Installation

1. Remove the instrument panel cross beam.
2. Disconnect the air inlet door mode door actuator electrical connector and detach the wire harness from the air inlet duct.
3. Remove air inlet duct bolt.
- To install, tighten to 9 Nm (80 lb-in).

4. Remove the 2 front air inlet duct screws.
5. Remove the remaining 5 air inlet duct screws.
6. Remove the air inlet duct.
7. To install, reverse the removal procedure.
