Auxiliary Climate Control

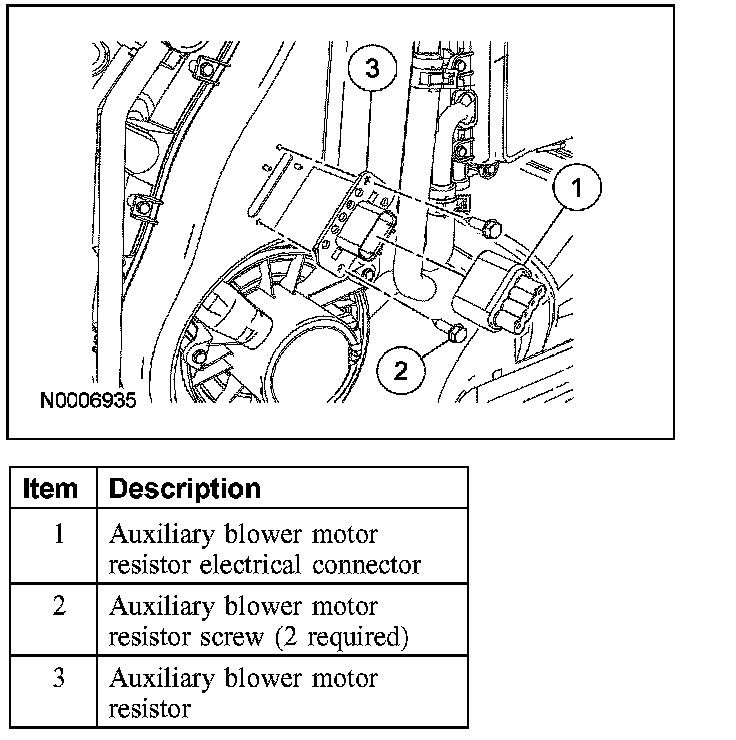

BLOWER MOTOR RESISTORRemoval and Installation 1.
Remove the LH quarter trim panel.
2.
Disconnect the auxiliary blower motor resistor electrical connector.
3.
Remove the 2 auxiliary blower motor resistor screws.
4.
Remove the auxiliary blower motor resistor.
5.
To install, reverse the removal procedure.
