Fuel Filter: Service and Repair

FUEL FILTER

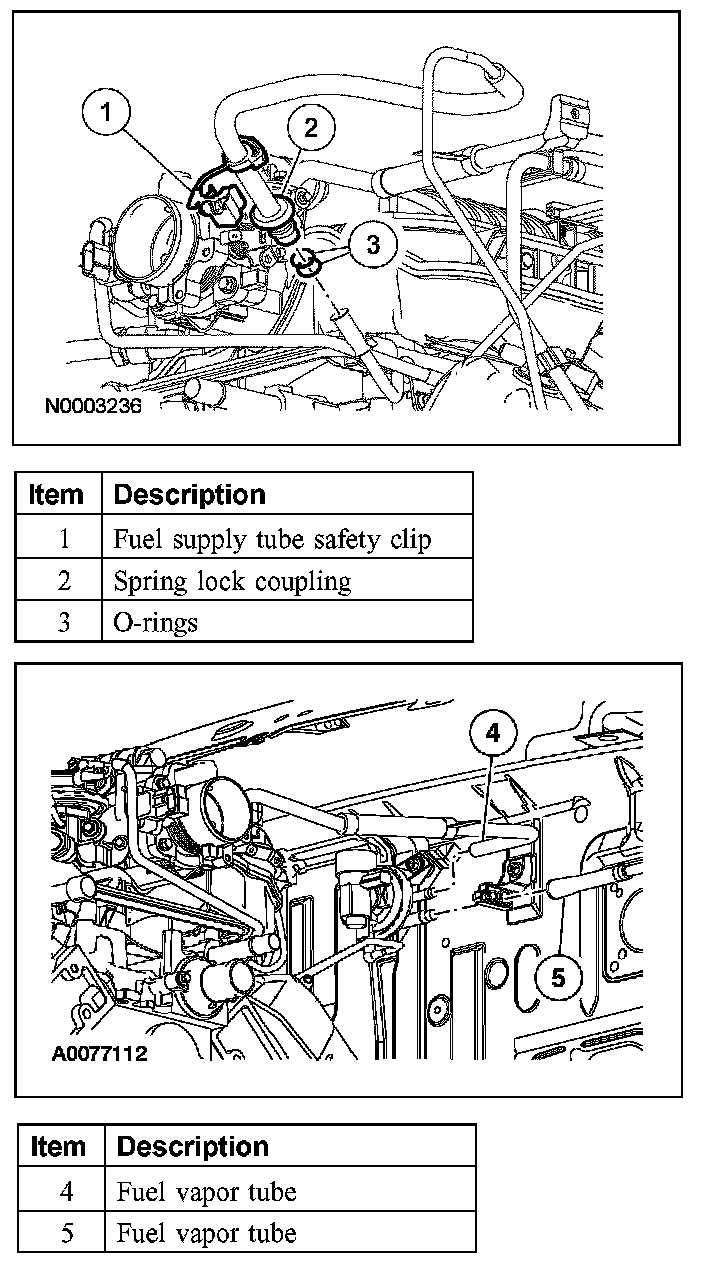

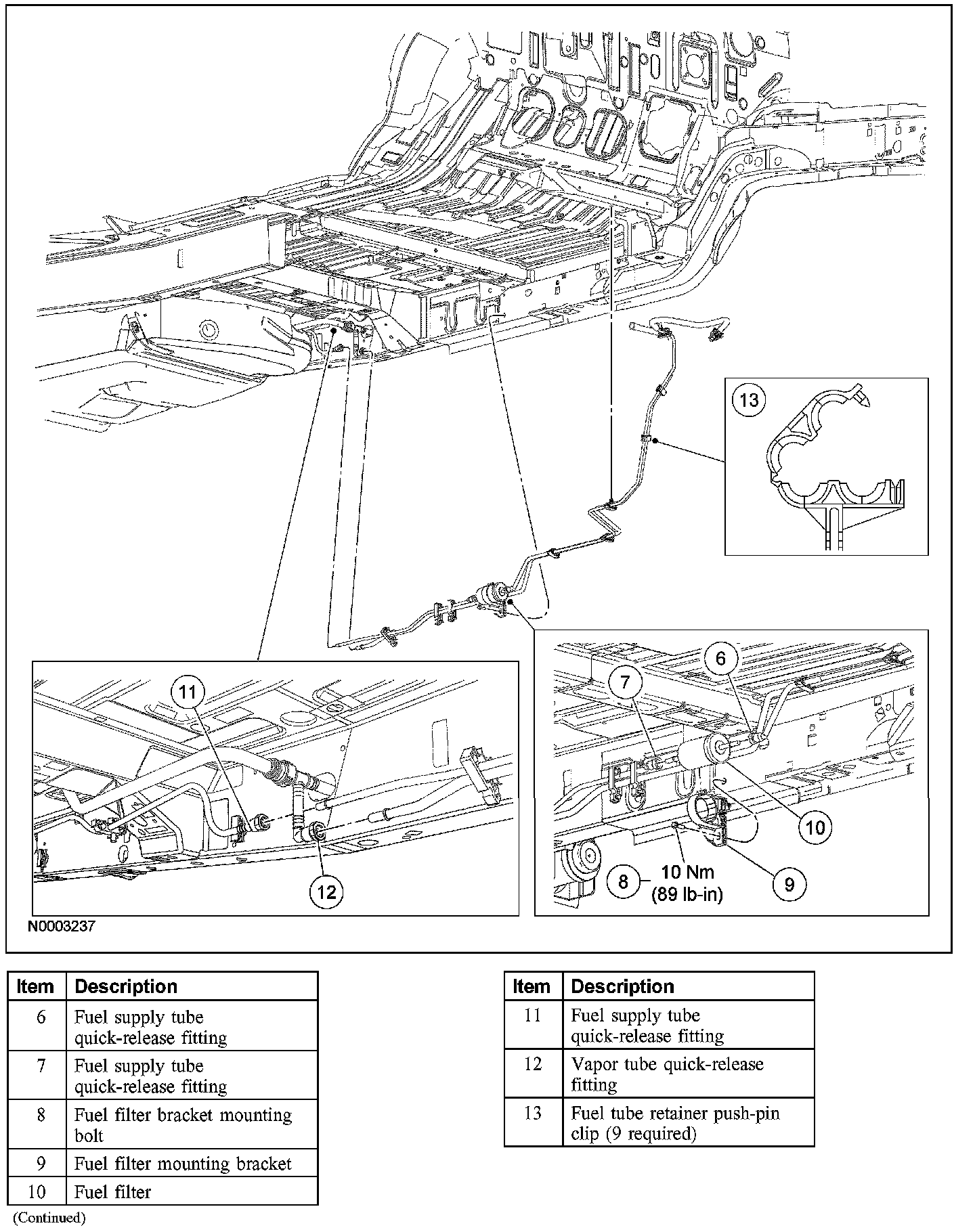

Exploded View

Removal and Installation

WARNING:
- Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited, resulting in possible personal injury.
- Fuel in the fuel system remains under high pressure even when the engine is not running. Before repairing or disconnecting any of the fuel system components, the fuel system pressure must be relieved to prevent accidental spraying of fuel causing personal injury or a fire hazard.

1. With vehicle in NEUTRAL, position it on a hoist.
2. Release the fuel system pressure.
3. Disconnect the battery ground cable.
4. Disconnect the 2 fuel supply tube quick-release couplings at the fuel filter.
5. Remove the fuel filter bracket mounting bolt and slide the fuel filter out of the bracket.
- To install, tighten to 10 Nm (89 lb-in).

6. To install, reverse the removal procedure.
