Air Register: Service and Repair

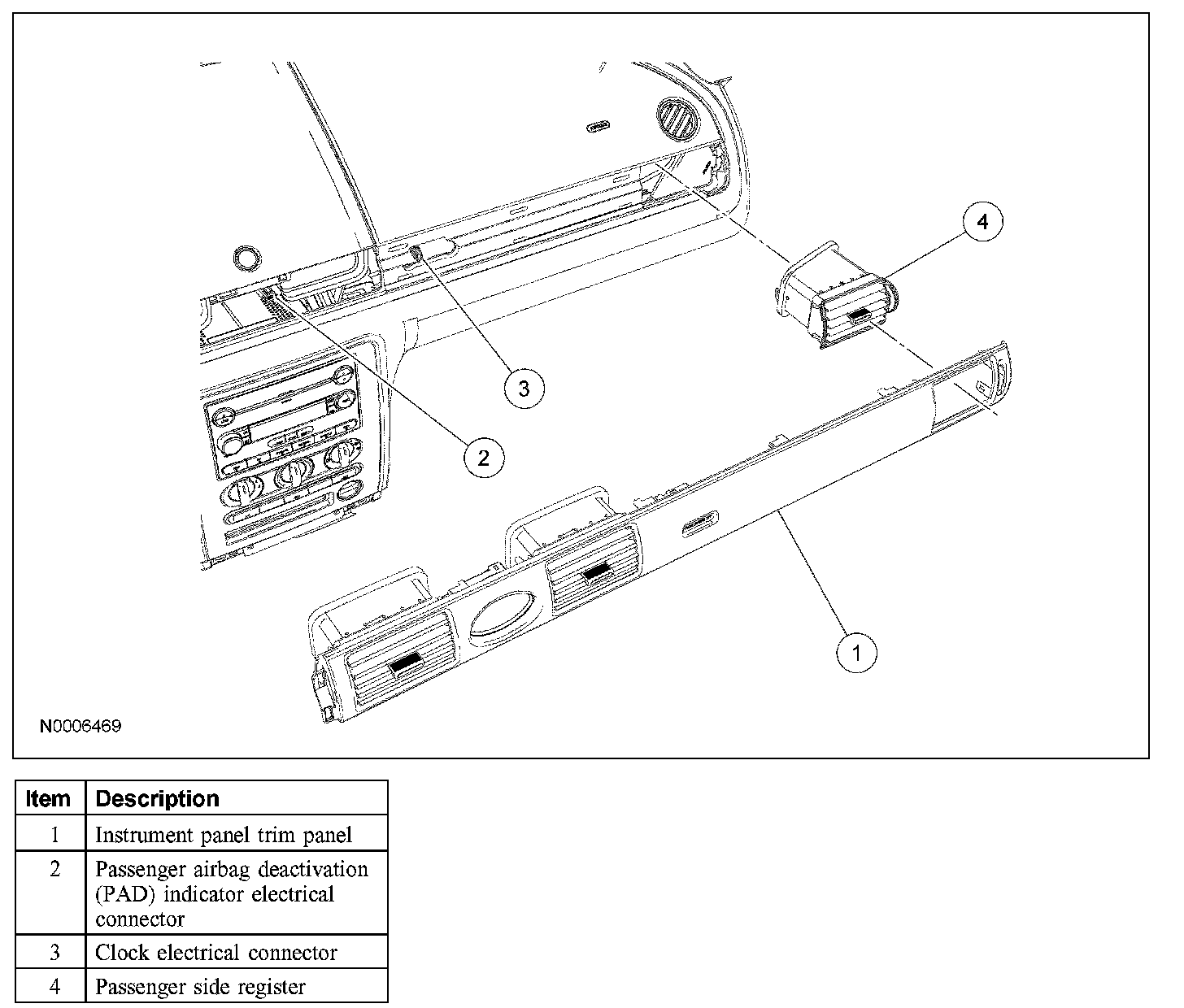

REGISTER - PASSENGER SIDE







Removal and Installation
1. Remove the instrument cluster finish panel.
2. Remove the instrument panel trim panel.
3. Disconnect the passenger airbag deactivation (PAD) indicator electrical connector.
4. Disconnect the clock electrical connector (if equipped).
5. Release the 4 clips and remove the passenger side register.
6. To install, reverse the removal procedure.

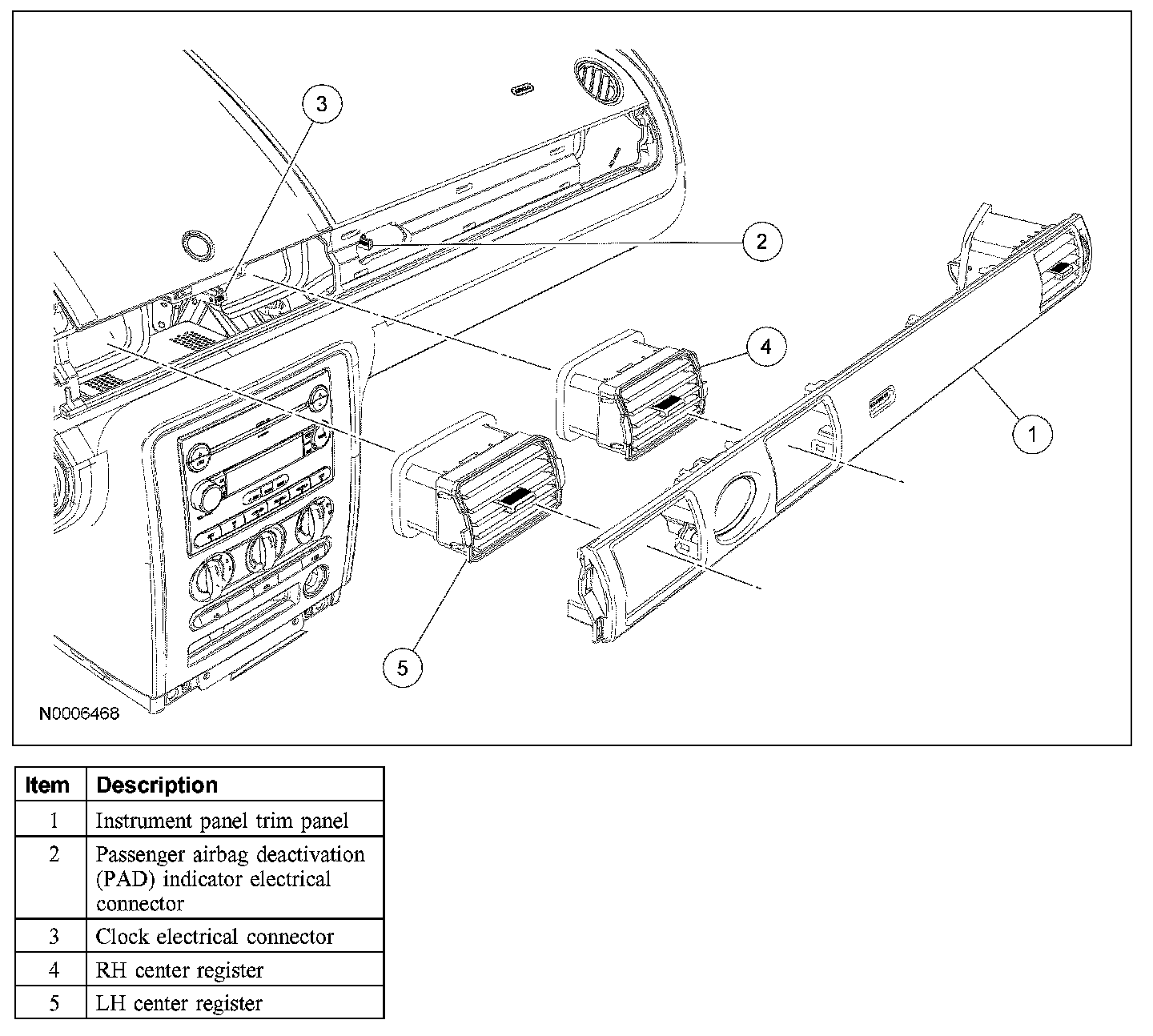

REGISTER - CENTER







Removal and Installation
1. Remove the instrument cluster finish panel.
2. Remove the instrument panel trim panel.
3. Disconnect the passenger airbag deactivation (PAD) indicator electrical connector.
4. Disconnect the clock electrical connector (if equipped).
5. Release the 4 clips and remove the RH center register.
6. Release the 4 clips and remove the LH center register.
7. To install, reverse the removal procedure.

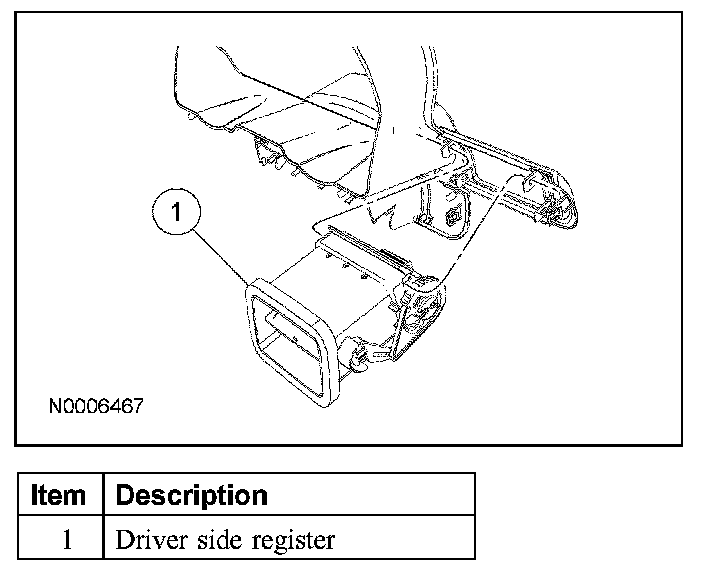

REGISTER - DRIVER SIDE







Removal and Installation
1. Remove the instrument cluster finish panel.
2. Release the 4 clips and remove the driver side register.
3. To install, reverse the removal procedure.
