Power Mirror Motor: Service and Repair

EXTERIOR MIRROR MOTOR

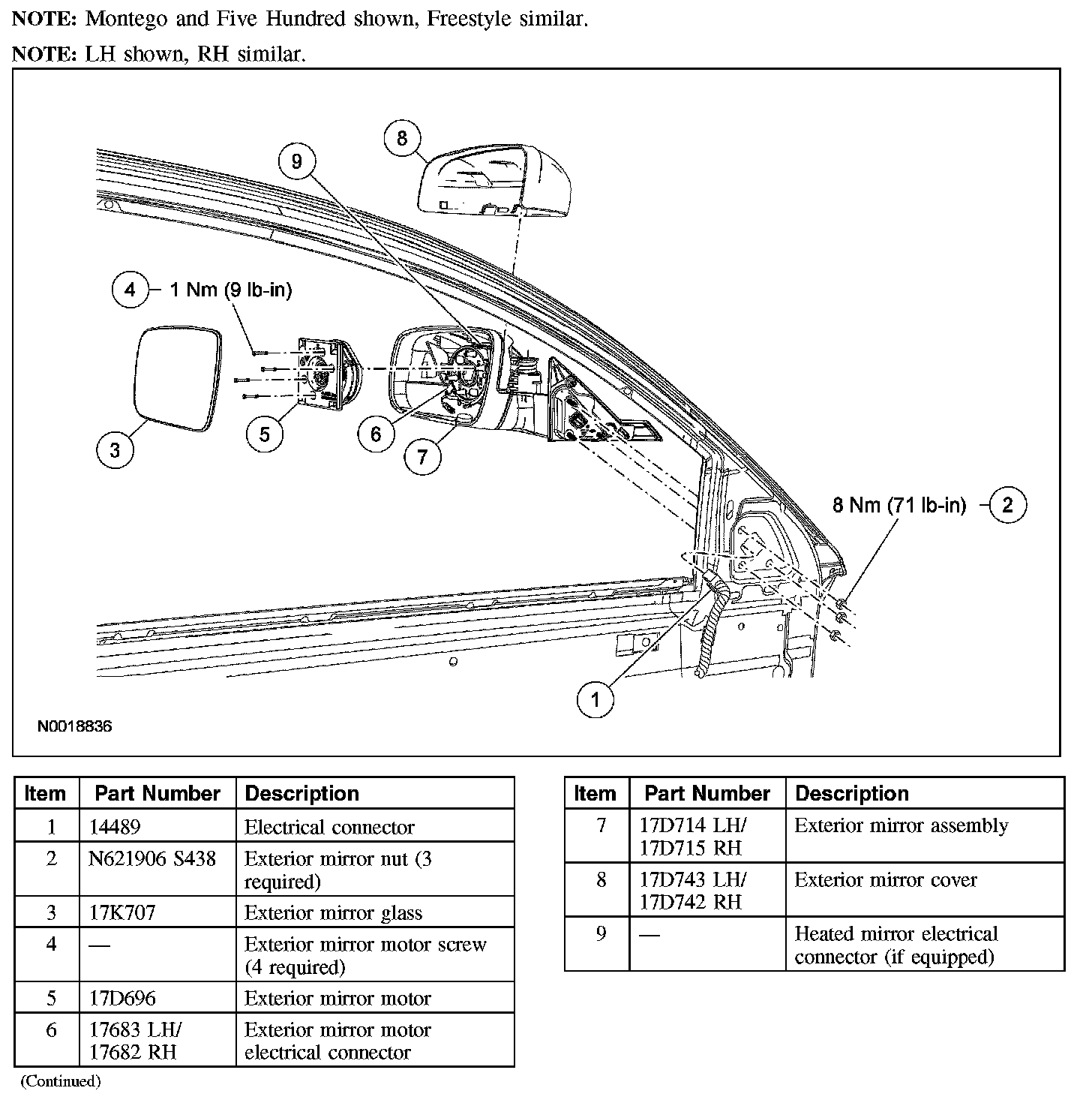

Exploded View

Removal and Installation
1. Remove the exterior rear view mirror glass.

2. NOTE: The exterior mirror motor screws should not be completely removed from the exterior mirror motor assembly.

Completely loosen, but do not remove the 4 exterior rear view mirror motor screws.
- To install, tighten to 1 Nm (9 lb-in).

3. Disconnect the exterior rear view mirror motor electrical connector.
4. Remove the exterior rear view mirror motor.
5. To install, reverse the removal procedure.
