Fuel Filter: Service and Repair

FUEL FILTER

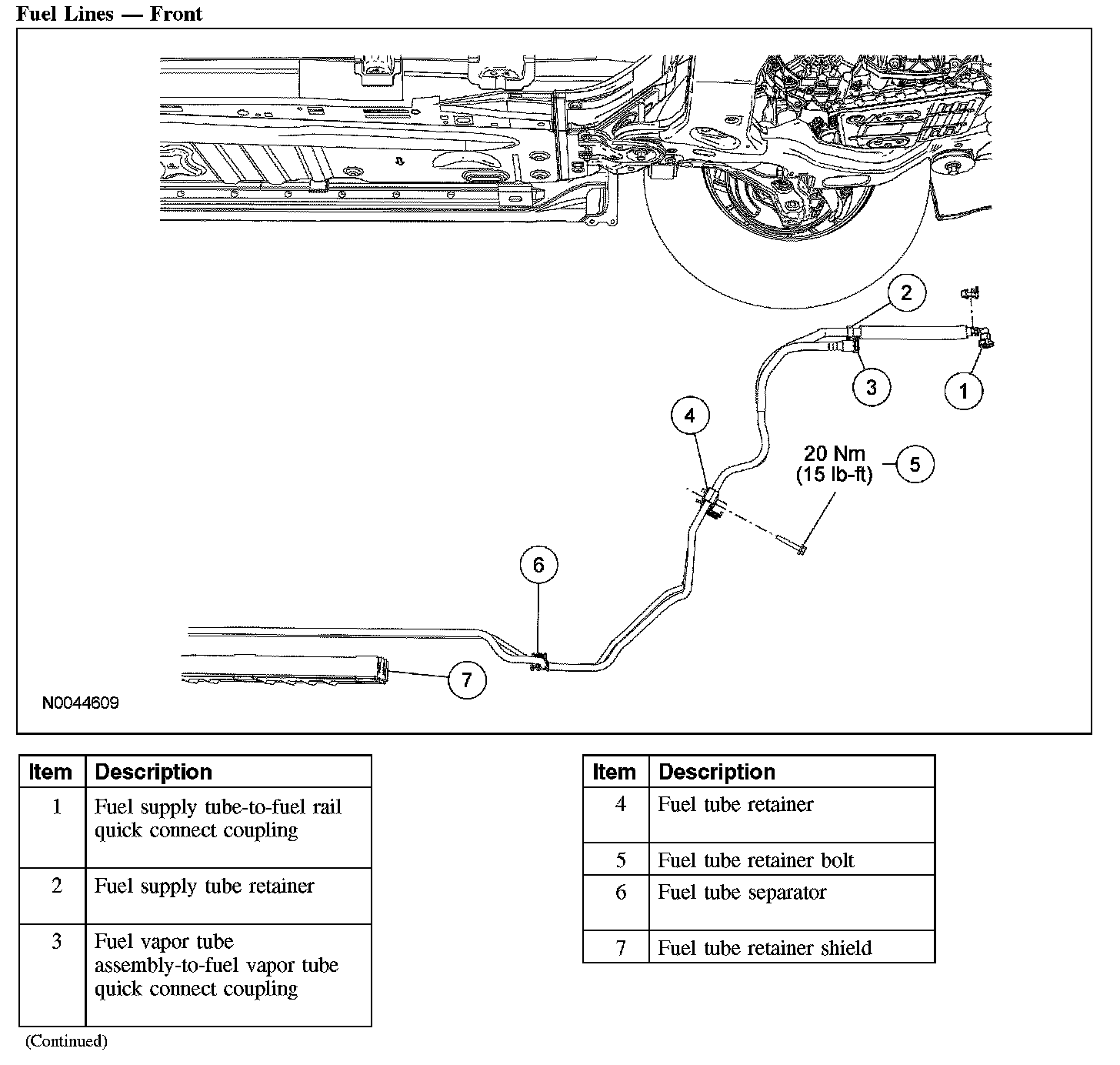

Fuel Lines - Front:

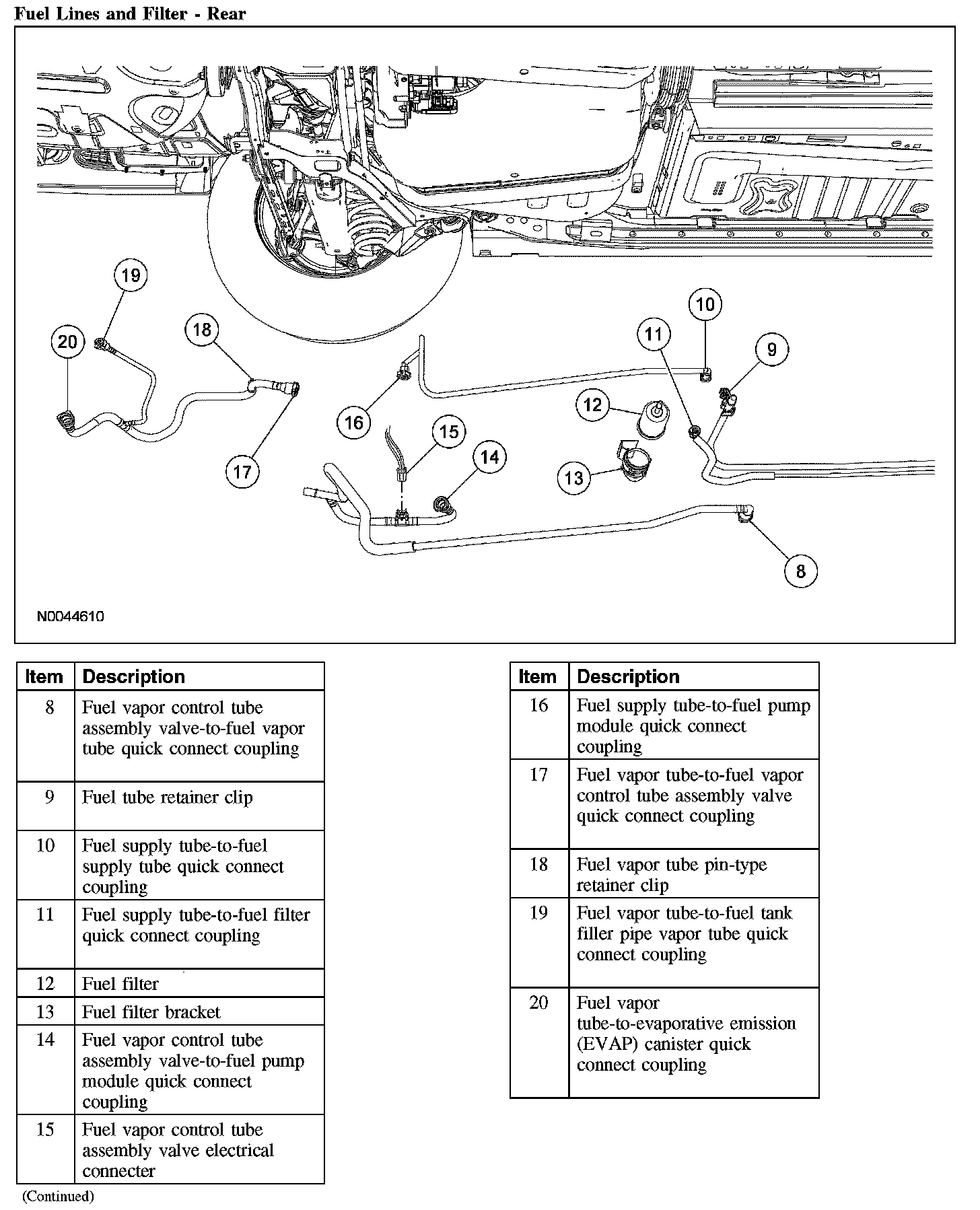

Fuel Lines And Filter - Rear:

Exploded View

Removal and Installation

WARNING:
- Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions can result in personal injury.
- Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related components. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions can result in personal injury.
- Fuel in the fuel system remains under high pressure even when the engine is not running. Before servicing or disconnecting any of the fuel system components, the fuel system pressure must be relieved to prevent accidental spraying of fuel, causing personal injury or a fire hazard.
- This procedure involves fuel handling. Be prepared for spillage at all times and always observe fuel handling precautions. Failure to follow these instructions can result in personal injury.

1. With the vehicle in NEUTRAL, position it on a hoist.
2. Release the fuel system pressure.
3. Disconnect the battery ground cable.

4. NOTE: The fuel tubes and fuel filter may have some fuel remaining within after the fuel system pressure is released. Upon disconnecting the fuel supply tubes or removing the fuel filter, carefully drain the residual fuel into a suitable container.

Disconnect the fuel supply tube-to-fuel filter inlet quick connect coupling.

5. Disconnect the fuel supply tube-to-fuel filter outlet quick connect coupling.
6. Loosen the fuel filter retaining clamp.
- To install, tighten to 3 Nm (27 lb-in).

7. Remove the fuel filter.
8. To install, reverse the removal procedure.
