Windshield Washer Pump: Service and Repair

WASHER PUMP AND RESERVOIR - WINDSHIELD







Removal and Installation

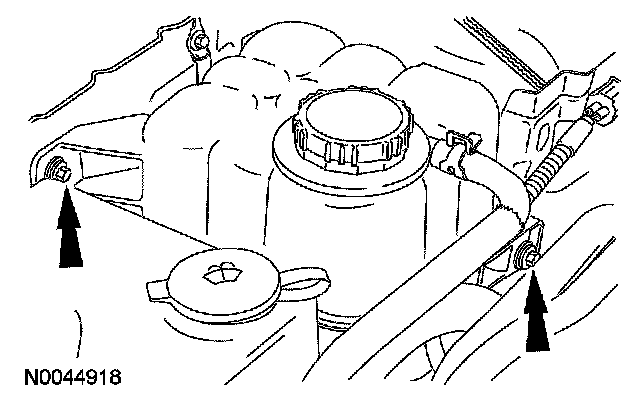

1. Remove the 2 degas bottle bolts and position the degas bottle aside.
- To install, tighten to 9 Nm (80 lb-in).

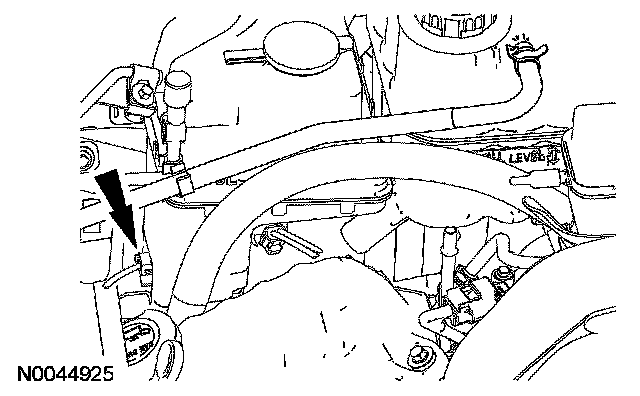

2. Disconnect the washer fluid level sensor electrical connector.

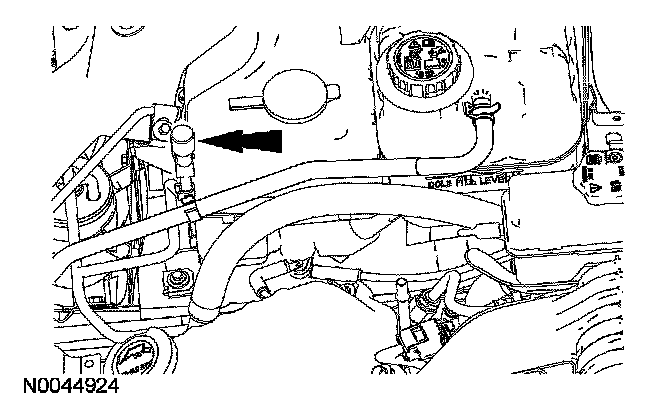

3. Disconnect the A/C line bracket.

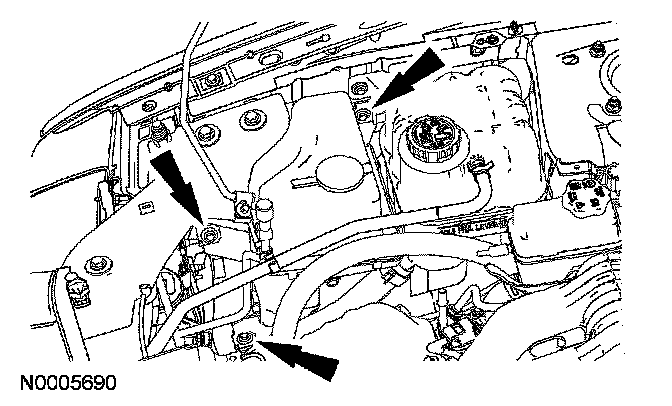

4. Remove the 3 windshield washer reservoir bolts.
- To install, tighten to 5 Nm (44 lb-in).

5. WARNING: Windshield washer solution contains methanol, which is poisonous. Observe all cautions and warnings indicated on label of the washer solution container.

CAUTION: Do not operate the windshield washer pump prior to filling the windshield reservoir.

NOTE: To prevent spilling windshield washer fluid, drain the windshield washer reservoir before removal.

Disconnect the front and rear (if equipped) window washer hose.

6. Disconnect the window washer pump electrical connector.
7. To install, reverse the removal procedure.
- Fill the windshield washer reservoir.
