Air Cleaner Housing: Service and Repair

AIR CLEANER

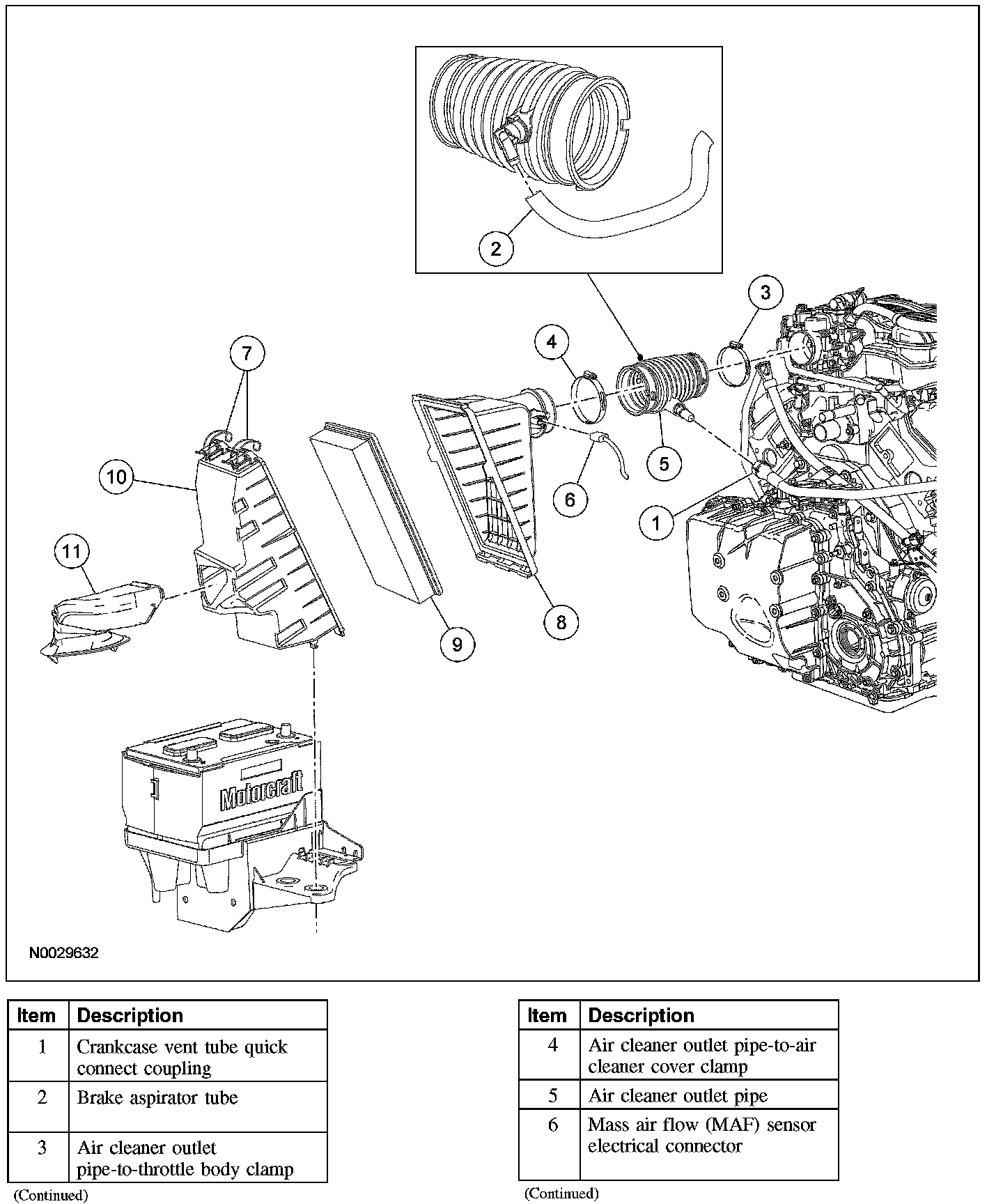

Part 1:






Part 2:






Exploded View

Removal and Installation
1. Disconnect the crankcase vent tube quick connect coupling from the air cleaner outlet pipe.

2. CAUTION: The brake aspirator tube must be fully seated in the air cleaner outlet pipe or a vacuum leak will occur.

Disconnect the brake aspirator tube from the air cleaner outlet pipe.

3. Loosen the 2 clamps and disconnect the air cleaner outlet pipe from the throttle body and the air cleaner cover and remove.
- To install, tighten to 4 Nm (35 lb-in).

4. Disconnect the mass air flow (MAF) sensor electrical connector.
5. Remove the air cleaner assembly by lifting up and releasing it from the gromments.
6. To install, reverse the removal procedure.
