Cylinder Head Assembly
Cylinder Head SurfaceNOTE: Use a straight edge that is calibrated by the manufacturer to be flat with 0.005 mm (0.0002 inch) per running foot length. For example, if the straight edge is 61 cm (24 inch) long, the machined edge must be flat with 0.010 mm (0.0004 inch) from end to end.
Intake Manifold Bolts
Stage 1: Tighten to 2 Nm (18 inch lbs.).
Stage 2: Tighten to 10 Nm (89 inch lbs.).

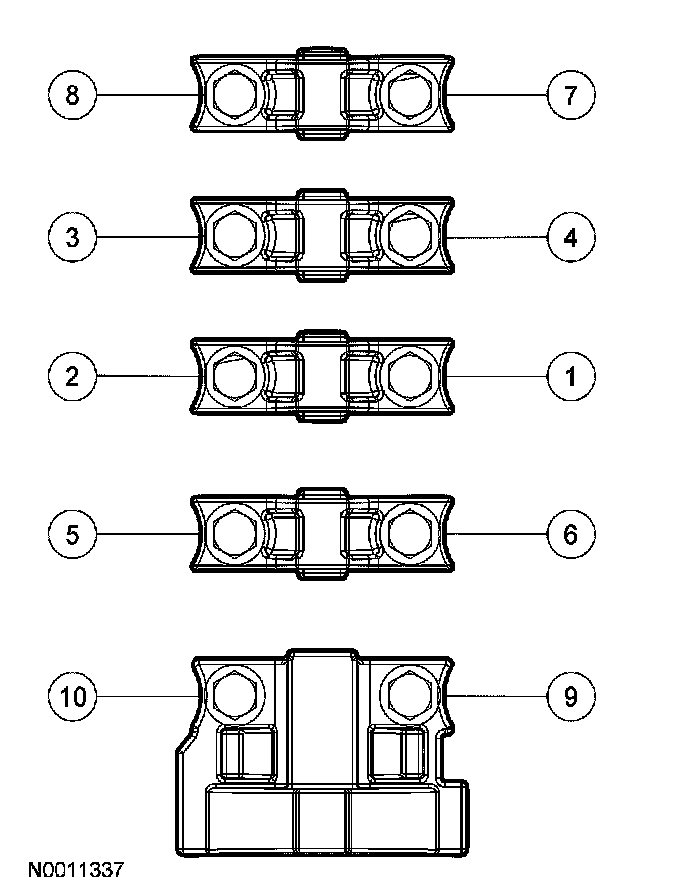

LH Camshaft Bearing Cap Bolts
Tighten to 10 Nm (89 inch lbs.).

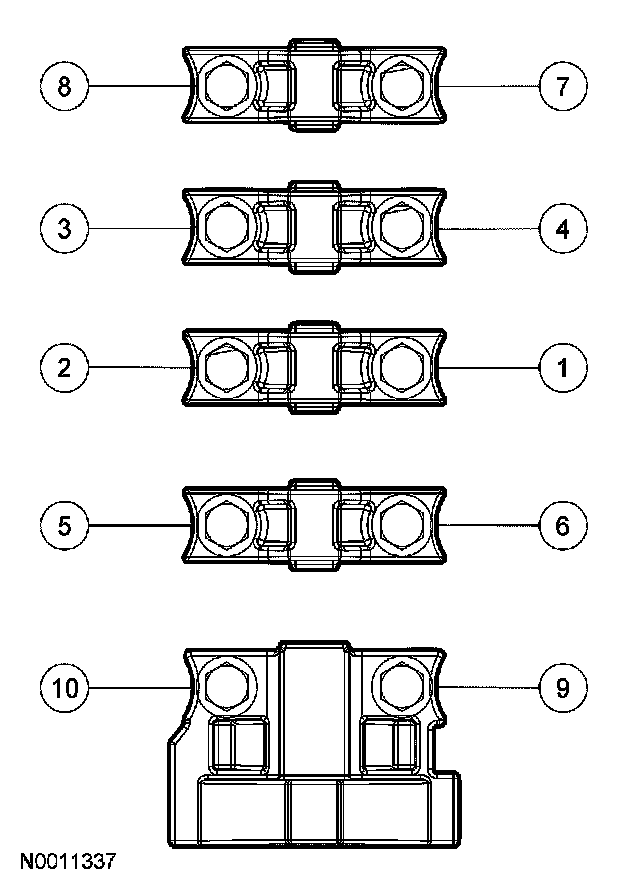

RH Camshaft Bearing Cap Bolts
Tighten to 10 Nm (89 inch lbs.).
Camshaft Phaser Sprocket Bolts
Using the special tool, tighten the LH and RH camshaft phaser sprocket bolts in 2 stages.
Stage 1: Tighten to 40 Nm (30 ft. lbs.).
Stage 2: Tighten an additional 90 degrees.
RH Cylinder Head
CAUTION: The cylinder head bolts must be discarded and new bolts installed. They are tighten-to-yield designed and cannot be reused.
Tighten the RH cylinder head bolts in 3 stages, in the sequence shown.
Stage 1: Tighten to 40 Nm (30 ft. lbs.).
Stage 2: Tighten an additional 90 degrees.
Stage 3: Tighten an additional 90 degrees.
LH Cylinder Head
CAUTION: The cylinder head bolts must be discarded and new bolts installed. They are tighten-to-yield designed and cannot be reused.
Tighten the LH cylinder head bolts in 3 stages, in the sequence shown.
Stage 1: Tighten to 40 Nm (30 ft. lbs.).
Stage 2: Tighten an additional 90 degrees.
Stage 3: Tighten an additional 90 degrees.

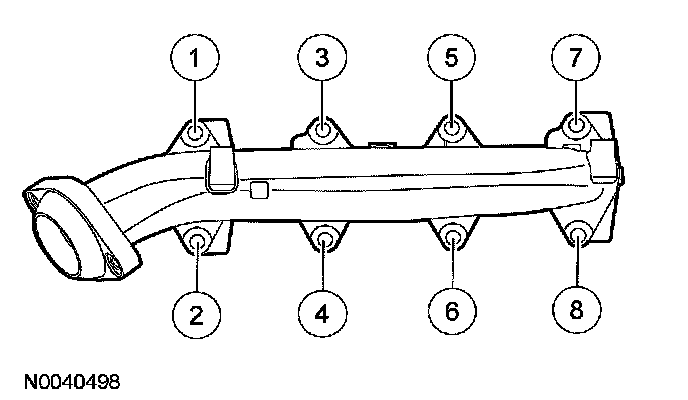

LH Exhaust Manifold
Tighten the nuts in the sequence shown.
Tighten to 25 Nm (18 ft. lbs.).

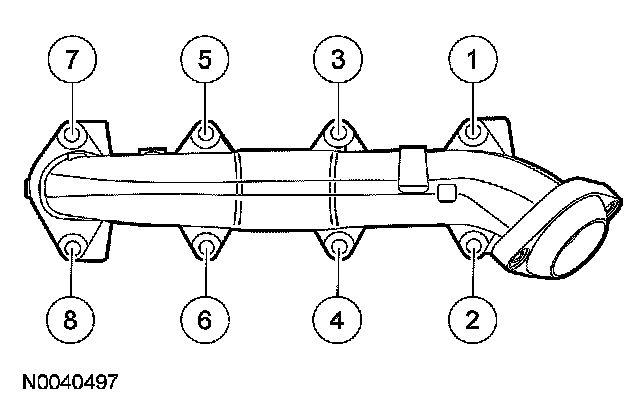

RH Exhaust Manifold
Tighten the nuts in the sequence shown.
Tighten to 25 Nm (18 ft. lbs.).
