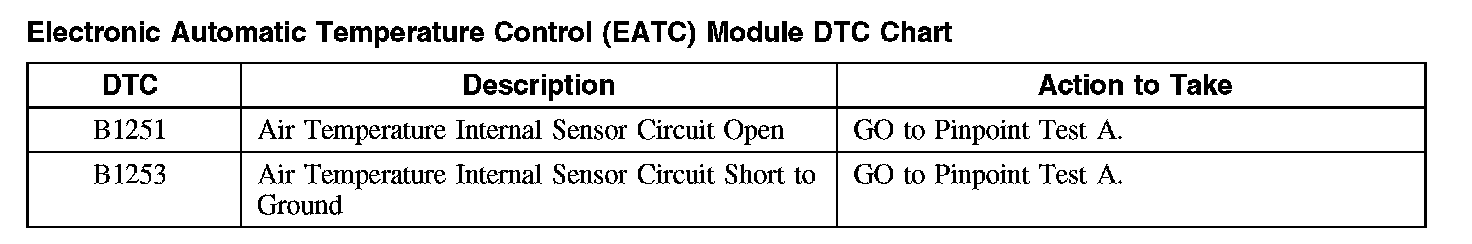

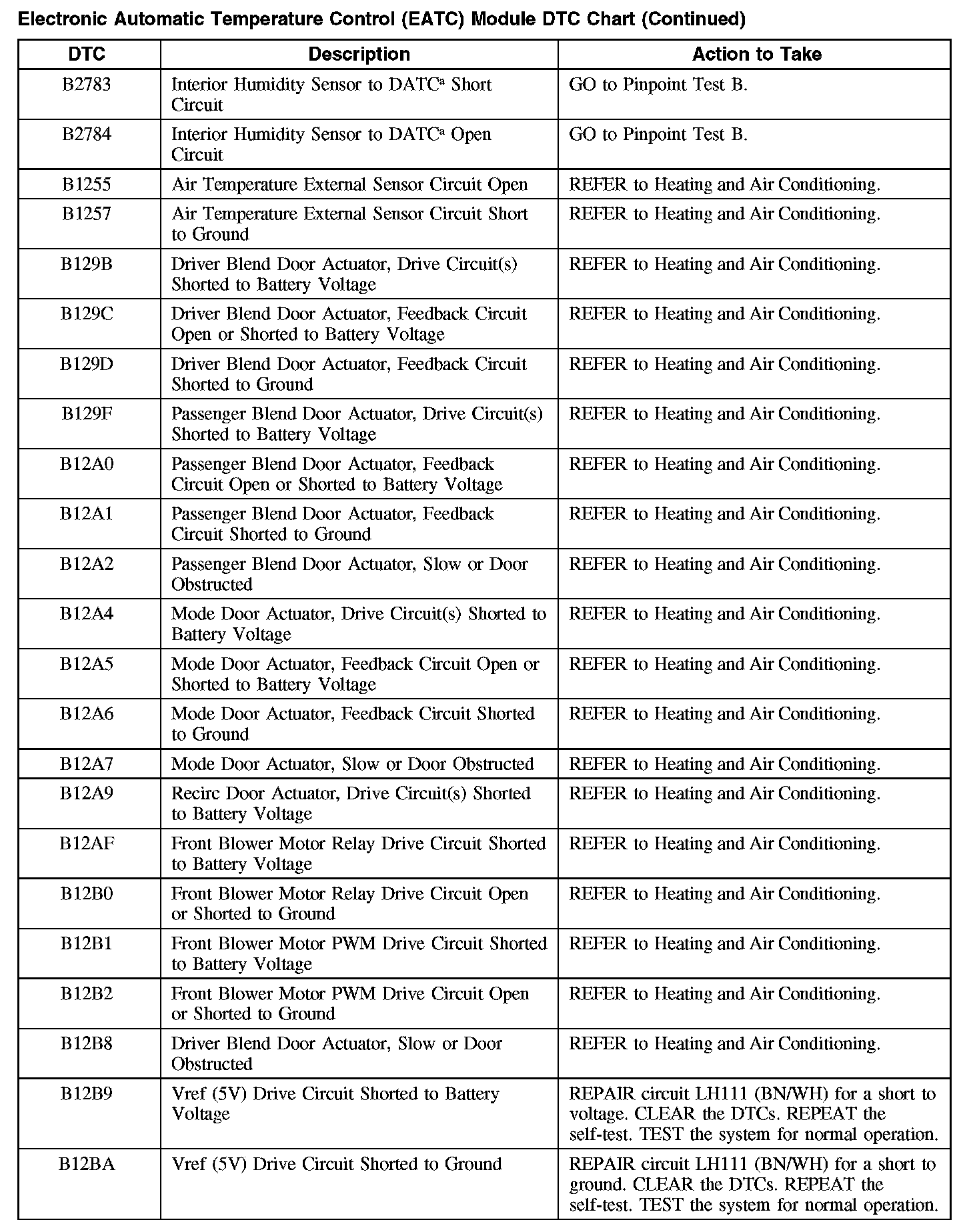

Electronic Automatic Temperature Control (EATC) Module DTC Chart
ELECTRONIC AUTOMATIC TEMPERATURE CONTROL (EATC) MODULE DTC CHARTNOTE: Some PCM DTCs may inhibit A/C operation. If any PCM DTCs are retrieved, diagnose those first. Refer to Computers and Control Systems.
B1251-B1253:
B12AF-B2784:
B297B-B2827 / U0140-U2051:
