PINPOINT TEST KB: FUEL PUMP DRIVER MODULE (FPDM)

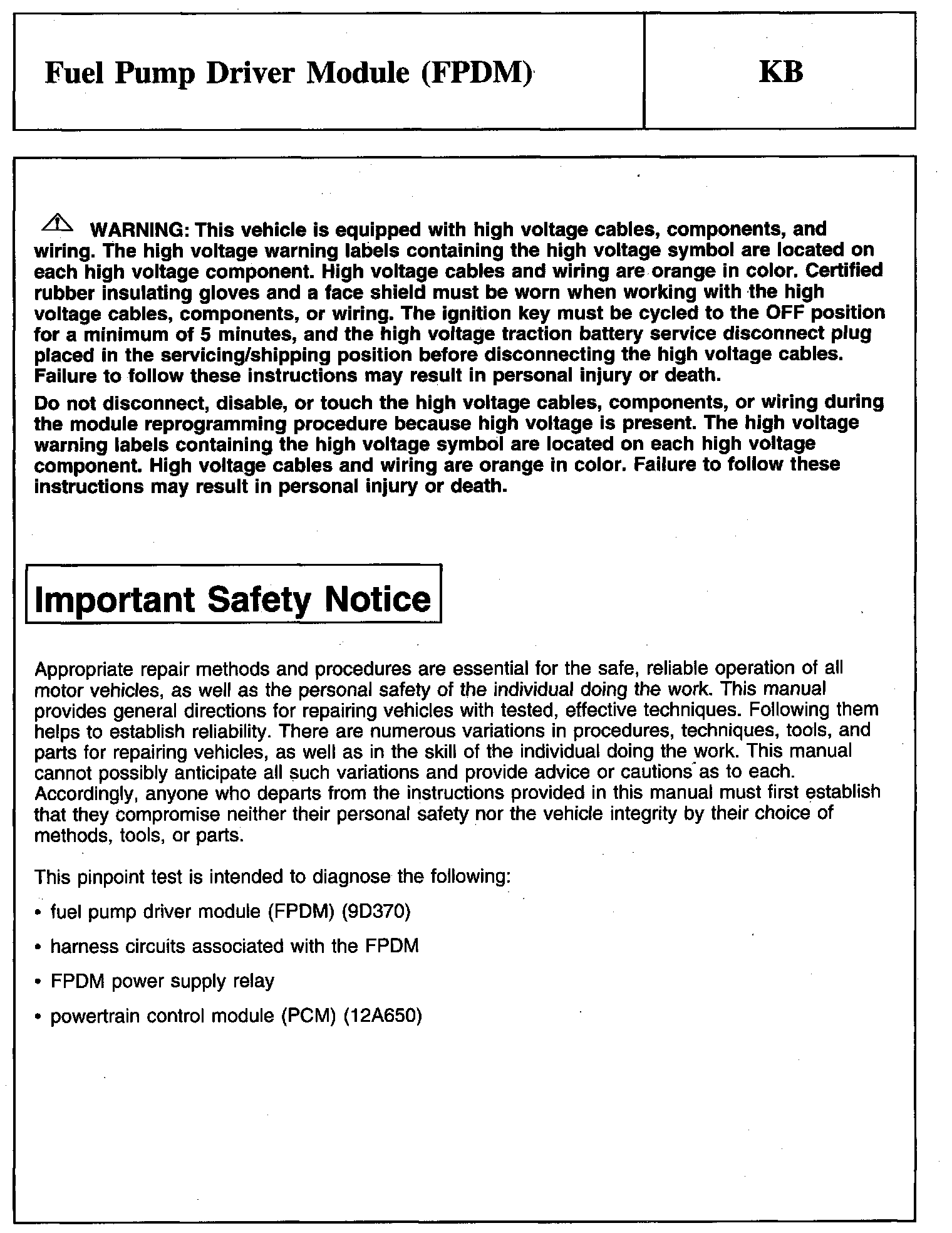

Warning And Important Safety Notice:






Fuel Pump Driver Module (FPDM) Connector And Inertia Fuel Shutoff (IFS) Switch Connector:

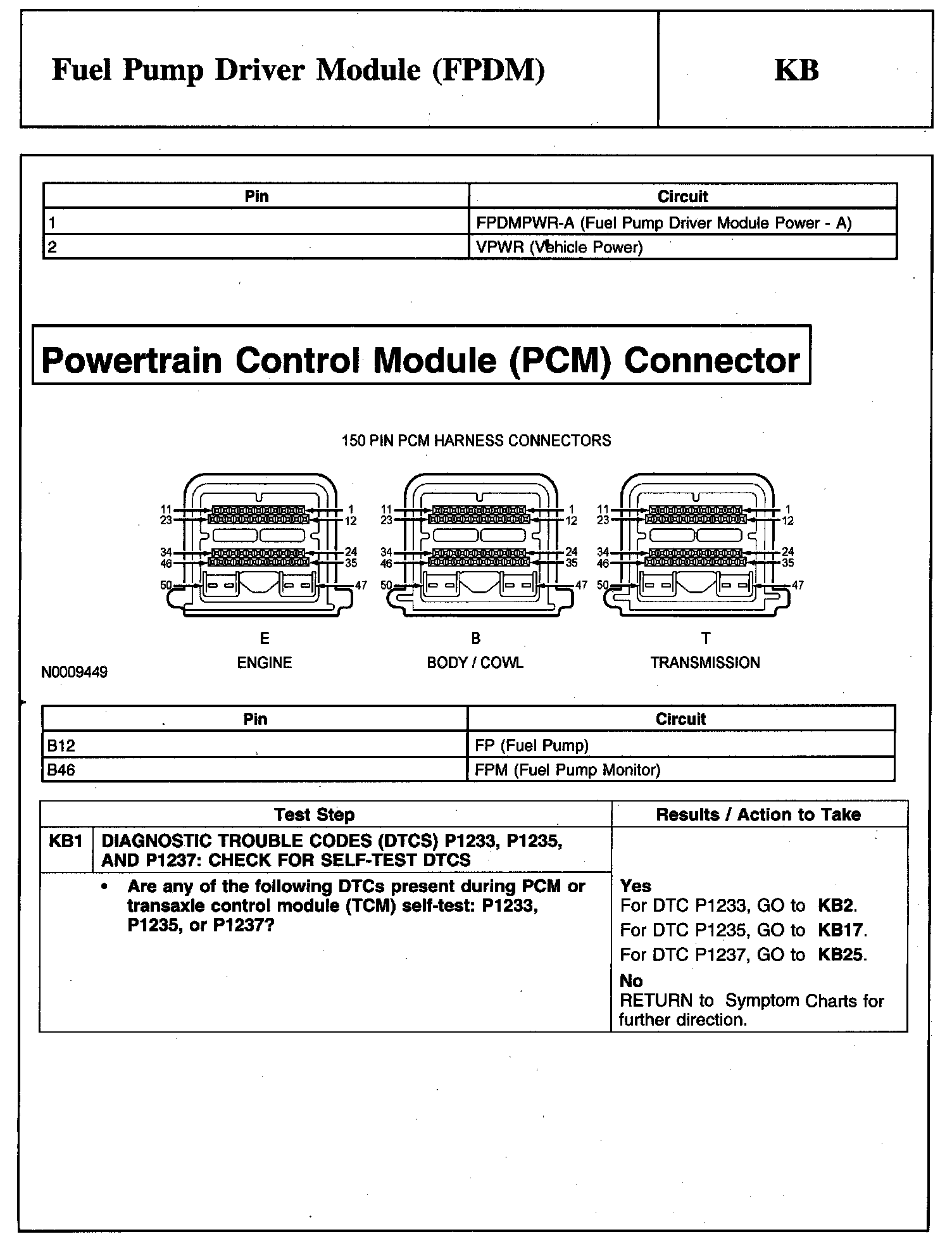

KB1:

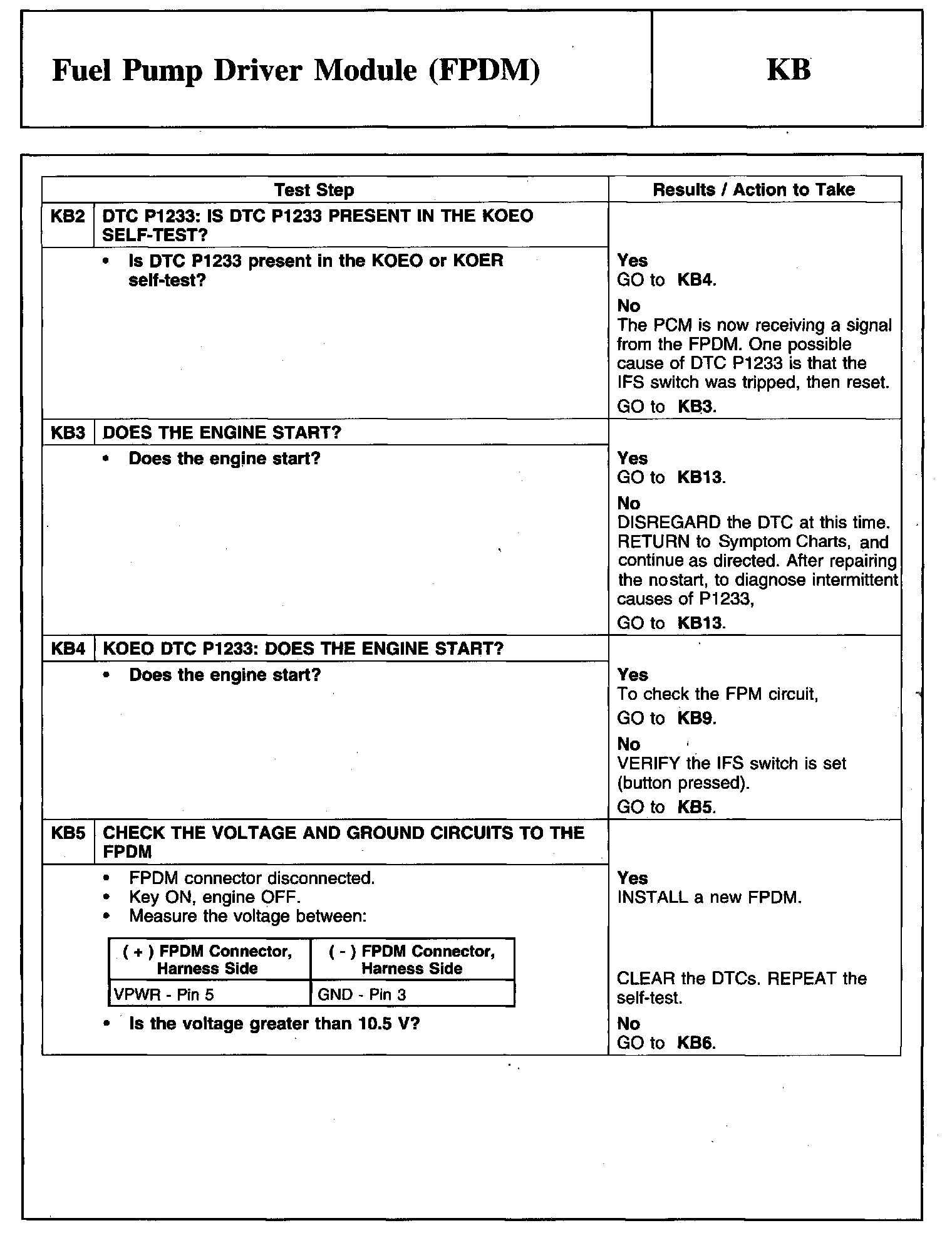

KB2-KB5:

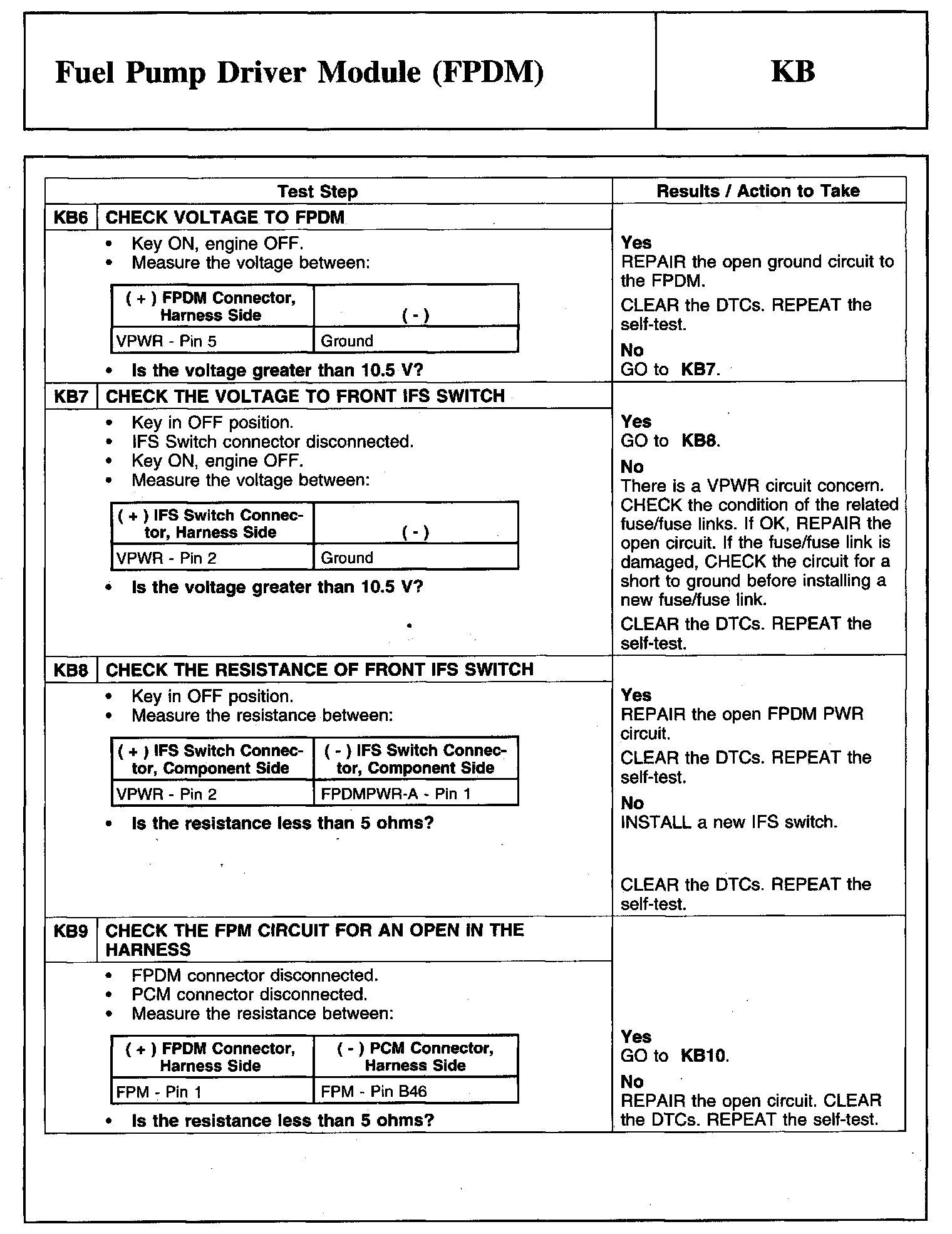

KB6-KB9:

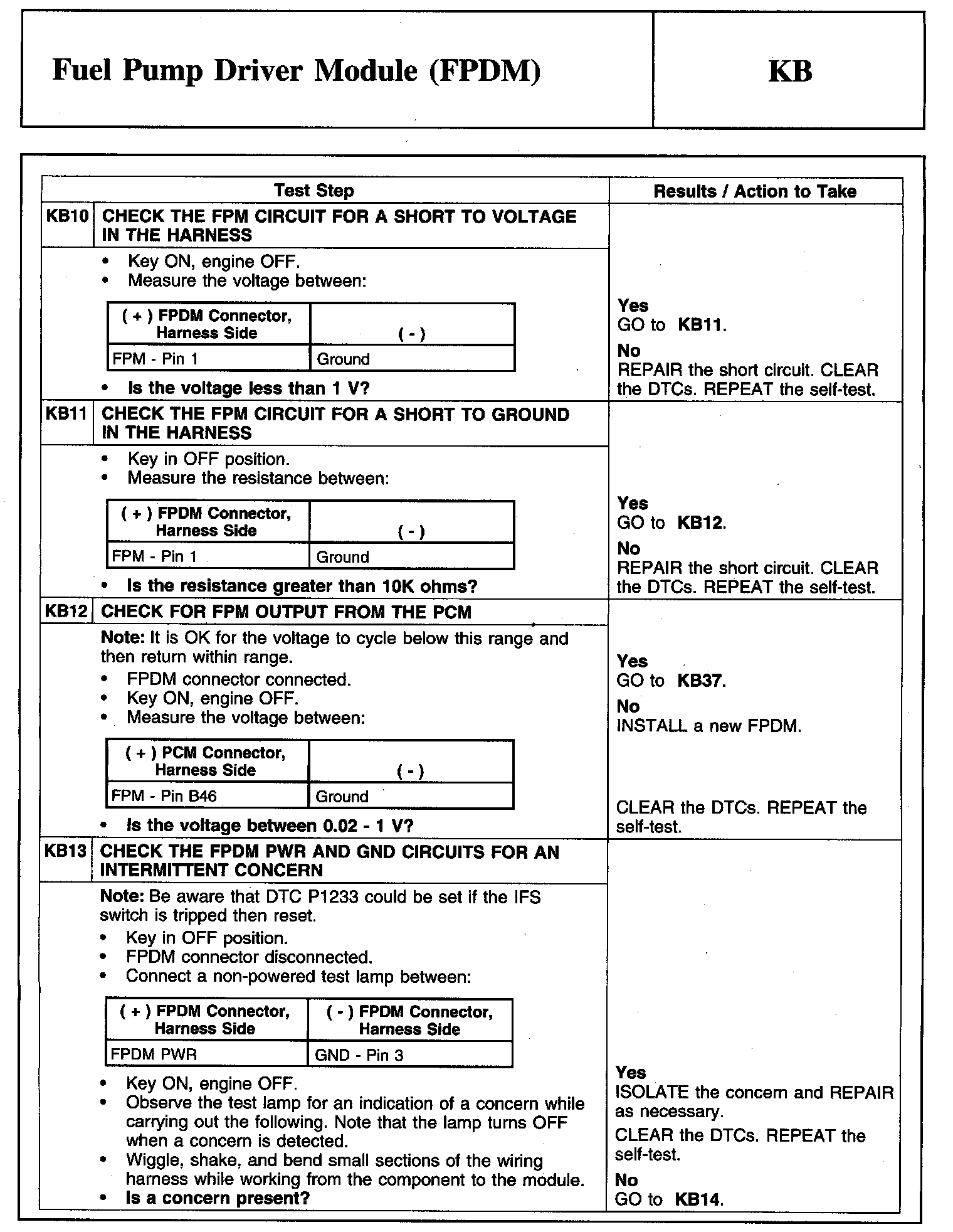

KB10-KB13:

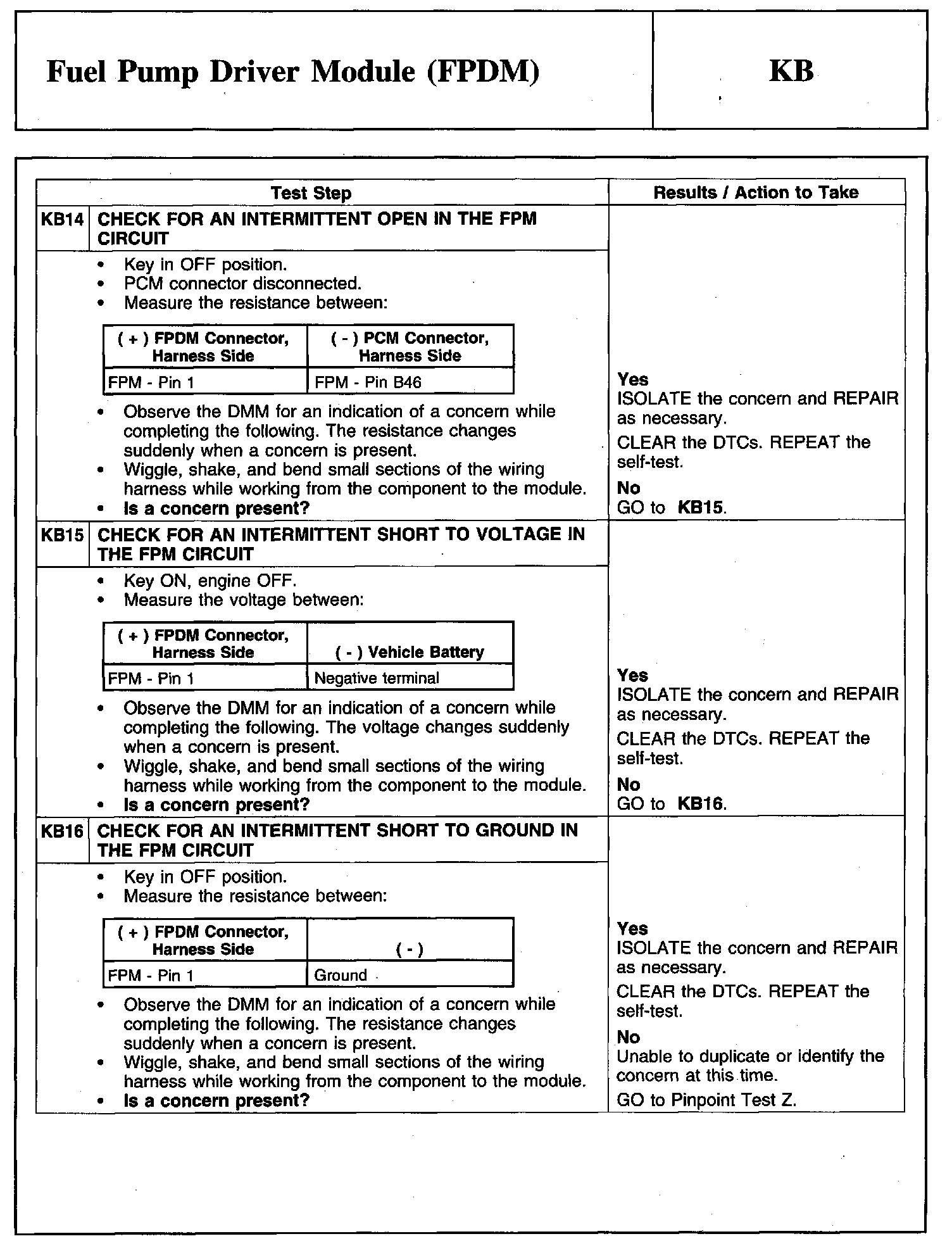

KB14-KB16:

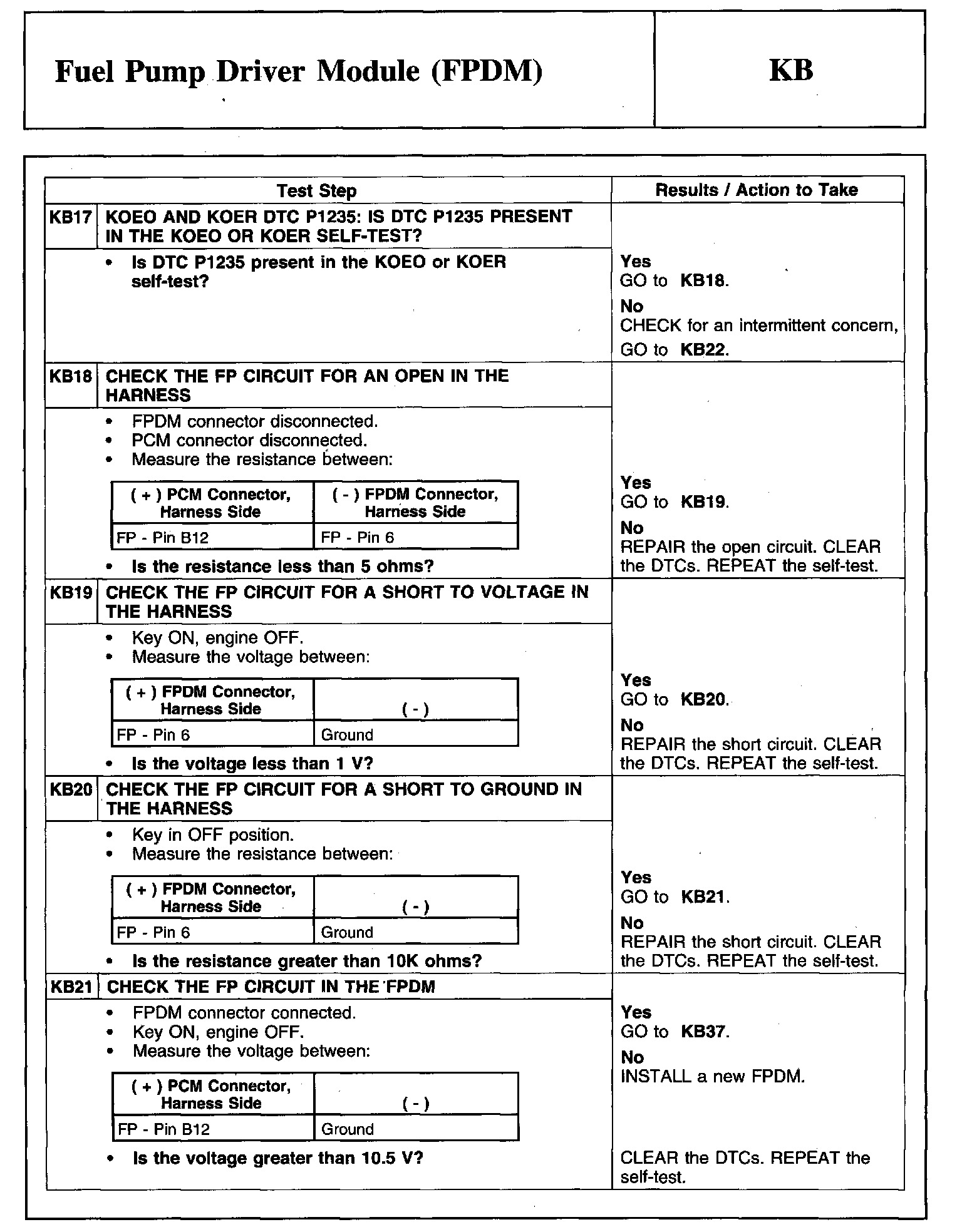

KB17-KB21:

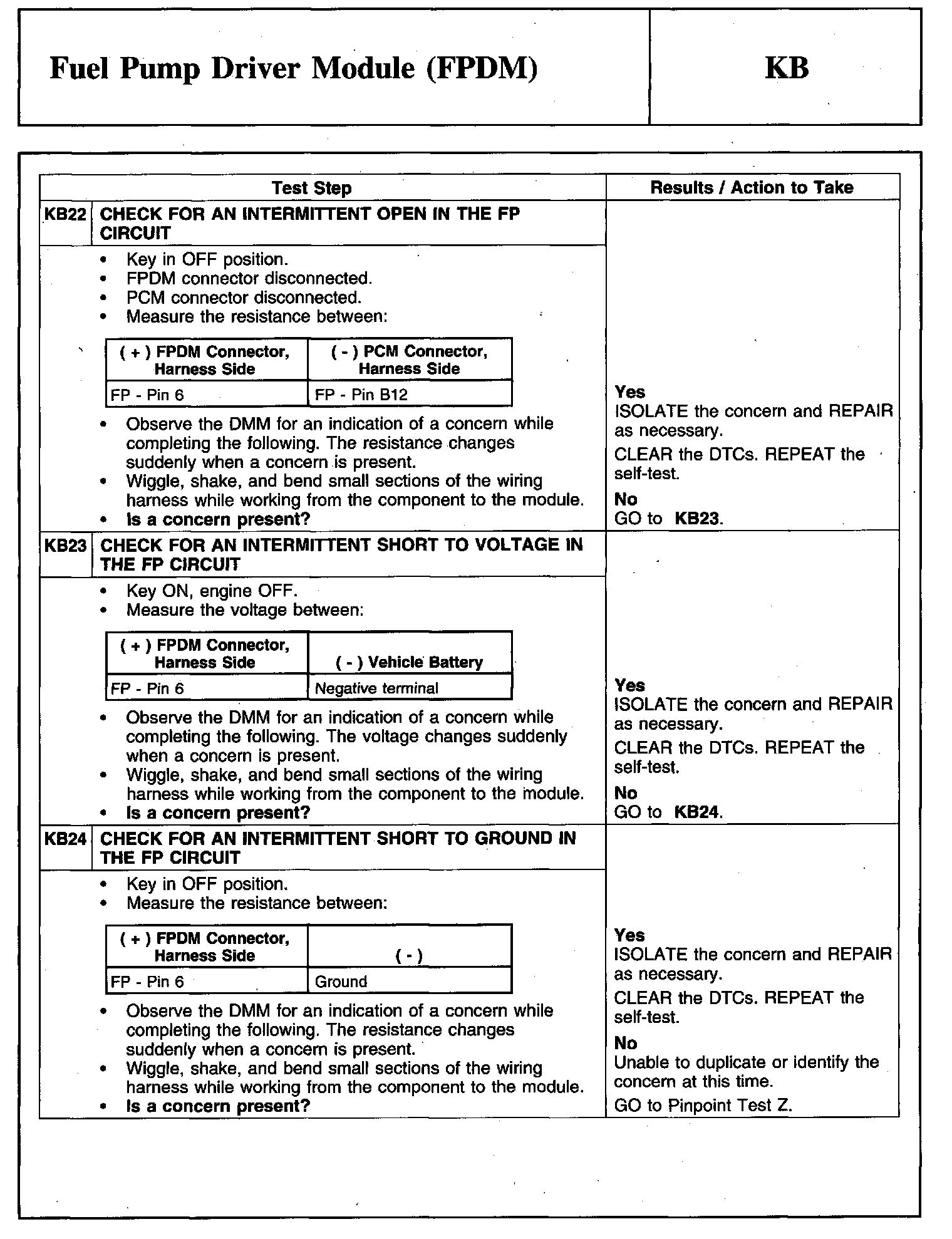

KB22-KB24:

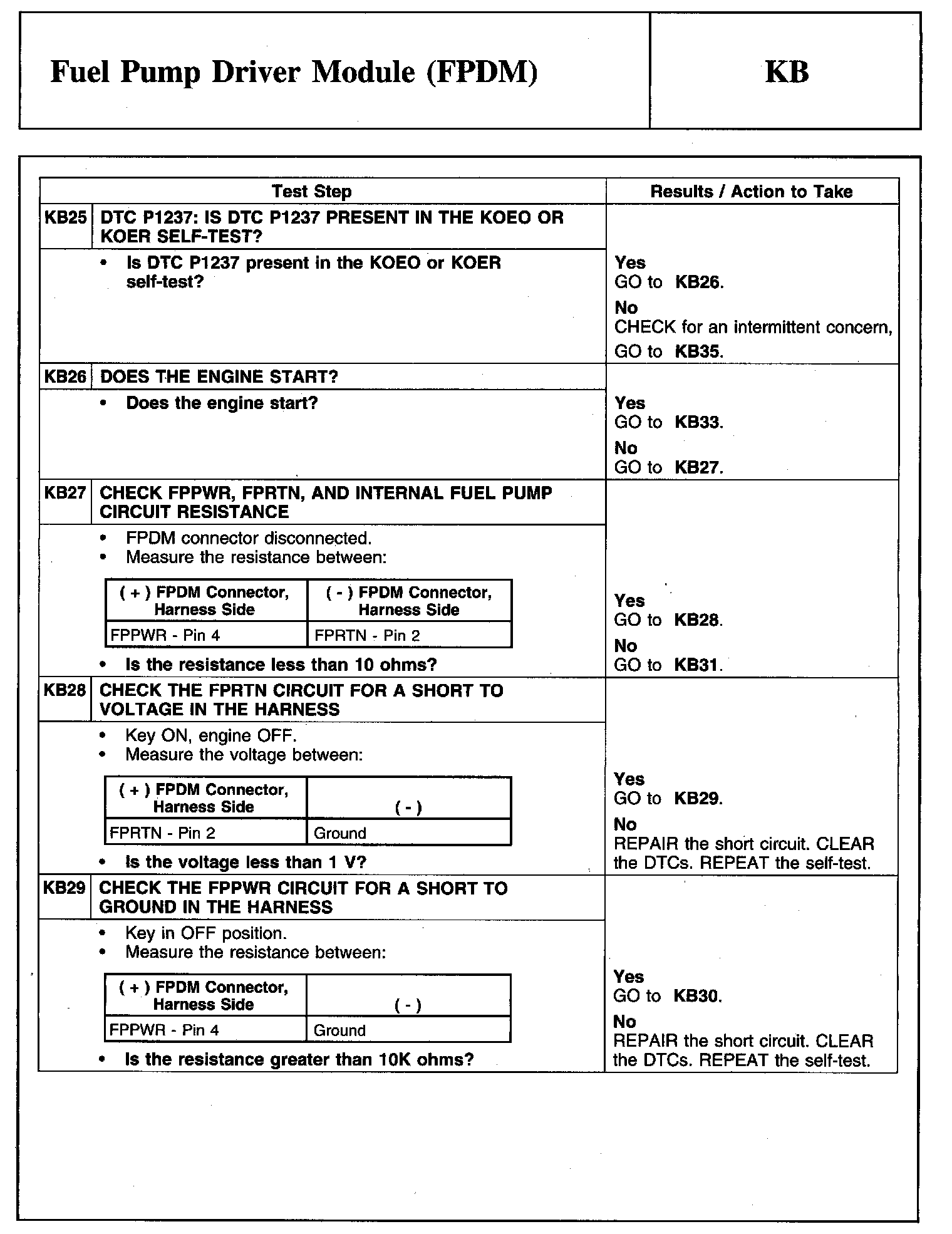

KB25-KB29:

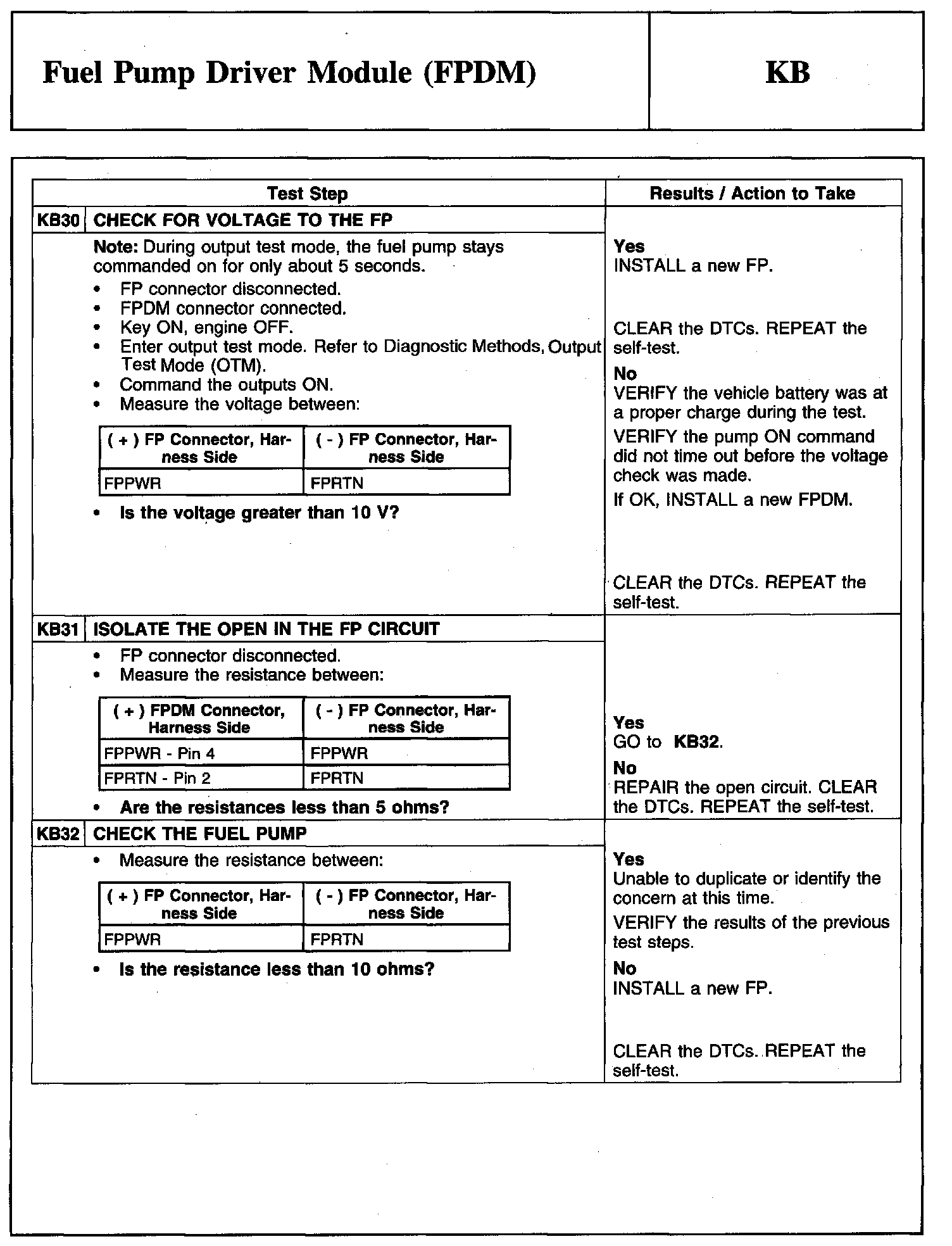

KB30-KB32:

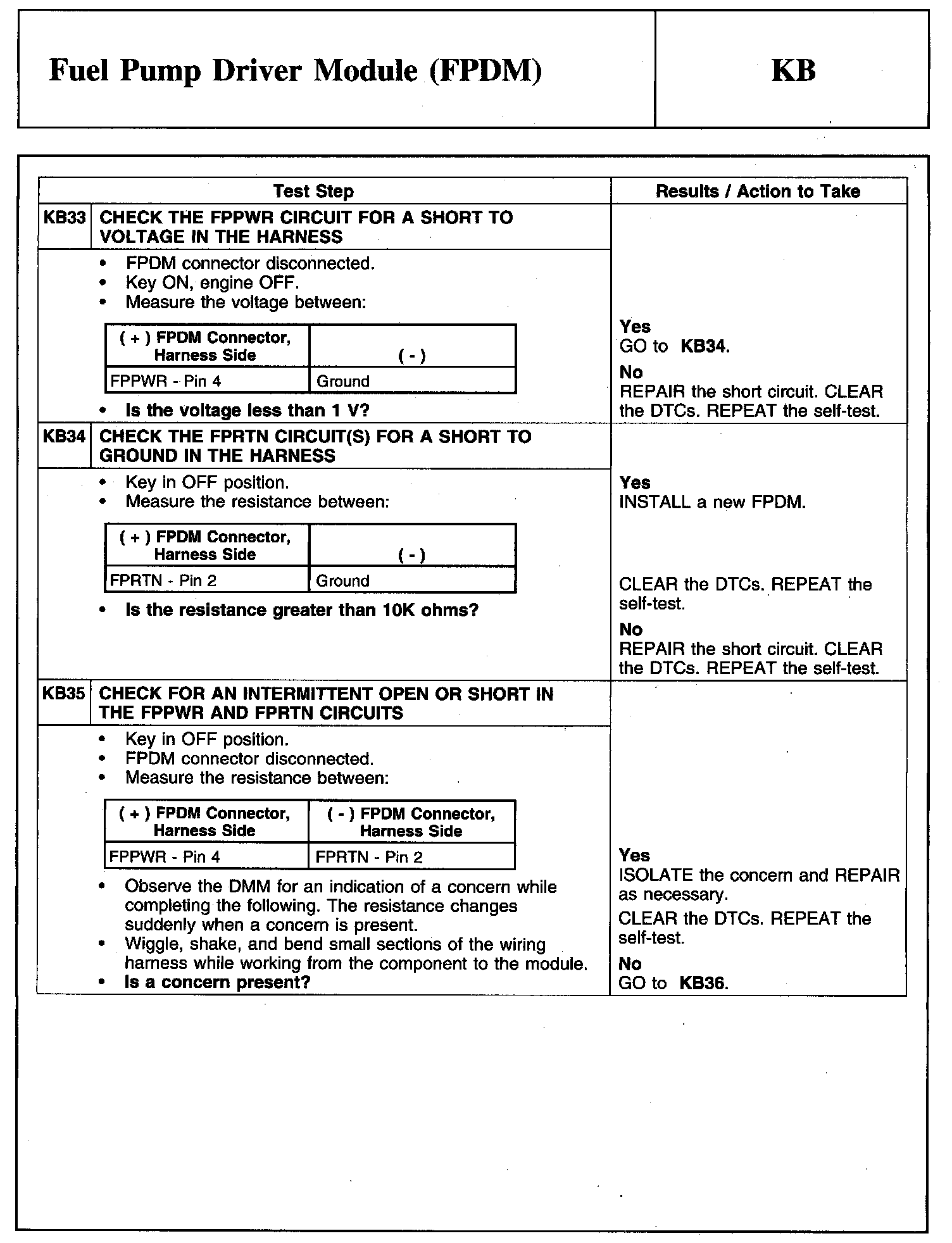

KB33-KB35:

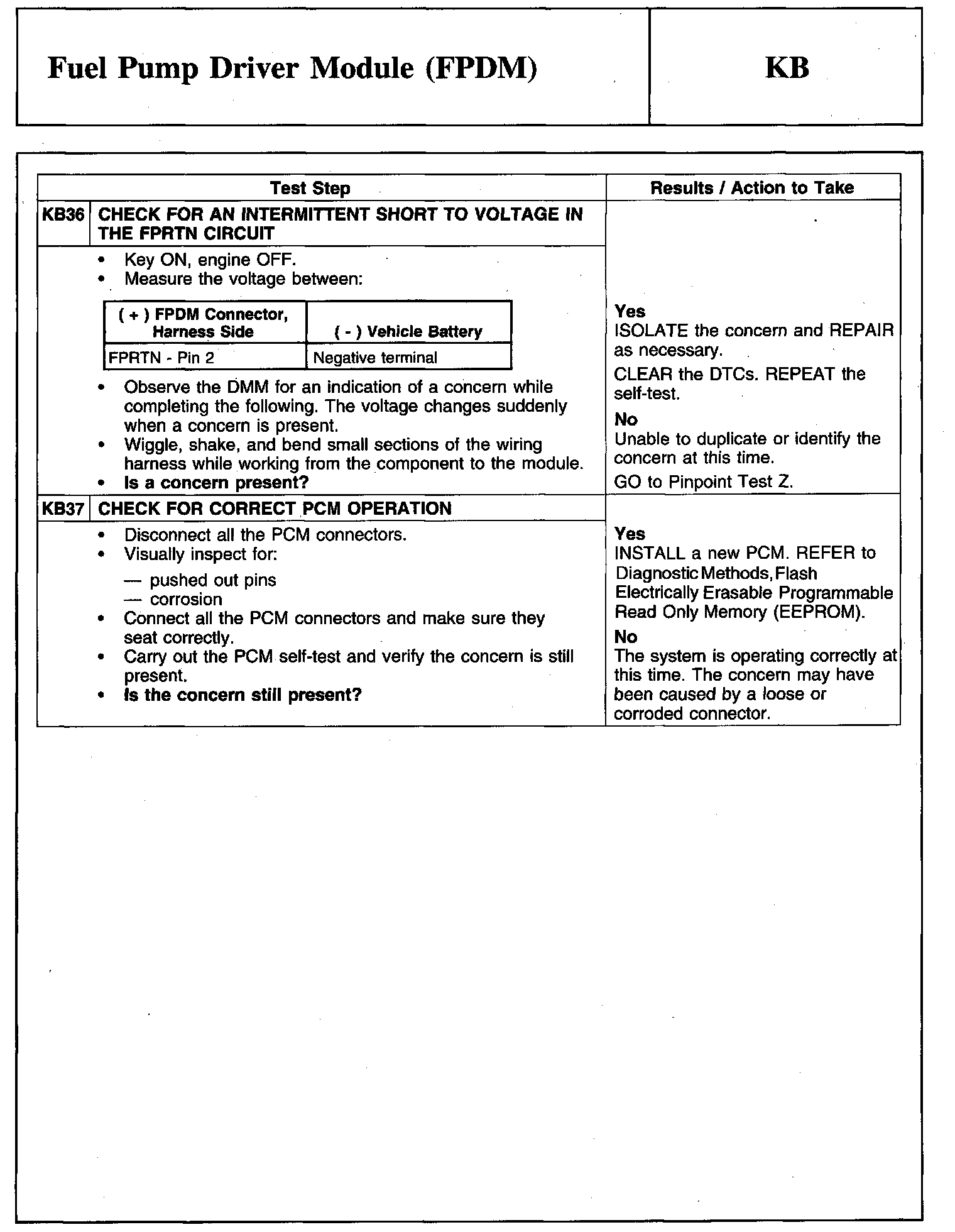

KB36-KB37:
