Tests QA: Unable To Activate Self-Test/Network Communication Error/DTC P1001

PINPOINT TEST QA: UNABLE TO ACTIVATE SELF-TEST/NETWORK COMMUNICATION ERROR/DTC P1001

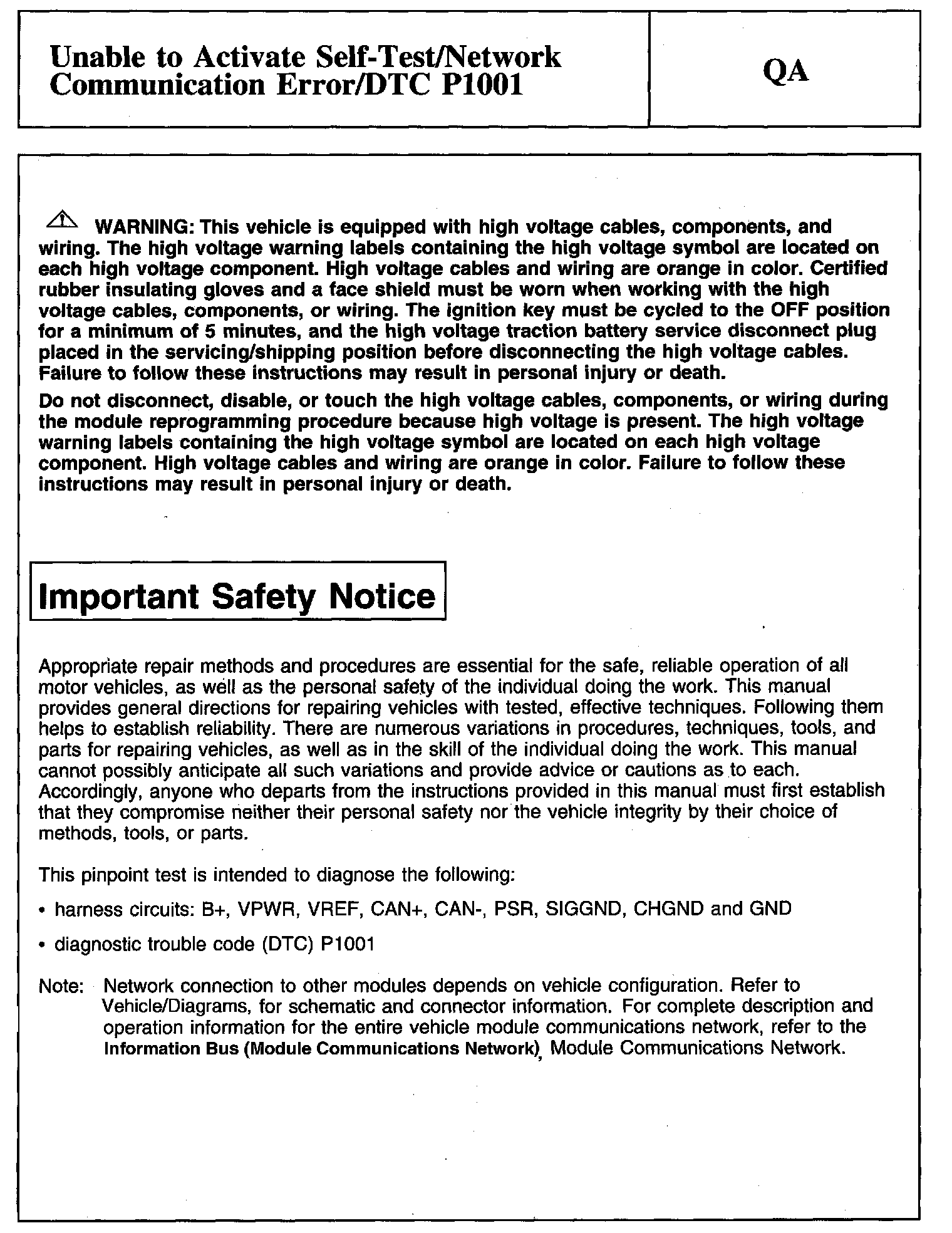

Warning And Important Safety Notice:

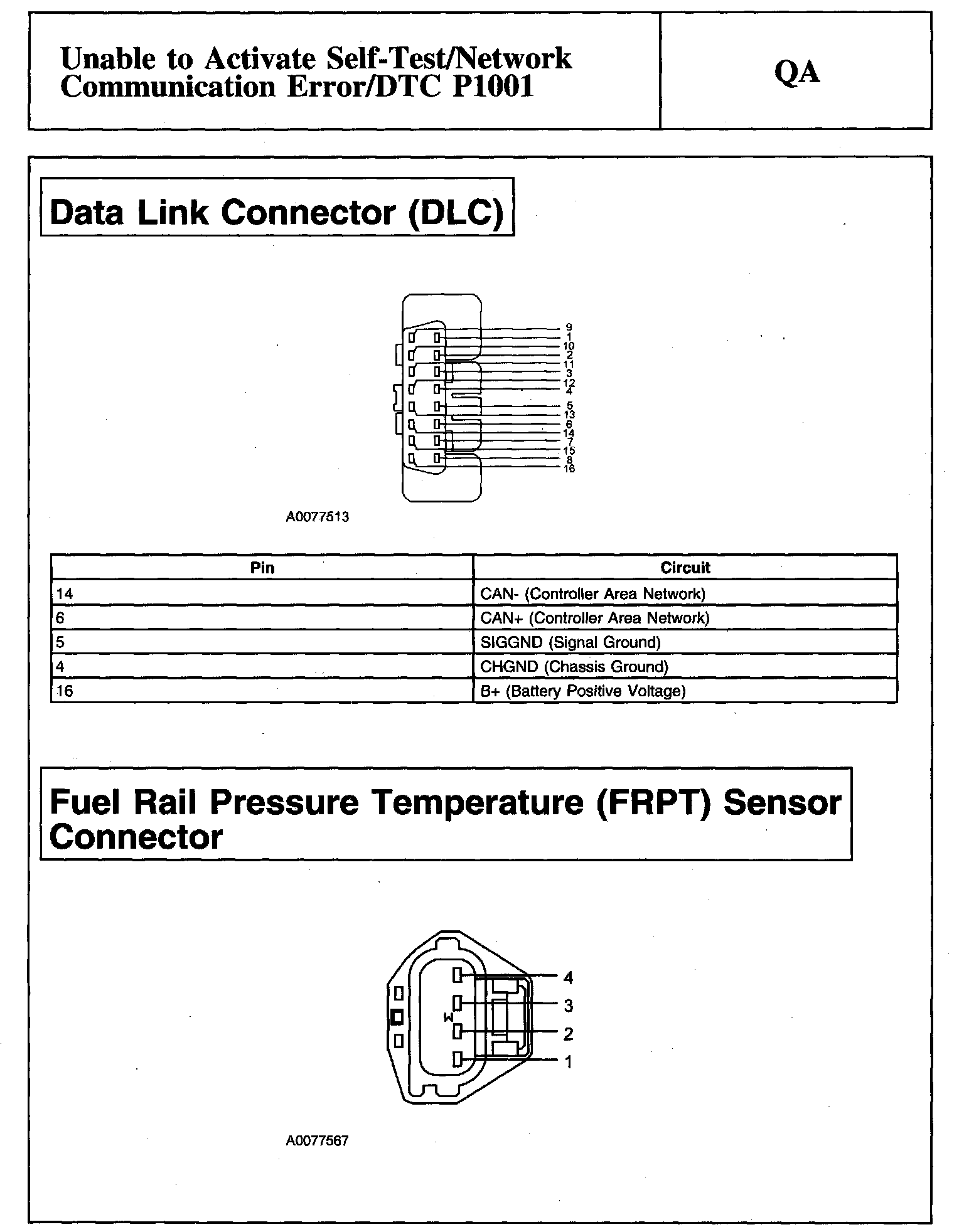

Data Link Connector (DLC) And Fuel Rail Pressure Temperature (FRPT) Sensor Connector:

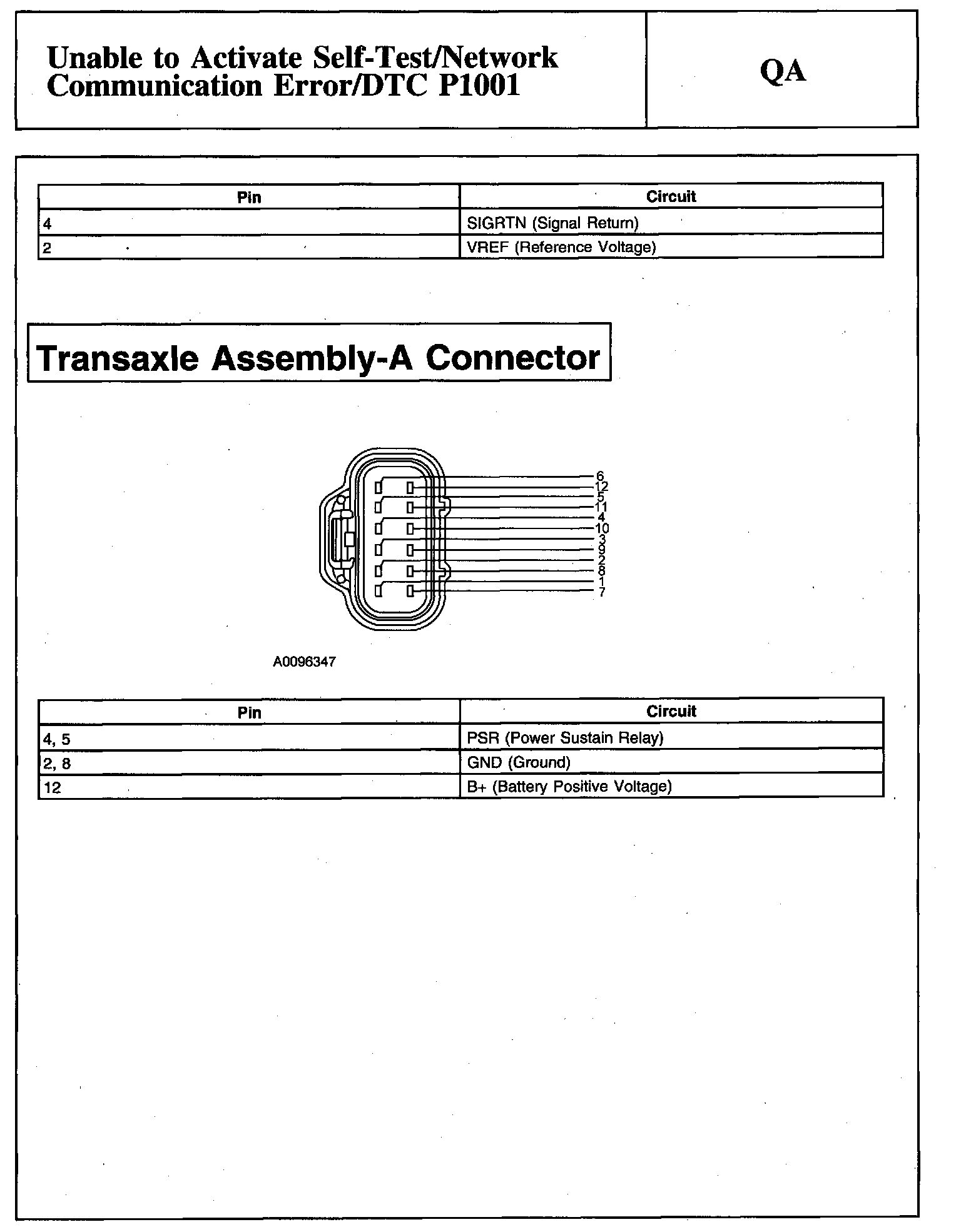

Fuel Rail Pressure Temperature (FRPT) Sensor Connector And Transaxle Assembly-A Connector:

Tests QA: Unable To Activate Self-Test/Network Communication Error/DTC P1001

Warning And Important Safety Notice:

Data Link Connector (DLC) And Fuel Rail Pressure Temperature (FRPT) Sensor Connector:

Fuel Rail Pressure Temperature (FRPT) Sensor Connector And Transaxle Assembly-A Connector:

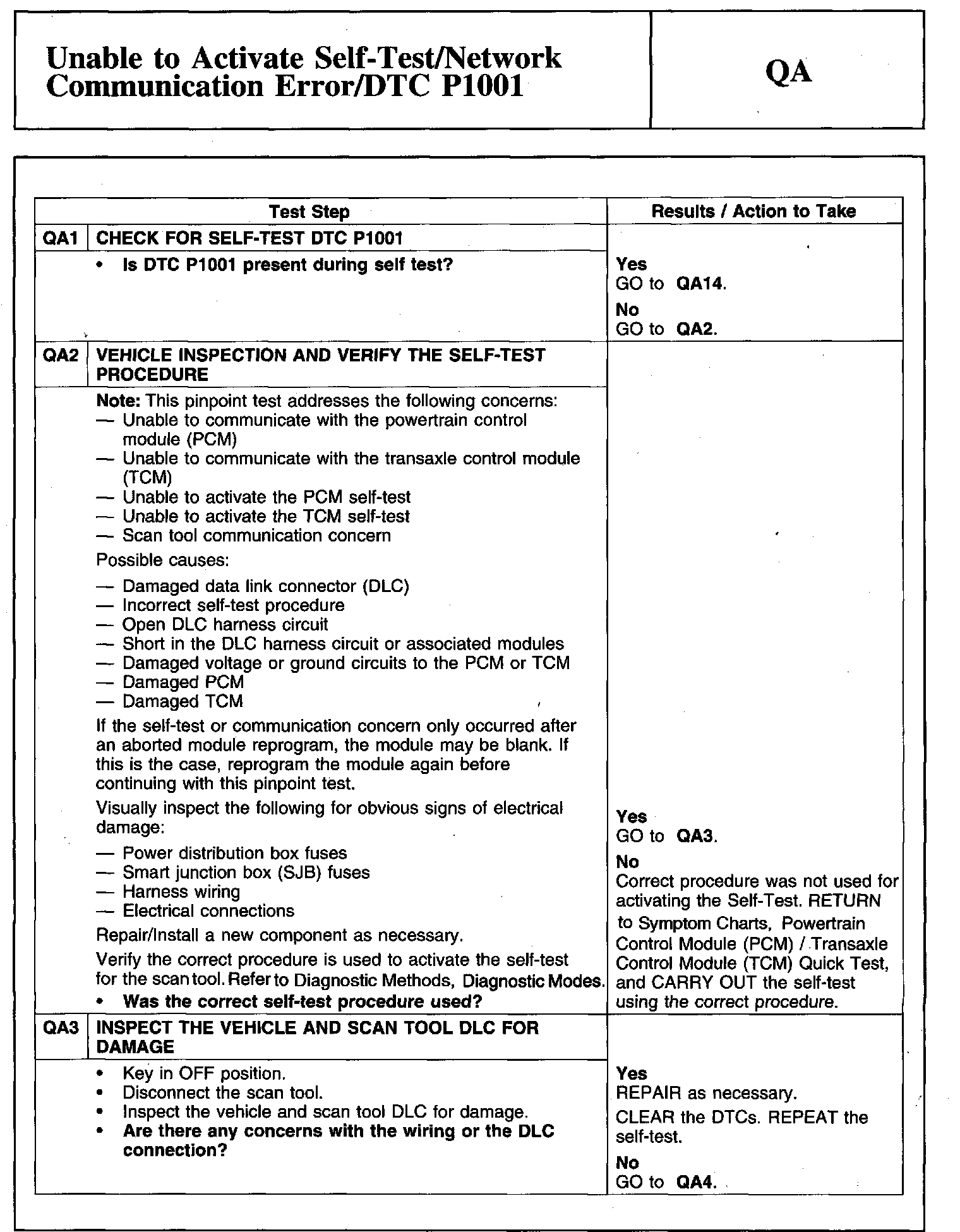

QA1-QA3:

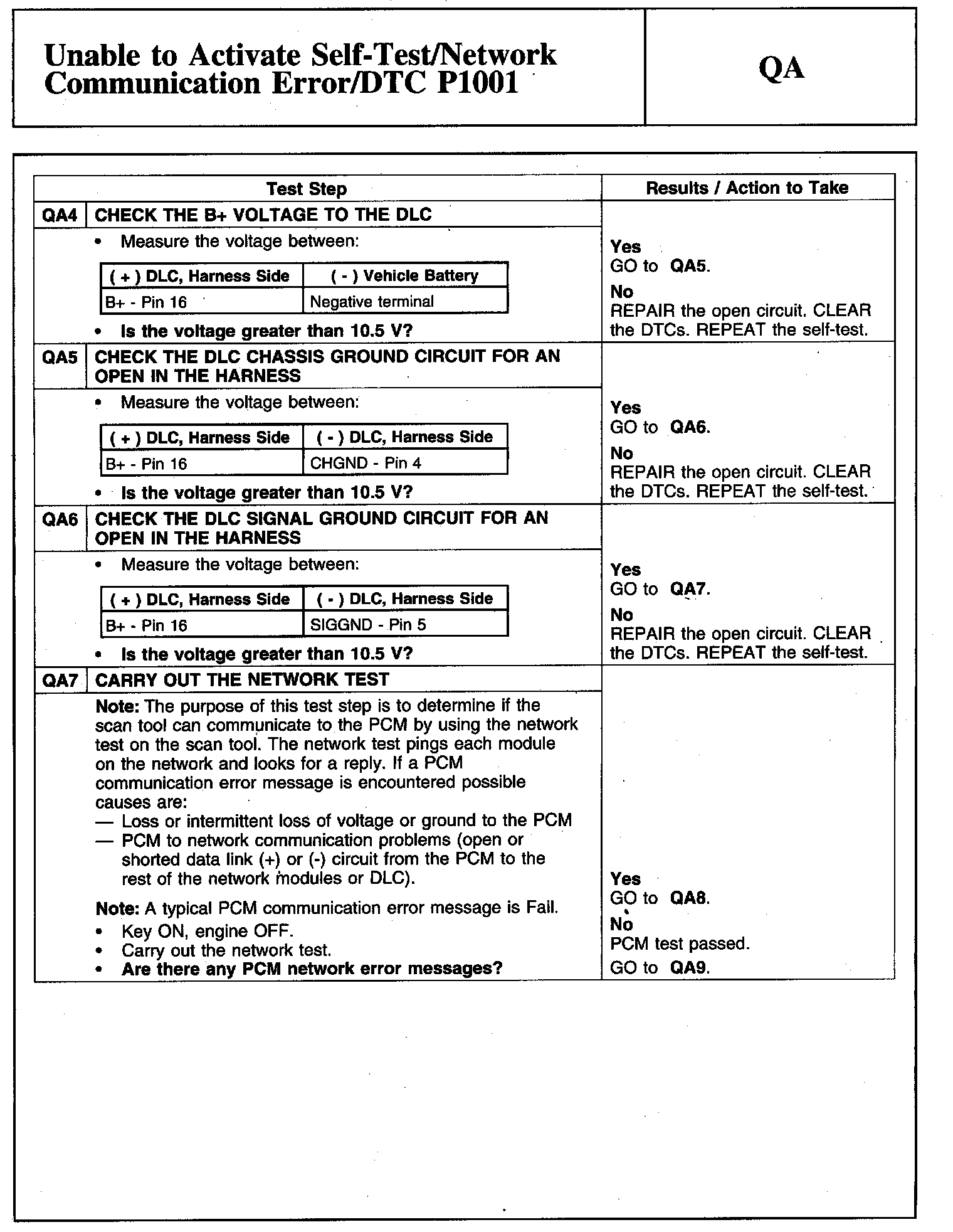

QA4-QA7:

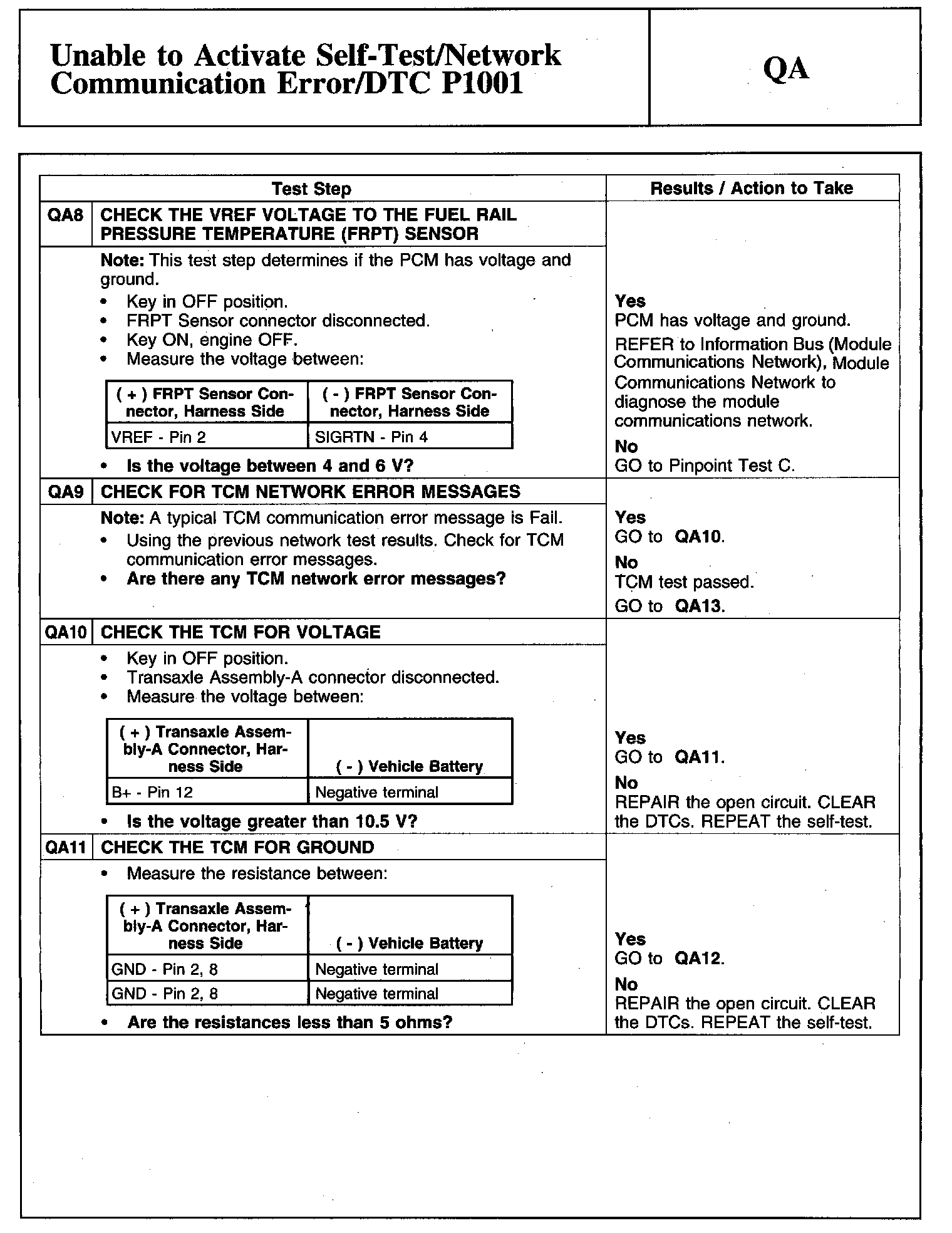

QA8-QA11:

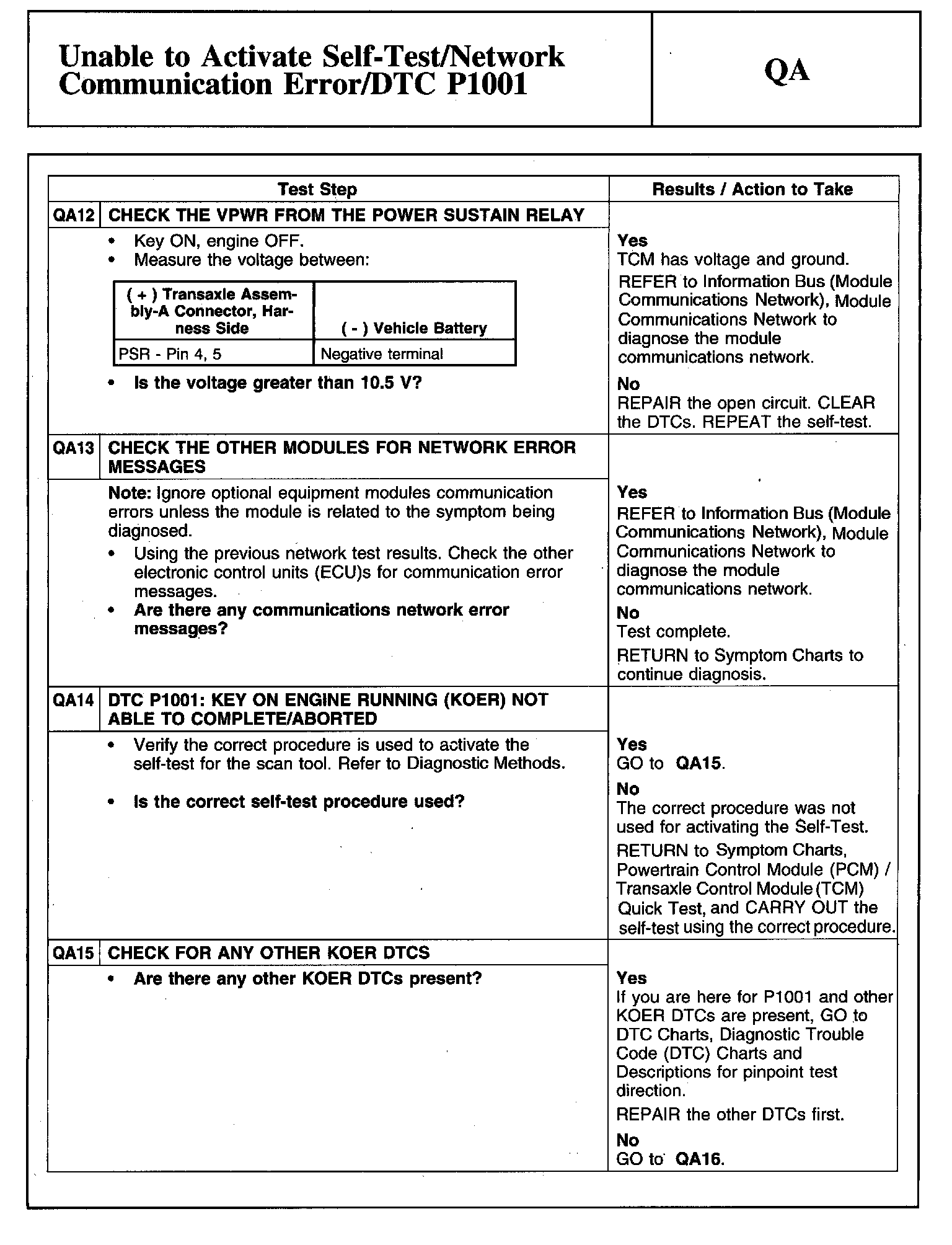

QA12-QA15:

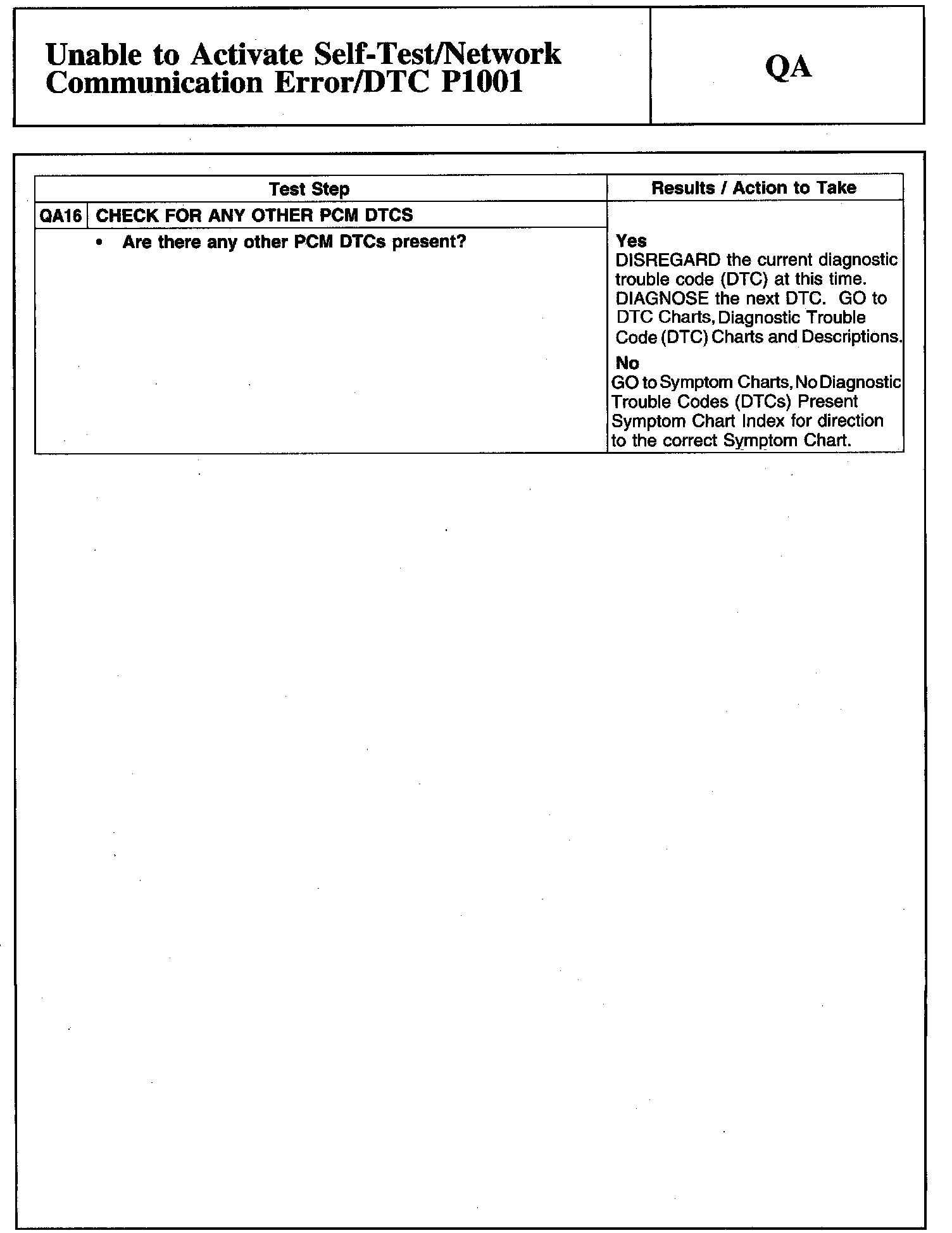

QA16:
