Oil Filter: Service and Repair

Variable Camshaft Timing (VCT) System Oil Filter

Removal

1. Remove the camshaft phaser and sprocket. For additional information, refer to Camshaft Phaser and Sprocket Camshaft Phaser and Sprocket.

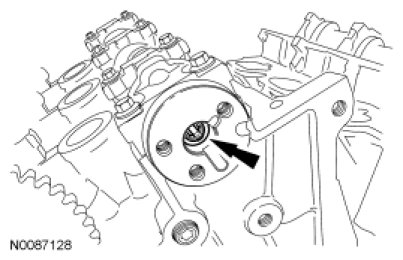

2. NOTE: RH Variable Camshaft Timing (VCT) system oil filter shown, LH similar.

Remove and discard the VCT system oil filter from the camshaft.





Installation

1. NOTE: RH VCT system oil filter shown, LH similar.

Install the new VCT system oil filter in the camshaft.

2. Install the camshaft phaser and sprocket. For additional information, refer to Camshaft Phaser and Sprocket Camshaft Phaser and Sprocket.
