Fluid - M/T: Service and Repair

Transaxle Draining and Filling





1. With the vehicle in NEUTRAL, position it on a hoist.

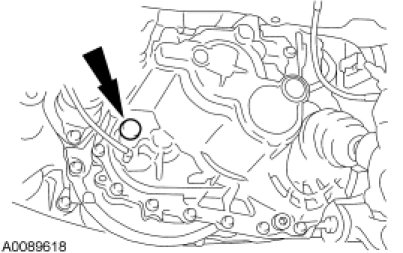

2. Remove the drain plug and drain the fluid.





3. NOTE: Use a new gasket and apply sealant on the drain plug.

Install the drain plug.

- Tighten to 35 Nm (26 lb-ft).

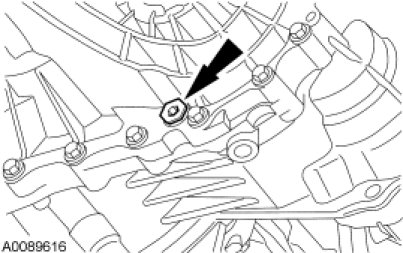

4. Remove the fill level inspection plug.

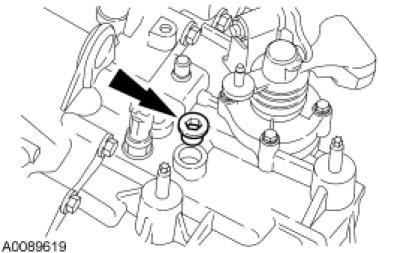

5. Remove the transaxle fill plug.

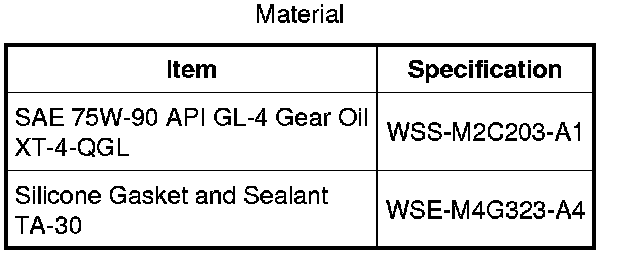

6. Fill the transmission with gear oil until level with the fill level inspection plug hole.

7. NOTE: Use a new gasket and apply sealant on the fill plug.

Install the transaxle fill plug.

- Tighten to 35 Nm (26 lb-ft).





8. NOTE: Use a new gasket and apply sealant on the fill level inspection plug.

Install the fill level inspection plug.

- Tighten to 35 Nm (26 lb-ft).
