Engine Temperature Sensor: Service and Repair

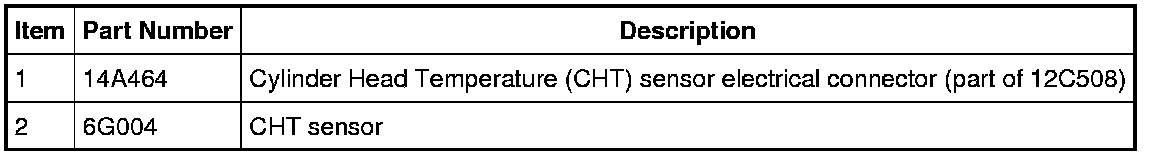

Cylinder Head Temperature (CHT) SensorNOTE: If the cylinder head is being replaced, the CHT must be replaced.
1.

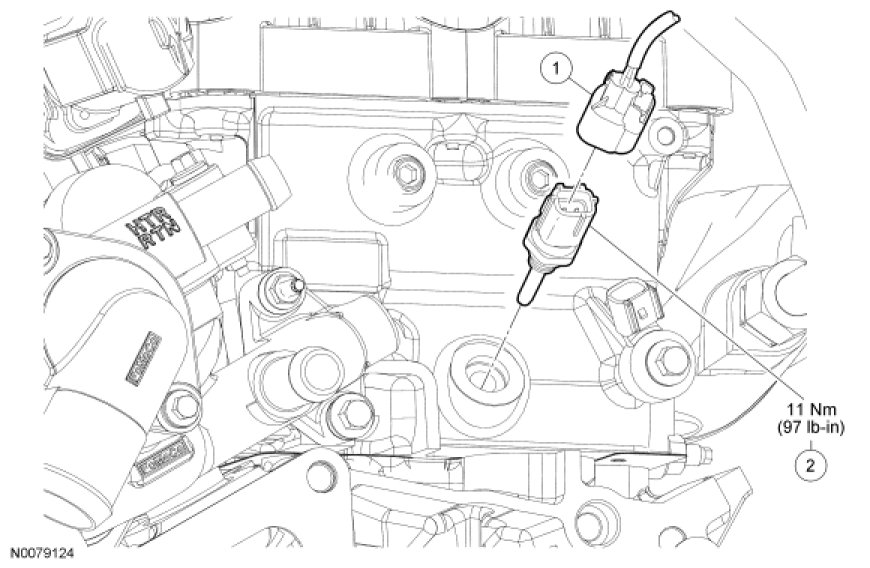

Disconnect the Cylinder Head Temperature (CHT) sensor electrical connector.
2.
Remove the CHT sensor.
-
To install, tighten to 11 Nm (97 lb-in).
3.
To install, reverse the removal procedure.
