Overhaul Specs

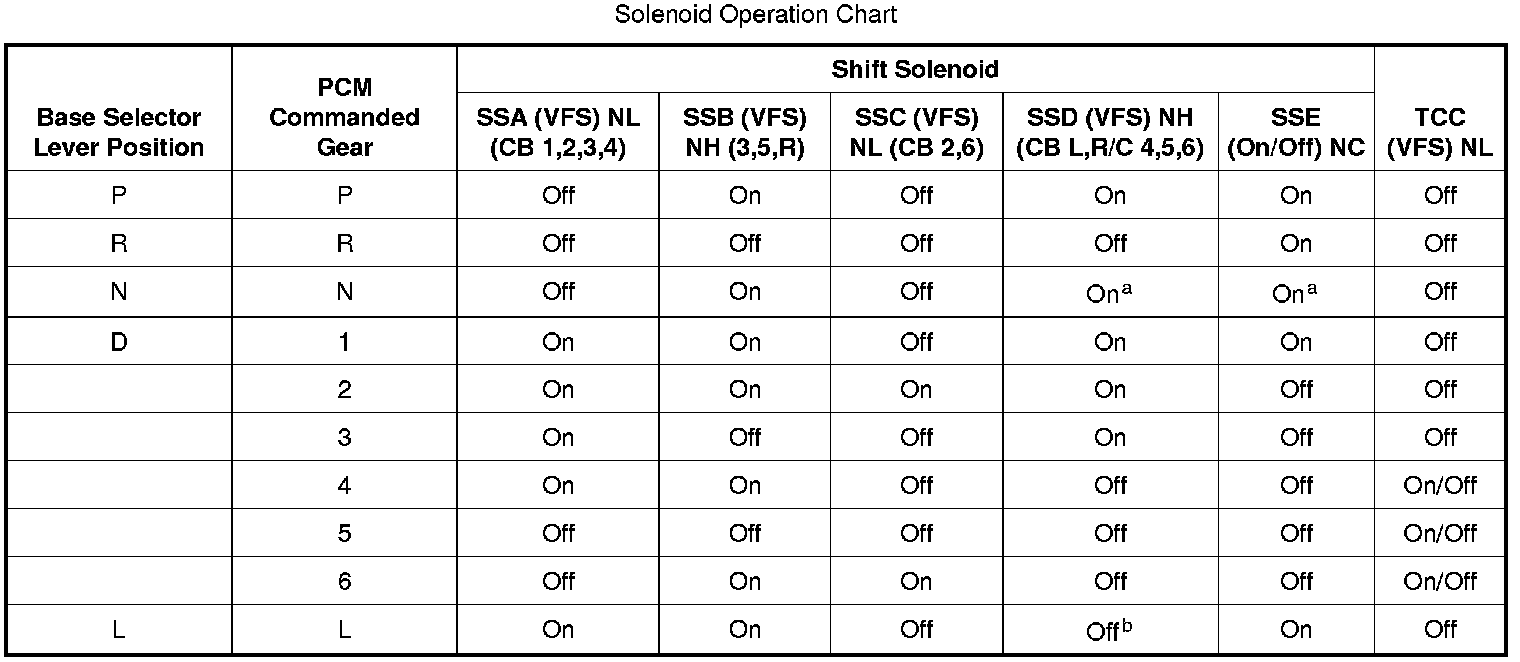

Solenoid Operation Chart:
a Solenoid state will change if vehicle is moving forward with the selector lever in the NEUTRAL position.
CB = Clutch brake
NC = Normally closed
NH = Normally high
NL = Normally low

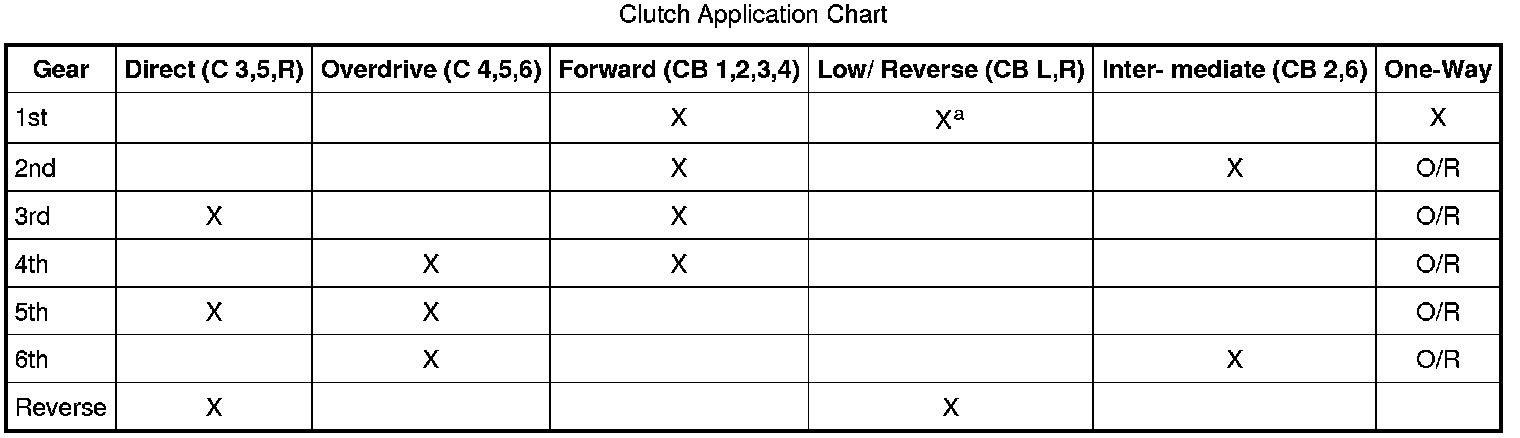

Clutch Application Chart:
a Turns off above 6 km/h (4 mph).
CB = Clutch brake
O/R = Overrunning

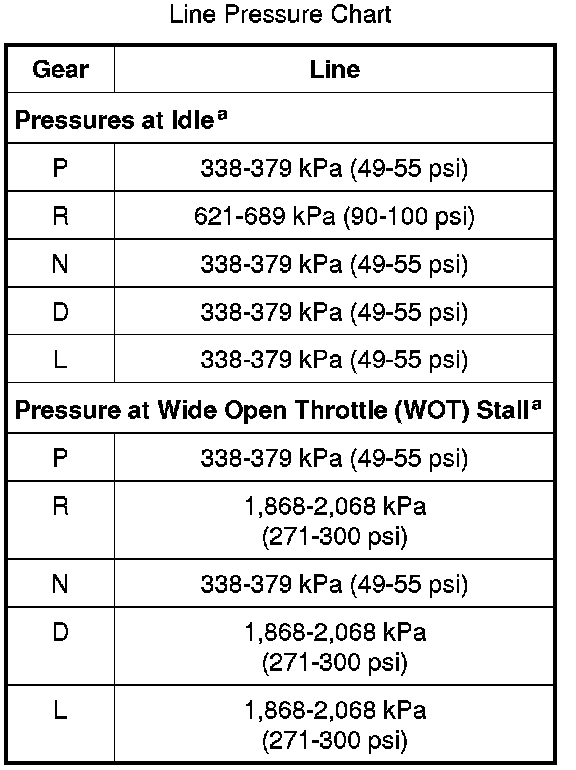

Line Pressure Chart:
a All pressures are approximate.

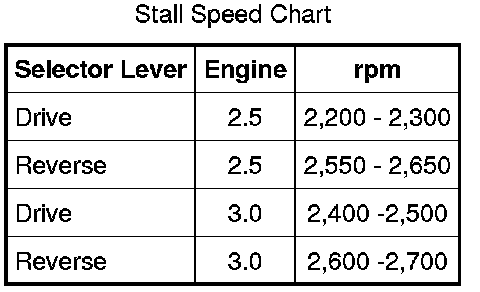

Stall Speed Chart:

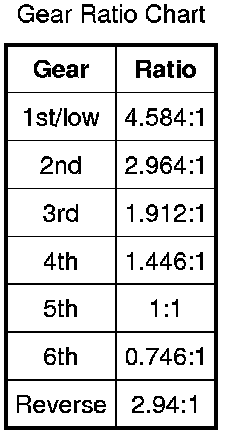

Gear Ratio Chart:

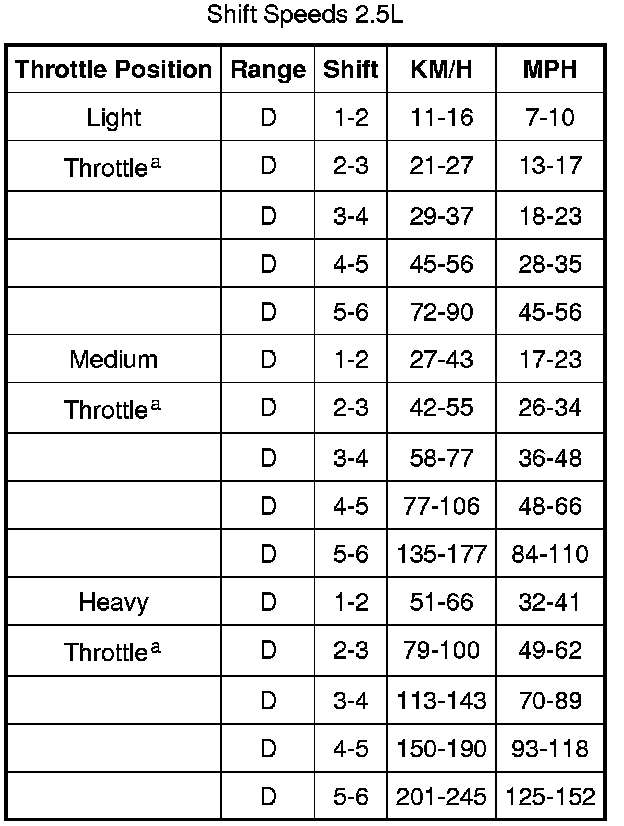

Shift Speeds 2.5L:
a Do not exceed the speed limit.

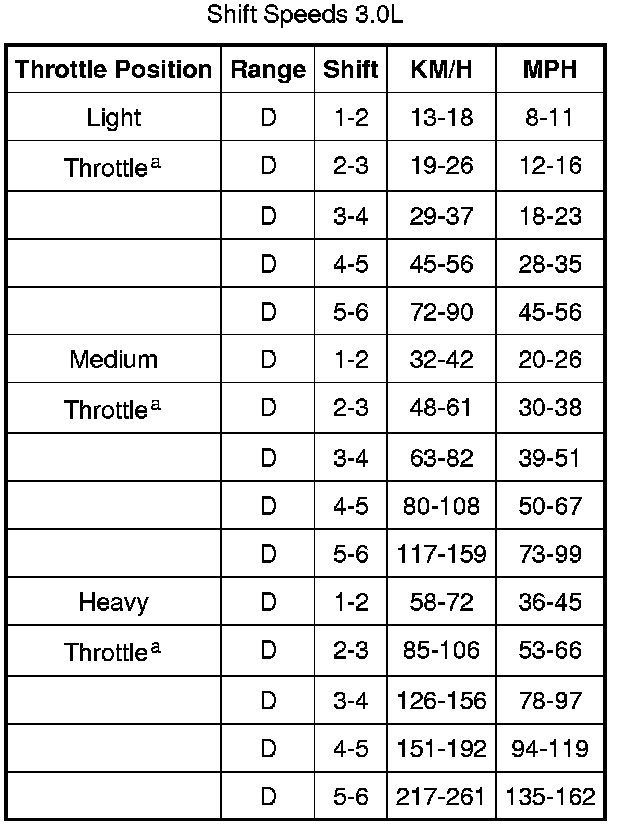

Shift Speeds 3.0L:
a Do not exceed the speed limit.
