Oil Pan, Engine

Install the 2 oil pan-to-transaxle bolts.
Tighten to 40 Nm (30 lb-ft)

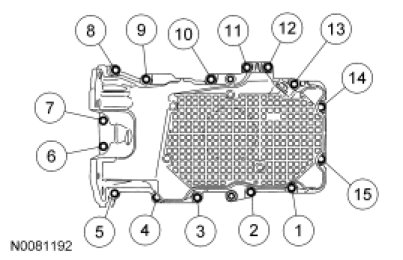

Tighten the oil pan-to-engine bolts in the sequence shown to 25 Nm (18 lb-ft).

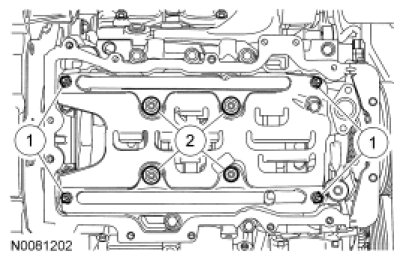

Tighten the 4 M6 oil pan baffle nuts in 2 stages.
Stage 1: Tighten to 5 Nm (44 lb-in).
Stage 2: Tighten an additional 45 degrees.

Then install and tighten the 4 M8 oil pan baffle nuts in 2 stages.
Stage 1: Tighten to 15 Nm (133 lb-in).
Stage 2: Tighten an additional 45 degrees.
