Aisin AW21

Gear And Solenoid Operation Chart:

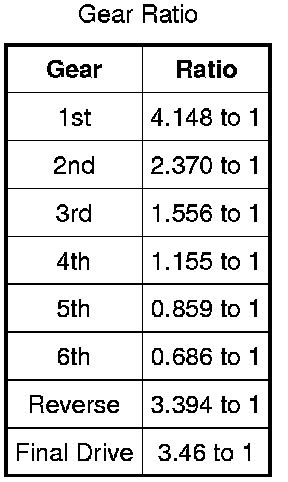

Gear Ratio:

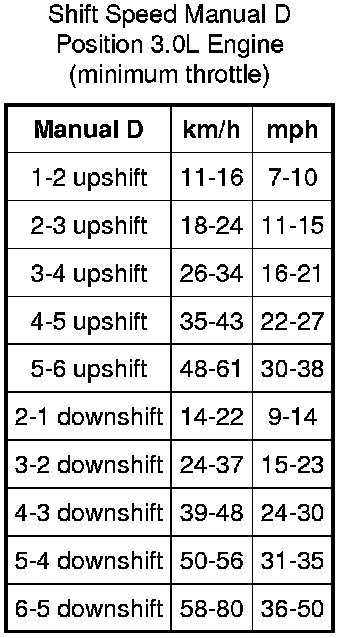

Shift Speed Manual D Position 3.0L Engine (minimum throttle):

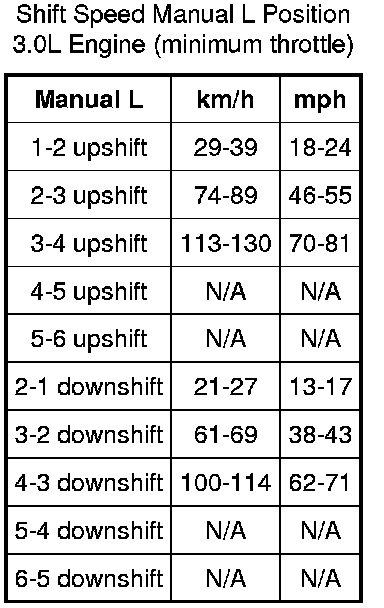

Shift Speed Manual L Position 3.0L Engine (minimum throttle):

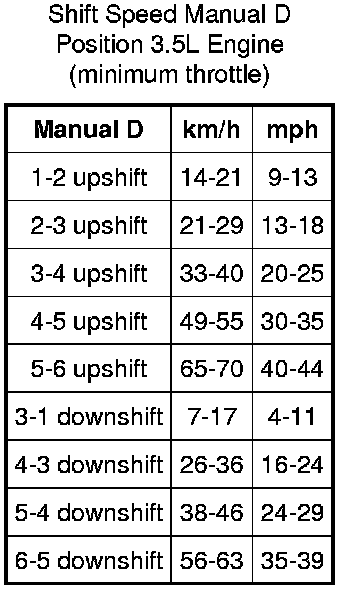

Shift Speed Manual D Position 3.5L Engine (minimum throttle):

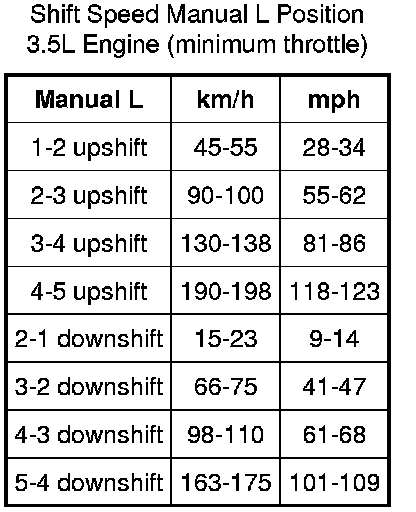

Shift Speed Manual L Position 3.5L Engine (minimum throttle):

Stall Speed:

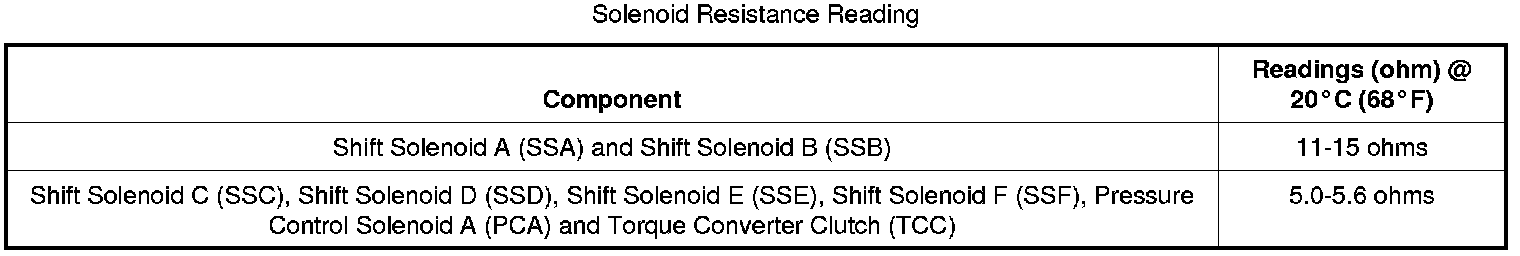

Solenoid Resistance Reading:

Clutch And Brake Pressure Chart:
