Wheel Speed Sensor - Front




Wheel Speed Sensor - Front

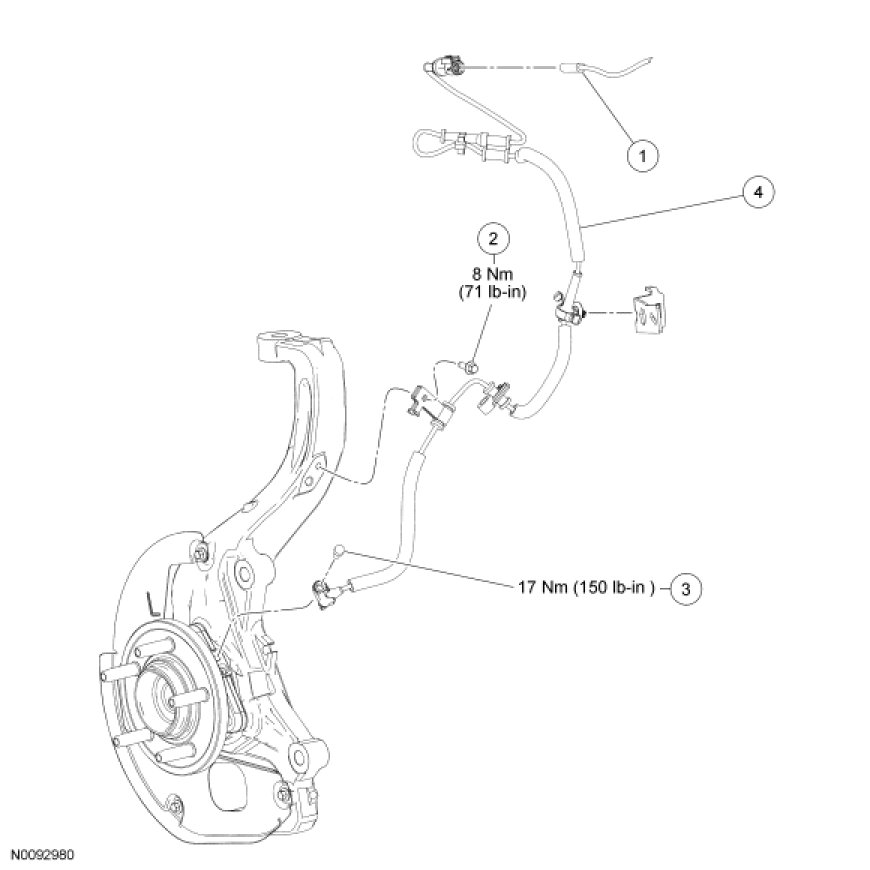

Removal and Installation

1. Remove the front brake disc.

2. Disconnect the wheel speed sensor electrical connector.

3. Remove the wheel speed sensor harness bolt.
- To install, tighten to 8 Nm (71 lb-in).

4. Remove the wheel speed sensor harness pin-type retainers.

5. Remove the wheel speed sensor bolt and the wheel speed sensor.
- To install, tighten the bolt to 17 Nm (150 lb-in).

6. To install, reverse the removal procedure.
