Exhaust Manifold

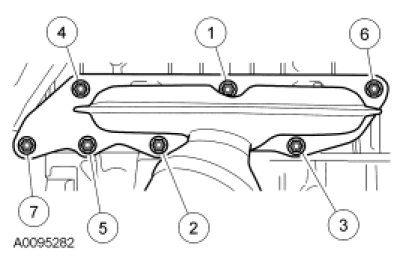

Position the catalytic converter manifold and tighten the 7 new nuts in the sequence shown, in 2 stages.

Stage 1: Tighten to 55 Nm (41 lb-ft).
Stage 2: Tighten to 55 Nm (41 lb-ft).
