Radiator Grille

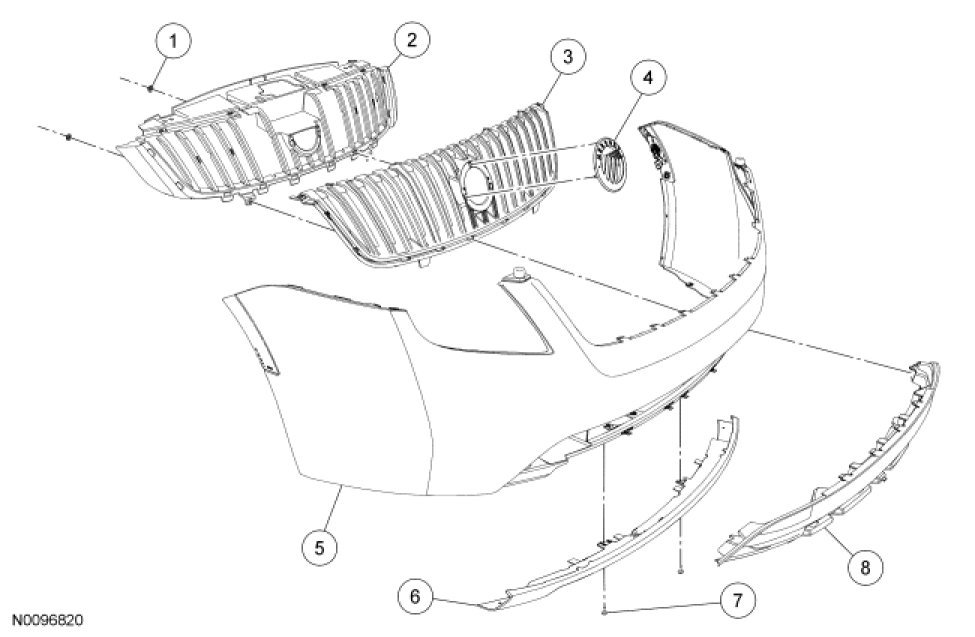

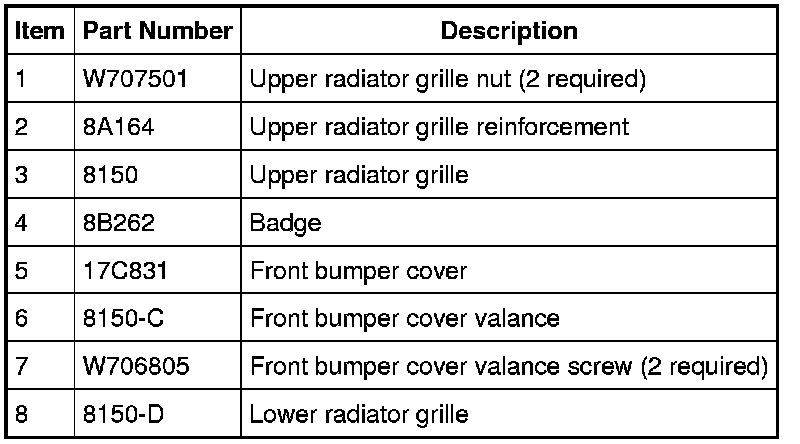

Radiator Grille - Milan









All radiator grilles

1. Remove the front bumper cover. For additional information, refer to Bumpers Service and Repair.

Upper radiator grilles

2. Remove the upper radiator grille nuts.

3. Remove the upper radiator grille.
- Press the upper radiator grille tabs outward to release the upper radiator grille from the bumper cover.

Lower radiator grilles

4. Press the 12 tabs inward on the lower radiator grille to release it from the front bumper cover.

5. Remove the lower radiator grille.

All radiator grilles

6. To install, reverse the removal procedure.
