A1 General Module Control Unit With IHKA Automatic Heating/Air Conditioning System As of 03/02 Up to 09/03
Connector ViewX254 Component connector (54-pin, natural)

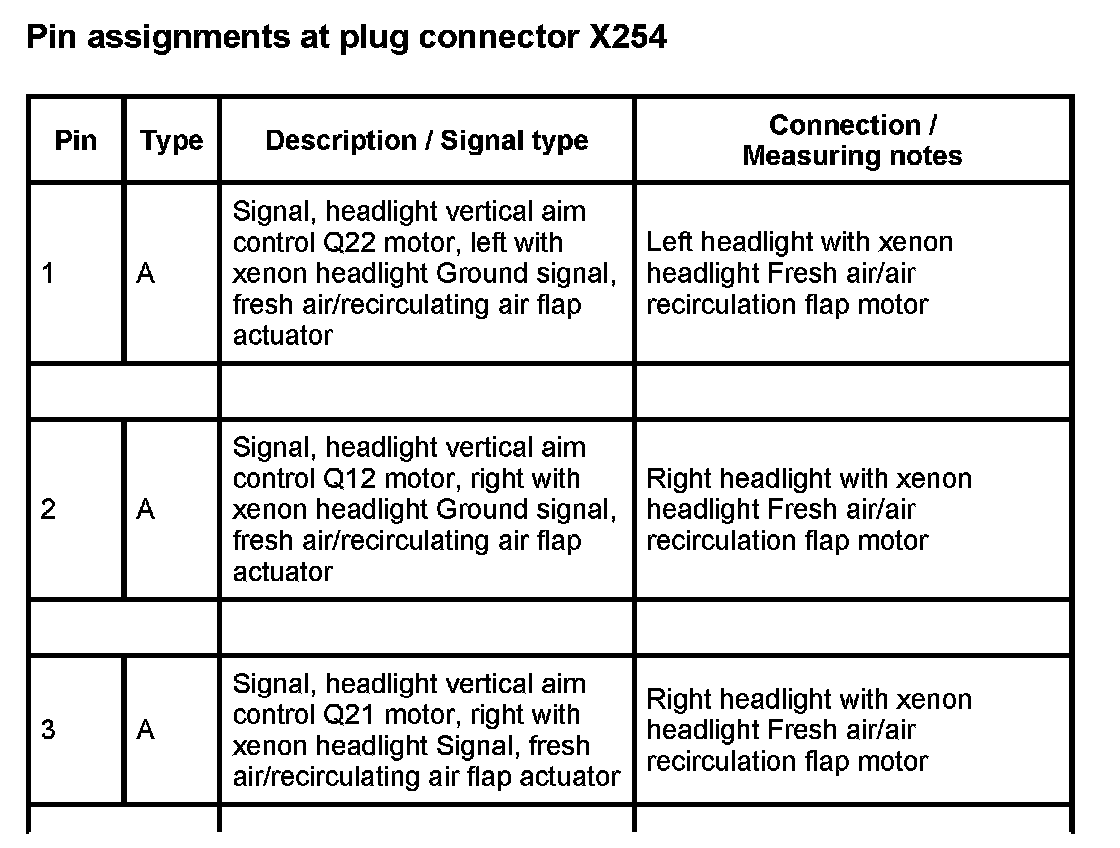

Pin AssignmentX254 Part 1:

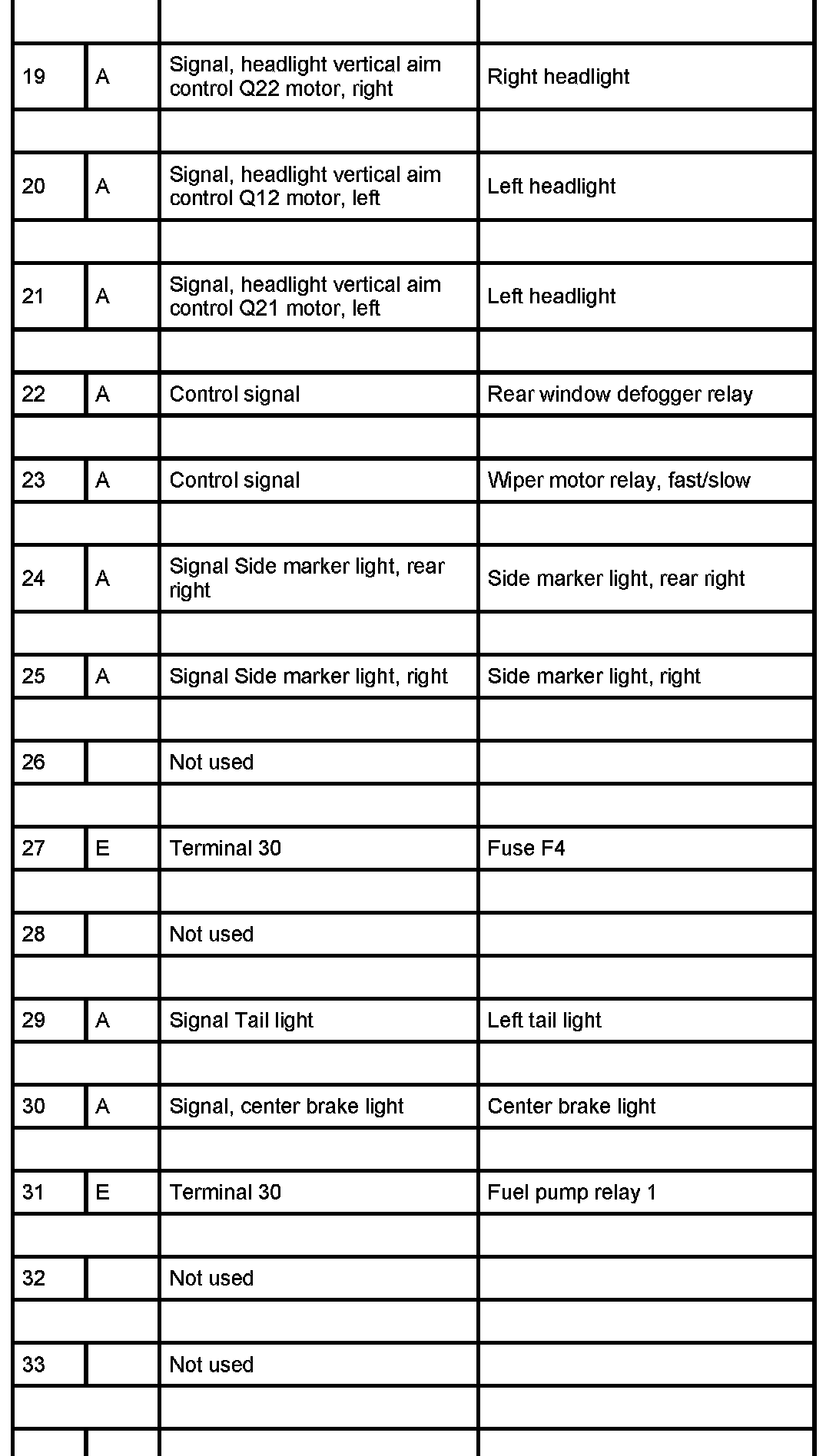

X254 Part 2:
X254 Part 3:

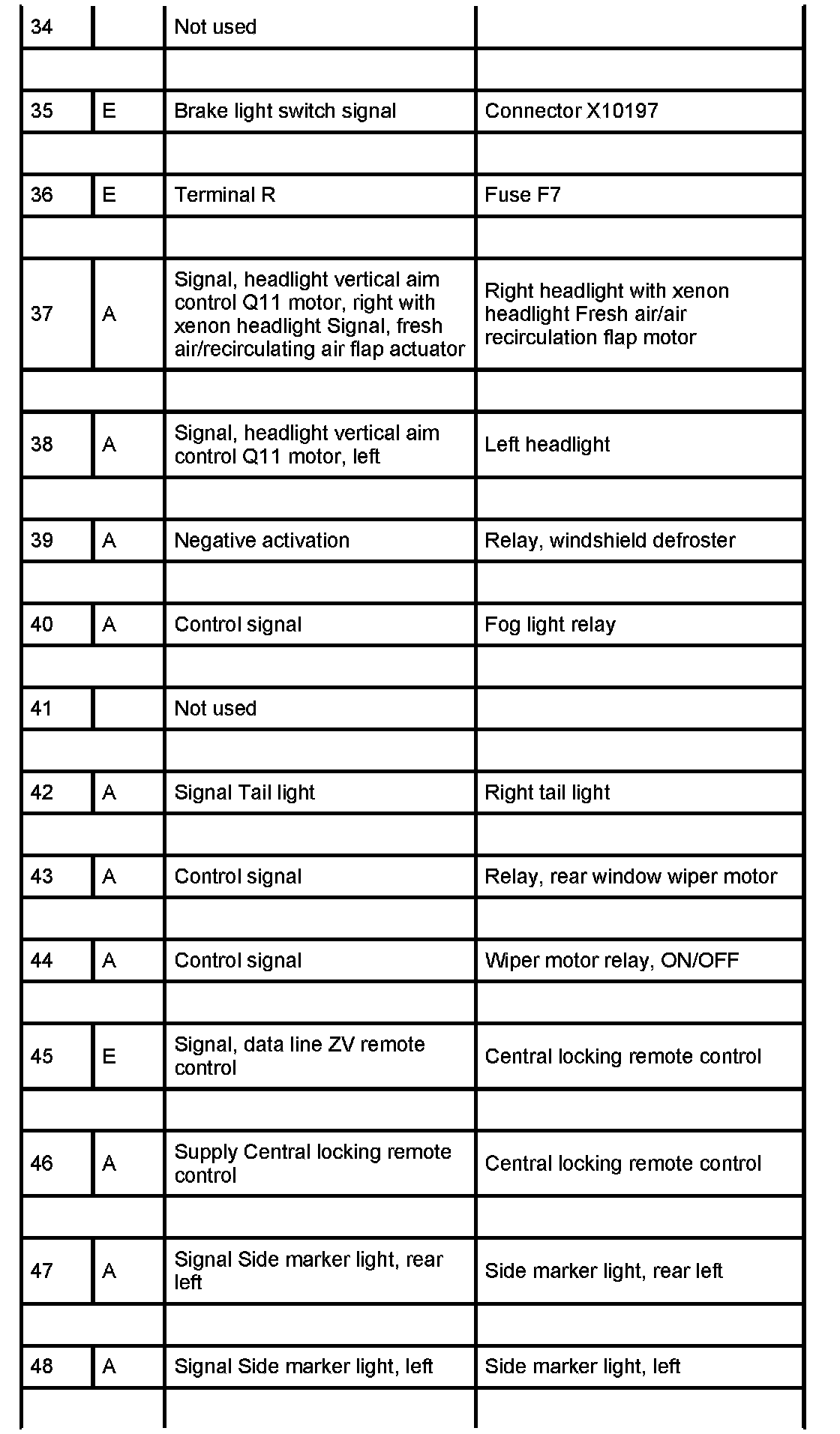

X254 Part 4:

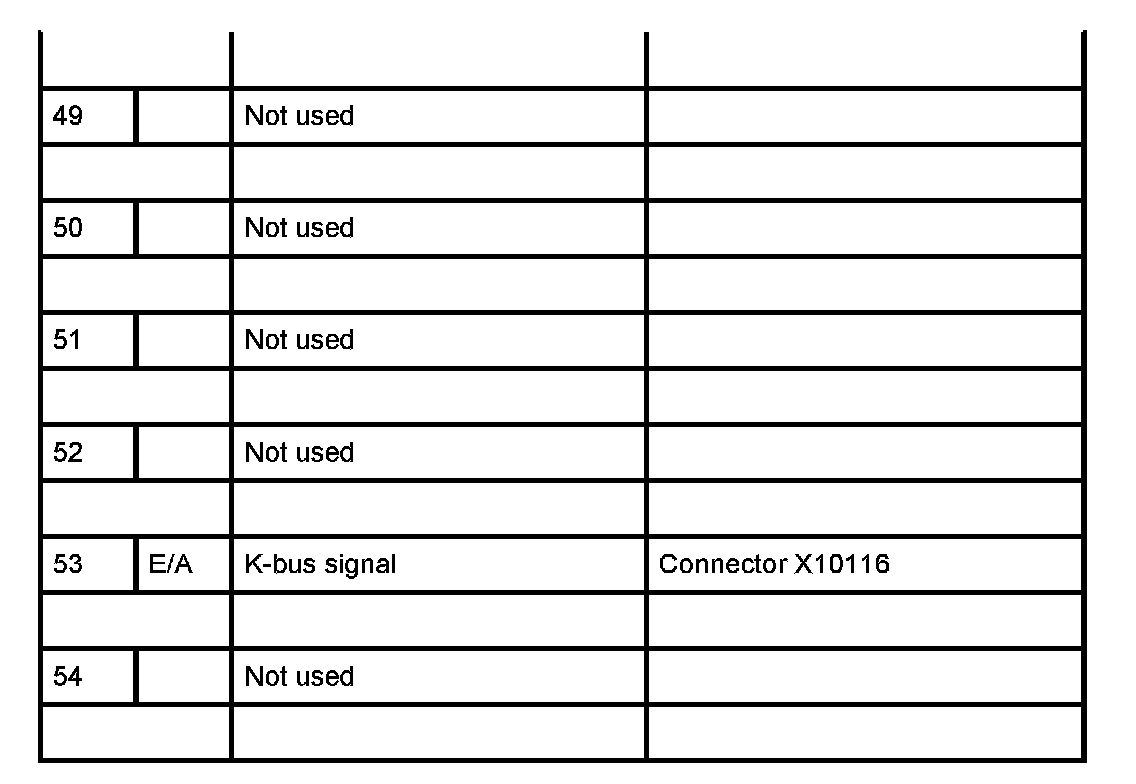

X254 Part 5:
