Removing and Installing/Replacing Fuel Filter With Fuel Level Sensor

16 14 017 - Removing and installing/replacing fuel filter with fuel level sensor





Special tools required:
- 16 1 020 16 1 020 Pin Wrench





Necessary preliminary tasks:
- Discharge fuel tank Procedures
- Remove rear seat Service and Repair
- Remove sensor unit (left) Service and Repair





Push trim panel (1) forward.
Unfasten screws (2).

Installation:
Tightening torque 16 11 2AZ 16 11 Fuel Tank and Mounting Parts.

Remove the cover (3).





Unlock and withdraw fuel hose.

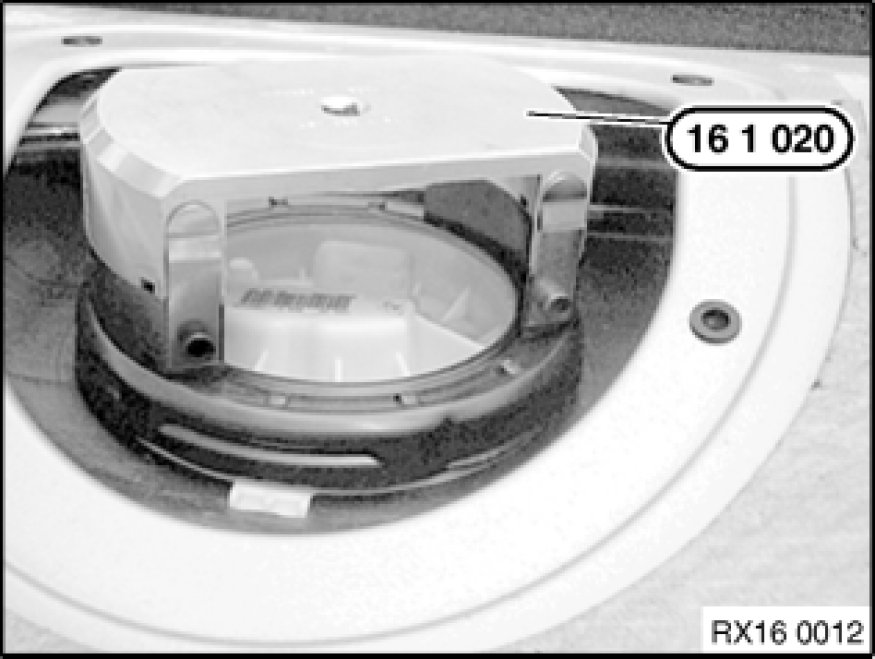

Release locking ring with special tool 16 1 020 16 1 020 Pin Wrench.

Installation:
Replace rubber seal.
Tightening torque 16 14 1AZ 16 14 Fuel Pump.

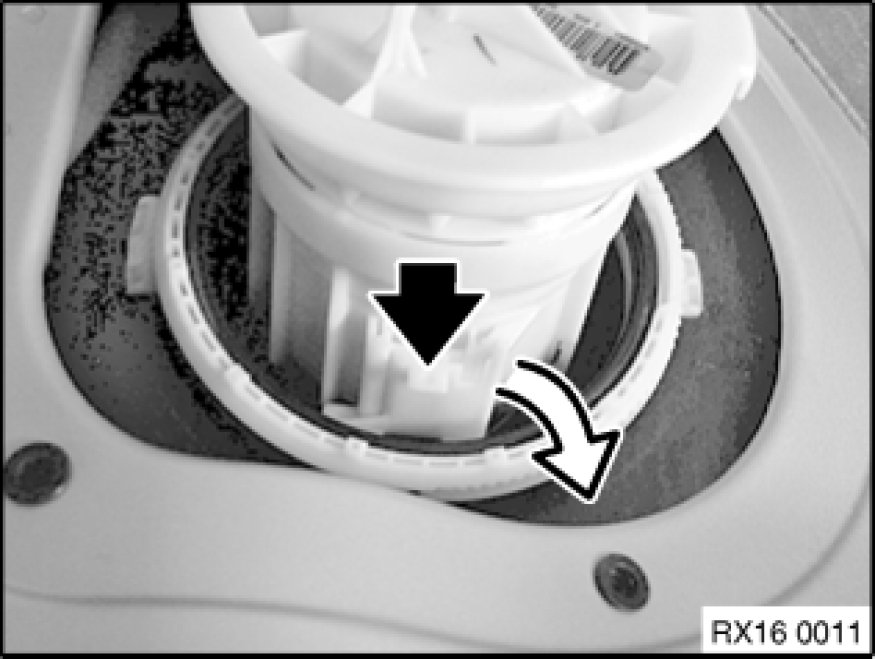

Remove line holder from sensor unit. Lift sensor unit and lines out of fuel tank.





Installation:

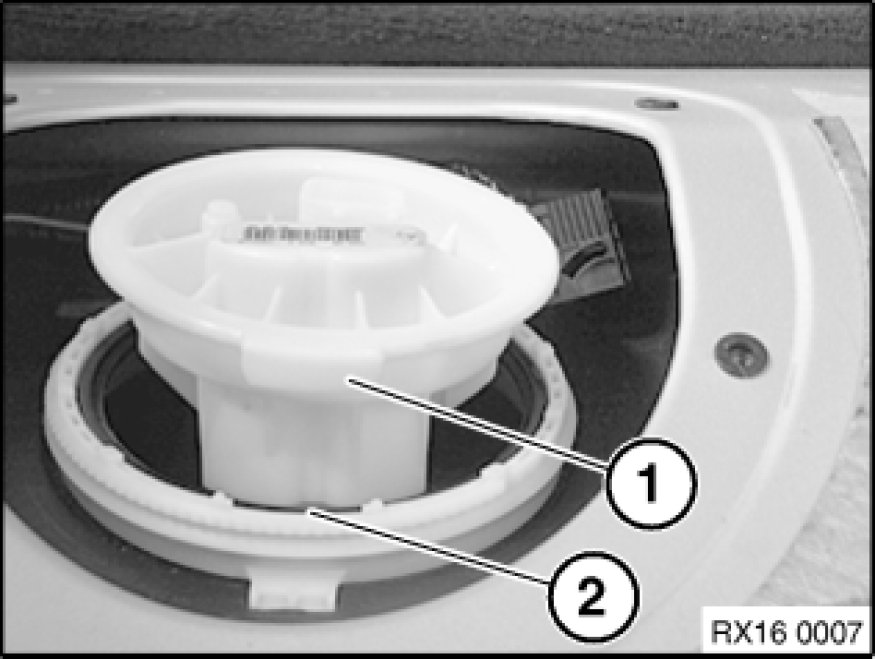

When installing fuel filter, make sure lug (1) engages in recess (2) on tank.
