Air Register: Service and Repair

64 22 135 Removing And Installing/Replacing Left Or Right Fresh-Air Grille

Necessary preliminary tasks:
- Remove air outlet vent cover at side

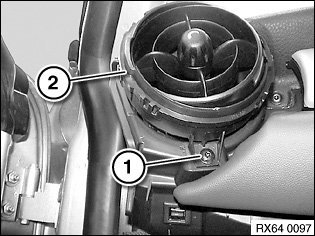

Release screw (1) and feed out fresh-air grille (2).

Installation:

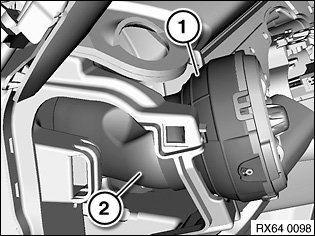

Make sure fresh-air grille (1) is correctly seated on fresh-air duct (2).
