Alarm Module: Service and Repair

61 35 015 Removing And Installing (Replacing) Control Unit For Car Access System







IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).

NOTE: The comfort access system is a radio-based system and can be interfered with by radio waves from other systems (e.g. mobile phone).







Necessary preliminary work:
- Disconnect battery earth lead
- Remove instrument panel top section trim

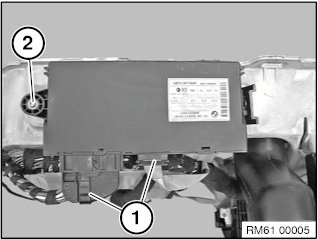

Unlock plug connections (1) and disconnect.
Release screw (2).
Remove control unit for Car Access System







Replacement:
Carry out programming/encoding.
