Front Fender: Service and Repair

41 35 081 Removing And Installing/Replacing Side Wall, Front Left Or Right

For stripping and rigging operations, refer to texts on KSD CD (job number 41 35 081).

Observe gap dimensions.

IMPORTANT: Do not damage adjoining body components.

Necessary preliminary work:
- Remove cover from wheel arch at front left
- Remove trim panel for cover on side member at left
- Remove cowl panel cover

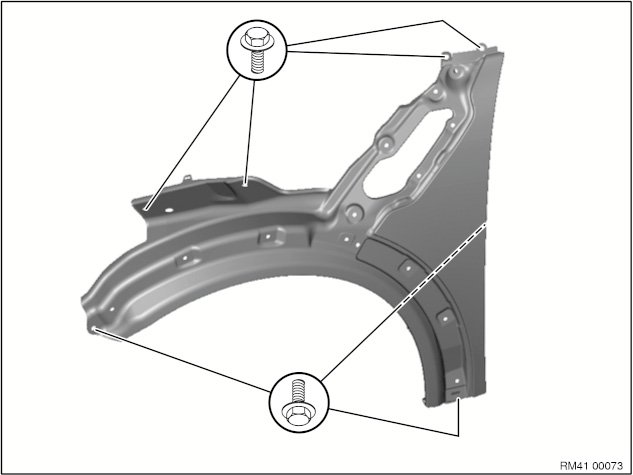

Release screws.

Tightening torque 41 35 2AZ.
