Front Door Window Regulator: Service and Repair

51 33 000 Removing And Installing (Replacing) Power Window Unit In Left Or Right Front Door

Necessary preliminary work:
- Remove door window glass

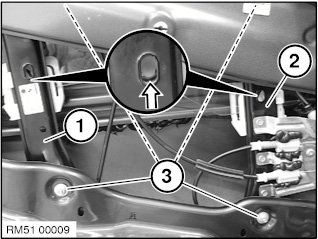

Release nuts (3) of window guide rail (1) and (2).

Tightening torque 51 33 1AZ.

Unlock plug connection on flat motor and disconnect.

Feed out power window regulator from inner door panel.

Replacement
- Modify flat motor.
