Service Specifications

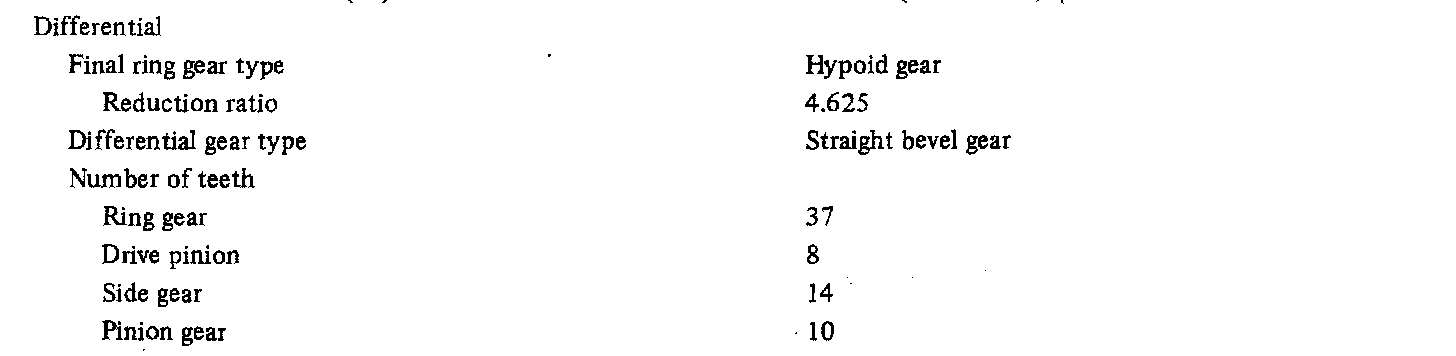

KM145 5-spd M/T, Front Differential Dimensions:

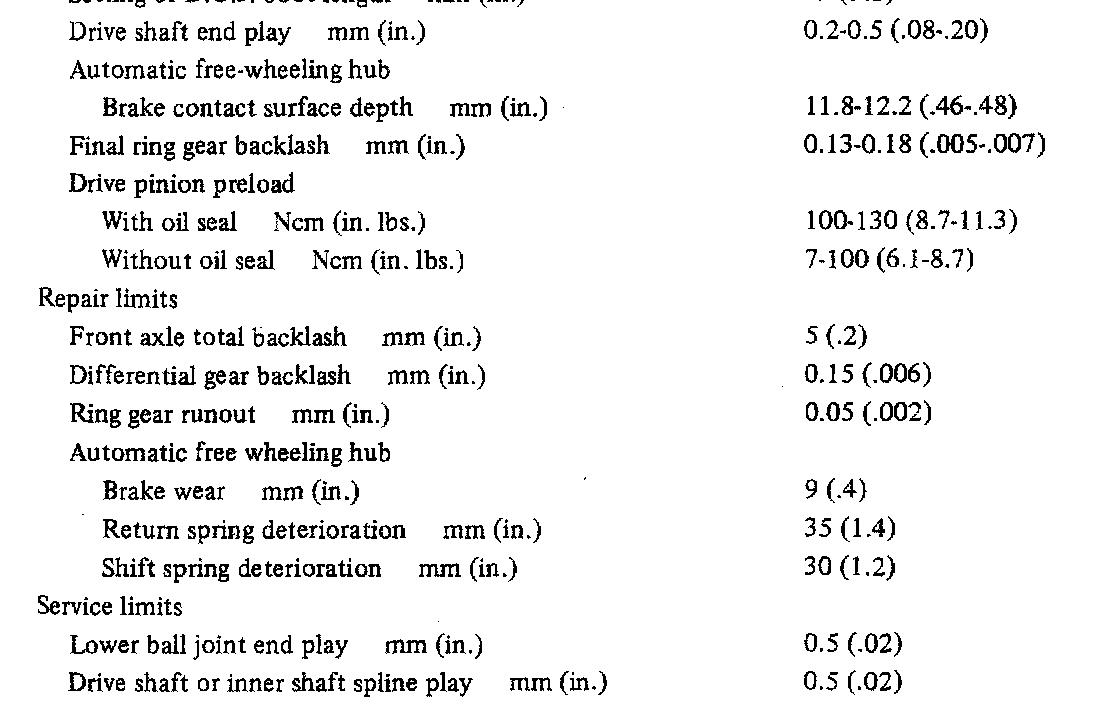

KM145 5-spd M/T, Front Differential Standard Values:
