Cruise Control - Service Manual Update
83mitsubishi01SUBJECT:
CRUISE CONTROL (Speed Control)
NO. STB-83-08-002
DATE August 1983
MODEL Cordia/Tredia
The 1983 Cordia/Tredia Service Manual has been updated to reflect changes in the Cruise Control System. Please place these stickers on top of pages 8-18, 8-45, 8-90, 8-102, and 8-163. Place one sticker on the Cruise Control wiring diagram inside the back cover of the manual.
The Cruise Control System of 1983 Cordia/Tredia models has been modified for improved performance.
The vacuum tank and tee for automatic transaxle units have been eliminated and a vacuum pump, vacuum switch, and vacuum relay have been added to the system. These new components are serviced as assemblies only. They are not repairable. A table of specifications, a troubleshooting chart, updated wiring diagrams and component illustrations are included in this bulletin to aid in diagnosis and repair of the cruise control system.
PAGE 8-18 SPECIFICATIONS under: Speed Control System Add the following specifications:
PAGE 8-45 TROUBLESHOOTING

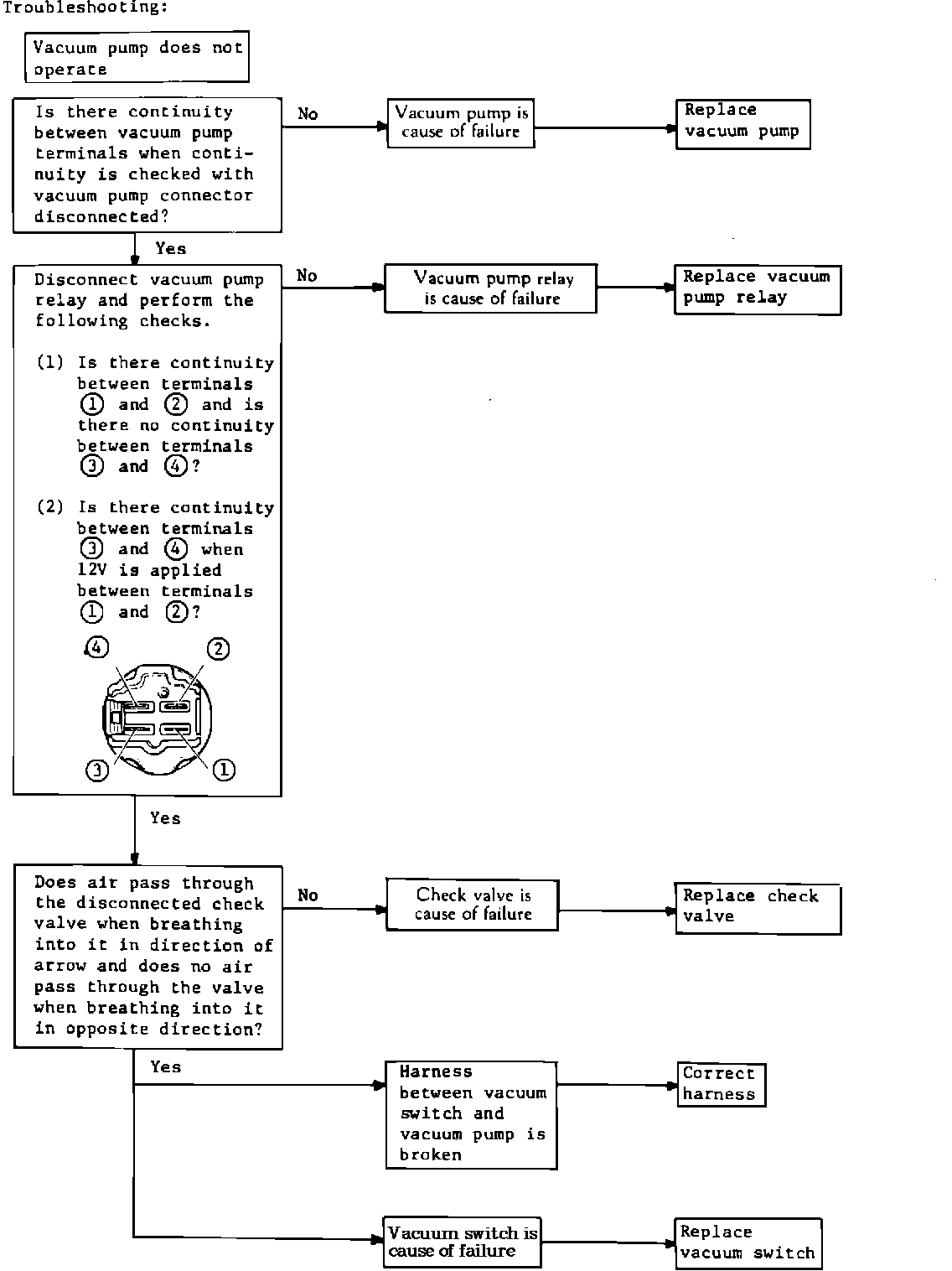

The following chart supplements the Speed Control System troubleshooting chart:
PAGES 8-90 AND 8-91 COMPONENT SERVICE-WIRING HARNESS AND FUSES

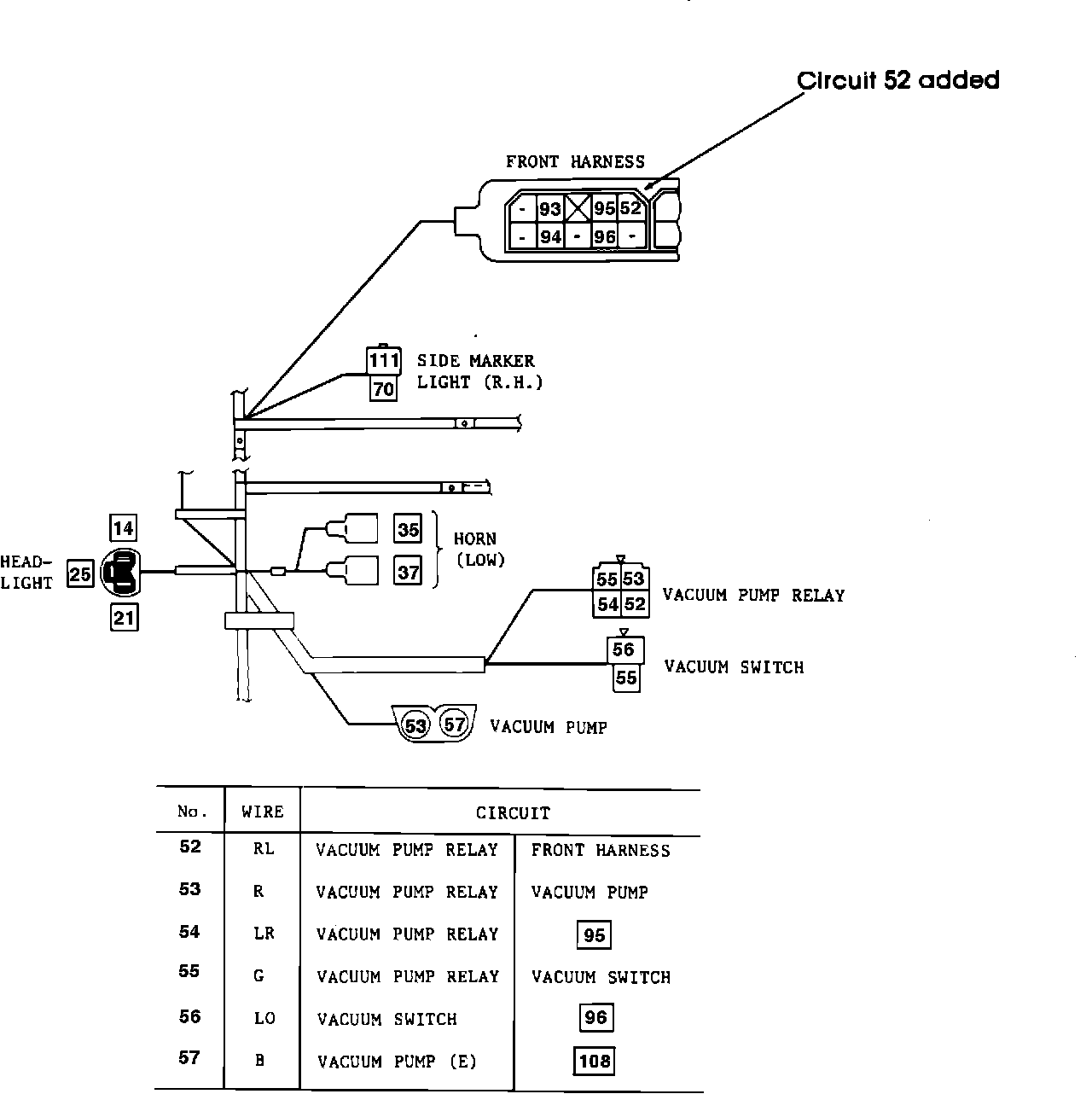

The wiring diagram and circuit chart have been revised as shown below:
PAGES 8-102 AND 8-103 COMPONENT SERVICE-WIRING HARNESS AND FUSES
The wiring diagram and circuit chart have been revised as shown below:
PAGE 8-163 COMPONENT SERVICE-SPEED CONTROL SYSTEM under: COMPONENTS

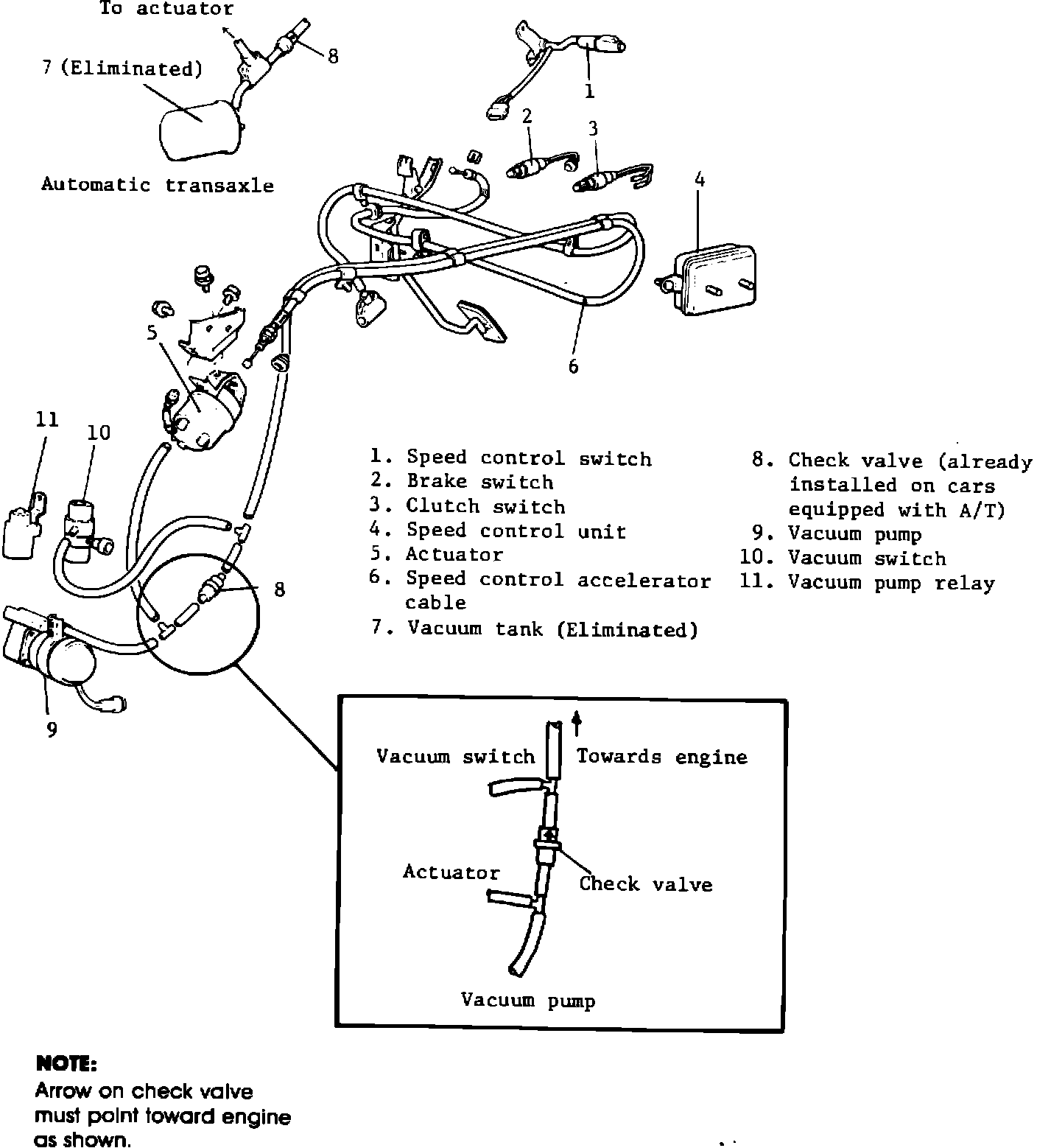

The illustration of the Speed Control System has been updated to show the new components.
INSIDE BACK COVER OF MANUAL-WIRING DIAGRAM

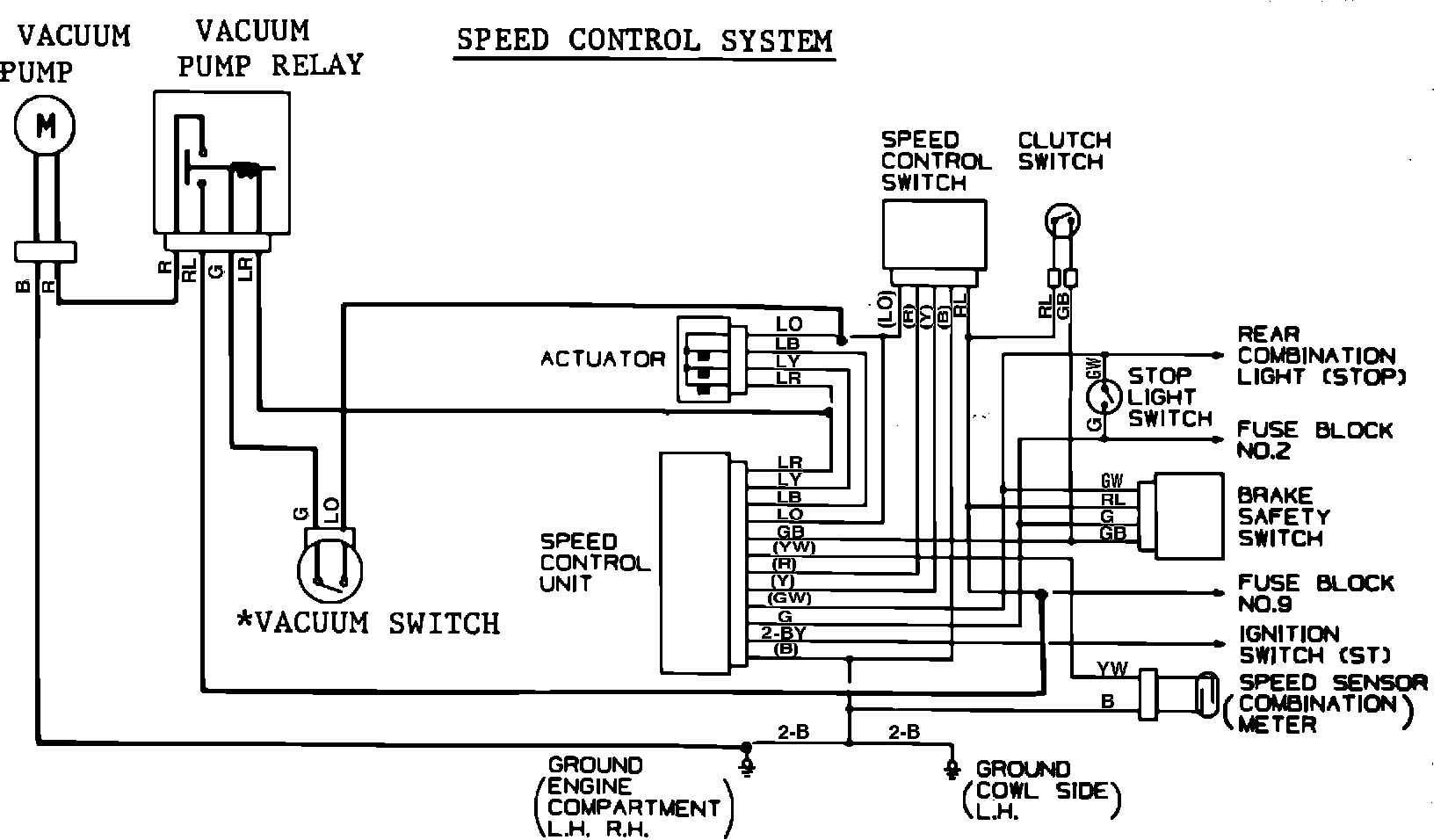

The Speed Control System wiring diagram is revised as shown below:
EFFECTIVE DATE
The production effective point of the above changes was mid-August 1982.
