Engine - Diesel, Super Quick Glow (TM) System Update
84mitsubishi01SUBJECT:
SUPER QUICK GLOW (TM) STARTING SYSTEM - SERVICE MANUAL UPDATE
NO. STB-84-08-002
DATE March 1984
MODEL 1984 Turbo Diesel Truck
Diesel-powered 1984 truck models are equipped with a super Quick Glow (TM) Starting System. The glow plugs used with the 1984 system are different in specifications from those used in 1983 and the electrical circuitry has been revised.
This Bulletin is issued to correct the 1984 Truck System Manual with respect to the new Super Quick Glow (TM) Starting System. Please attach orange labels to the tops of pages 8-4, 8-27, 8-28, 8-83, and 8-84 of the 1984 Truck Service Manual as reference to this bulletin.
PAGE 8-4 ELECTRICAL
In the table entitted Glow System-4D55 Engine, please revise the glow plug specifications as indicated below.
PAGE 8-27 ELECTRICAL
The diagnostic chart at the bottom of the page does not apply to 1984 models and should be crossed out as indicated below.

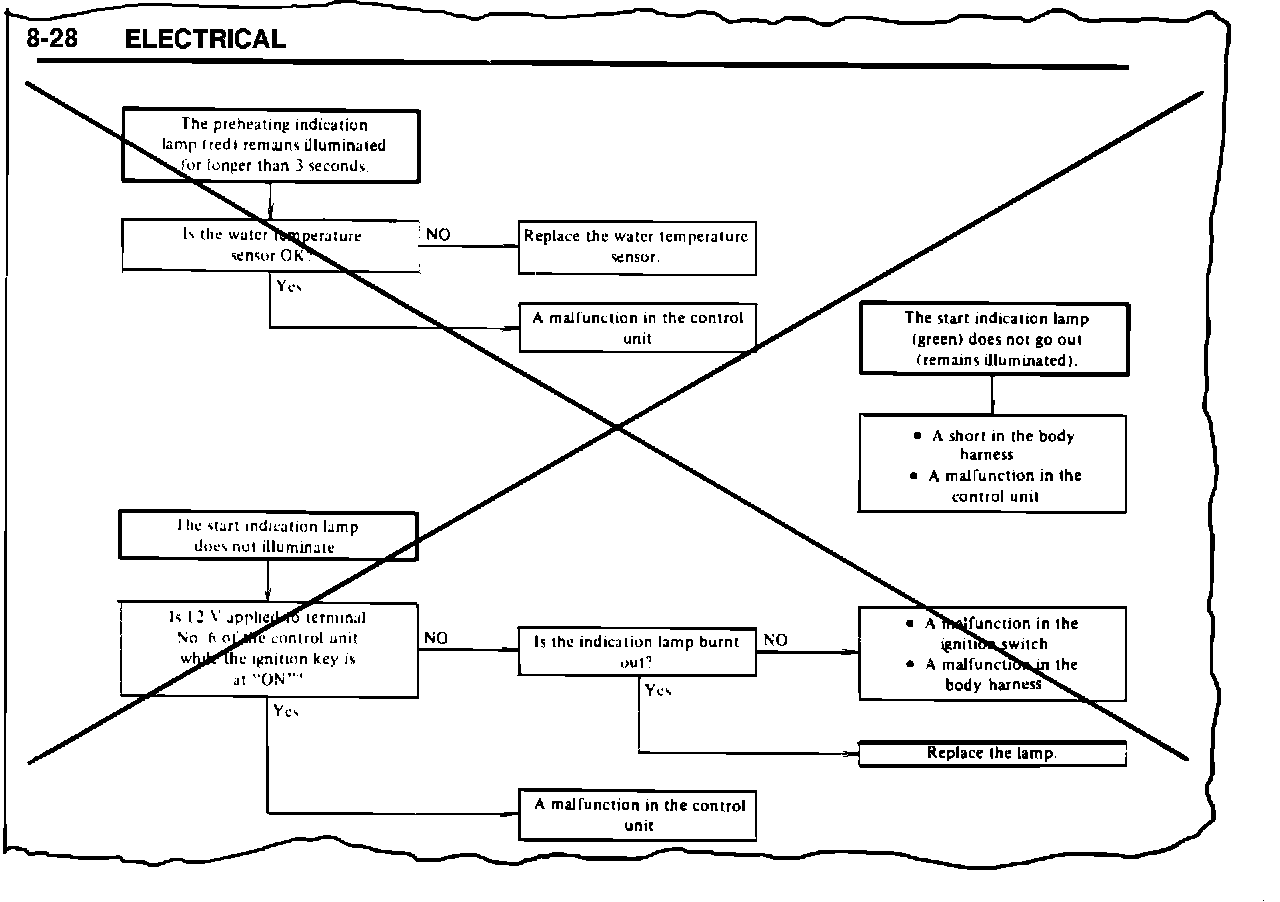

PAGE 8-28 ELECTRICAL
The diagnostic charts on this page do not apply to 1984 models and should be crossed out entirely.

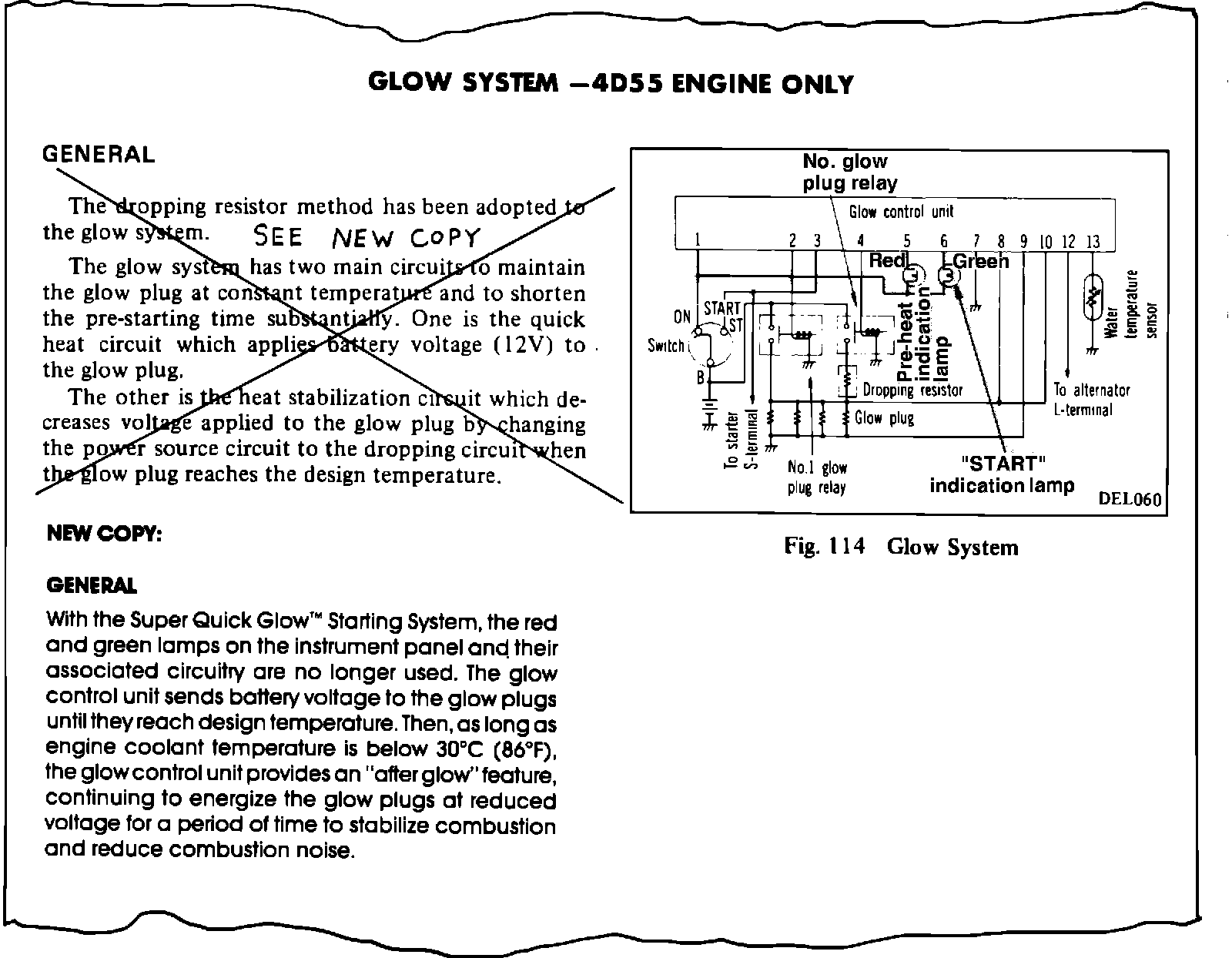

PAGE 8-83 GLOW SYSTEM-4D55 ENGINE ONLY
The GENERAL description has been completely revised as shown below, and the indicator lamp circuit has been removed from the wiring diagram. The screened items are deleted from the diagram.
PAGE 8-84 INSPECTION
Change the glow plug resistance value as shown below.
