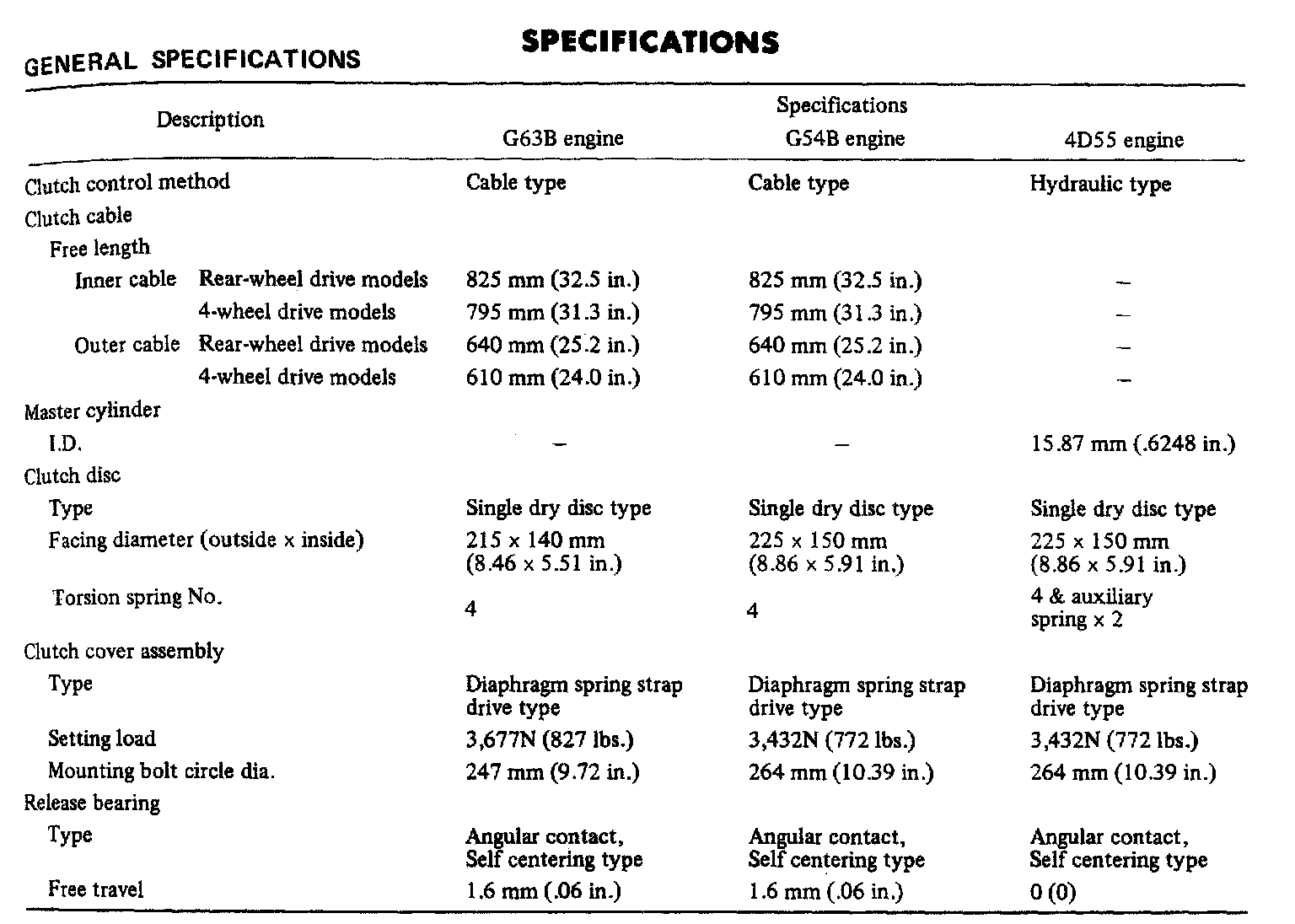

KM130 4-spd/KM132 5-spd M/T, Clutch Dimensions:

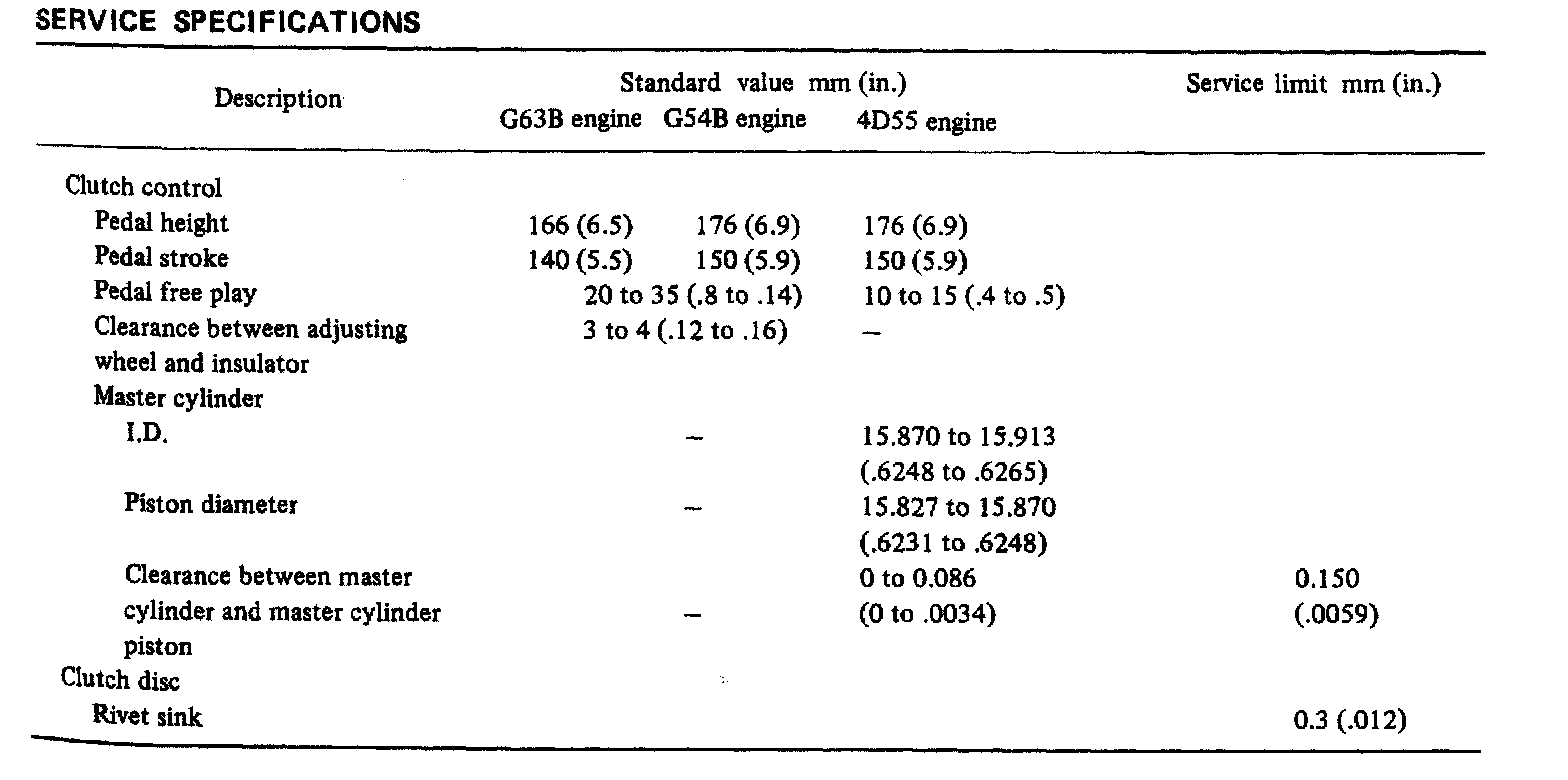

KM130/132 M/T, Clutch Standard Values & Limits:

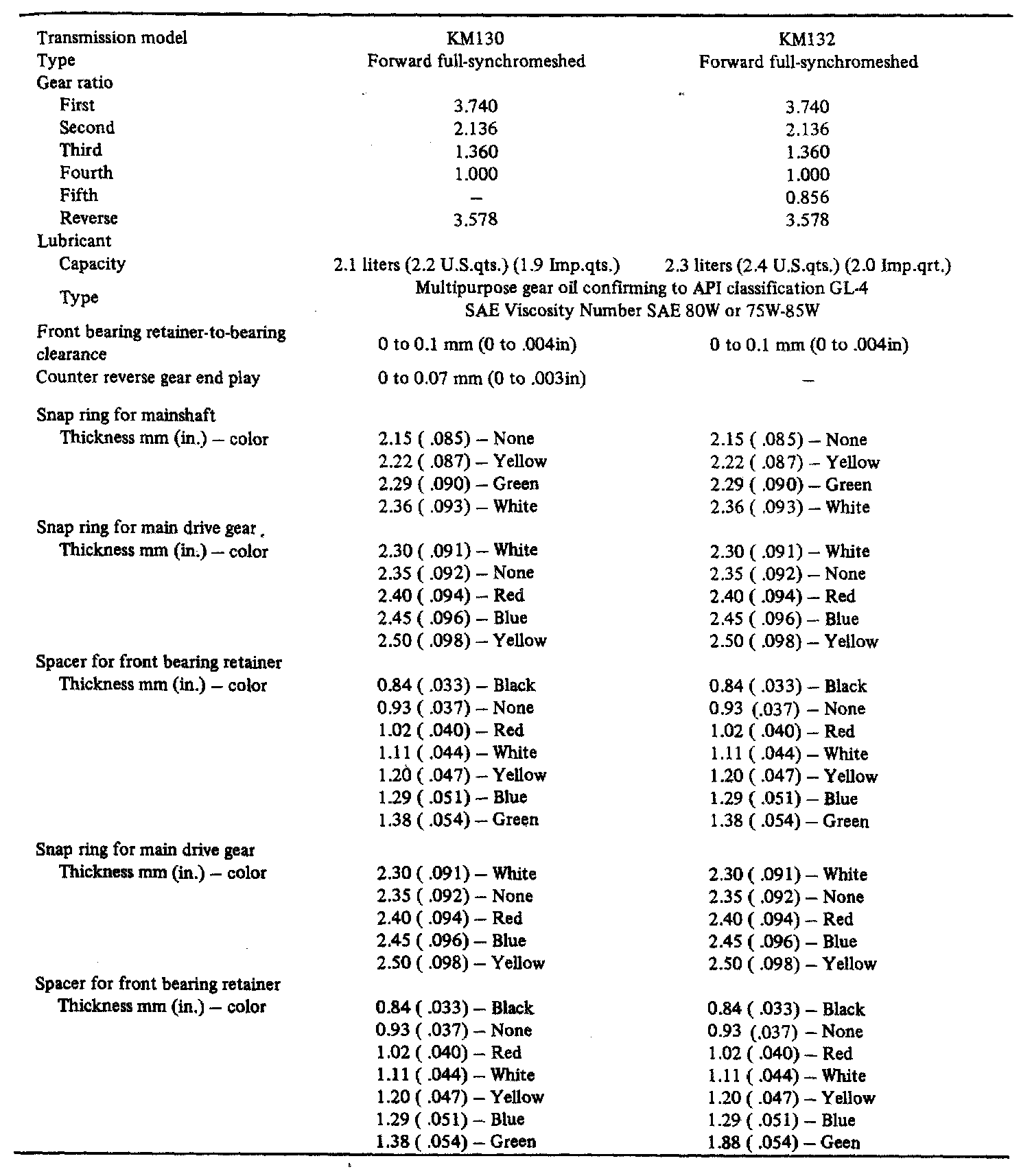

KM130/KM132 M/T, Gear Ratios & Standard Spacer Thickness:

KM130/KM132 M/T, Standard Counter Reverse Gear:
