A/T Technical Data

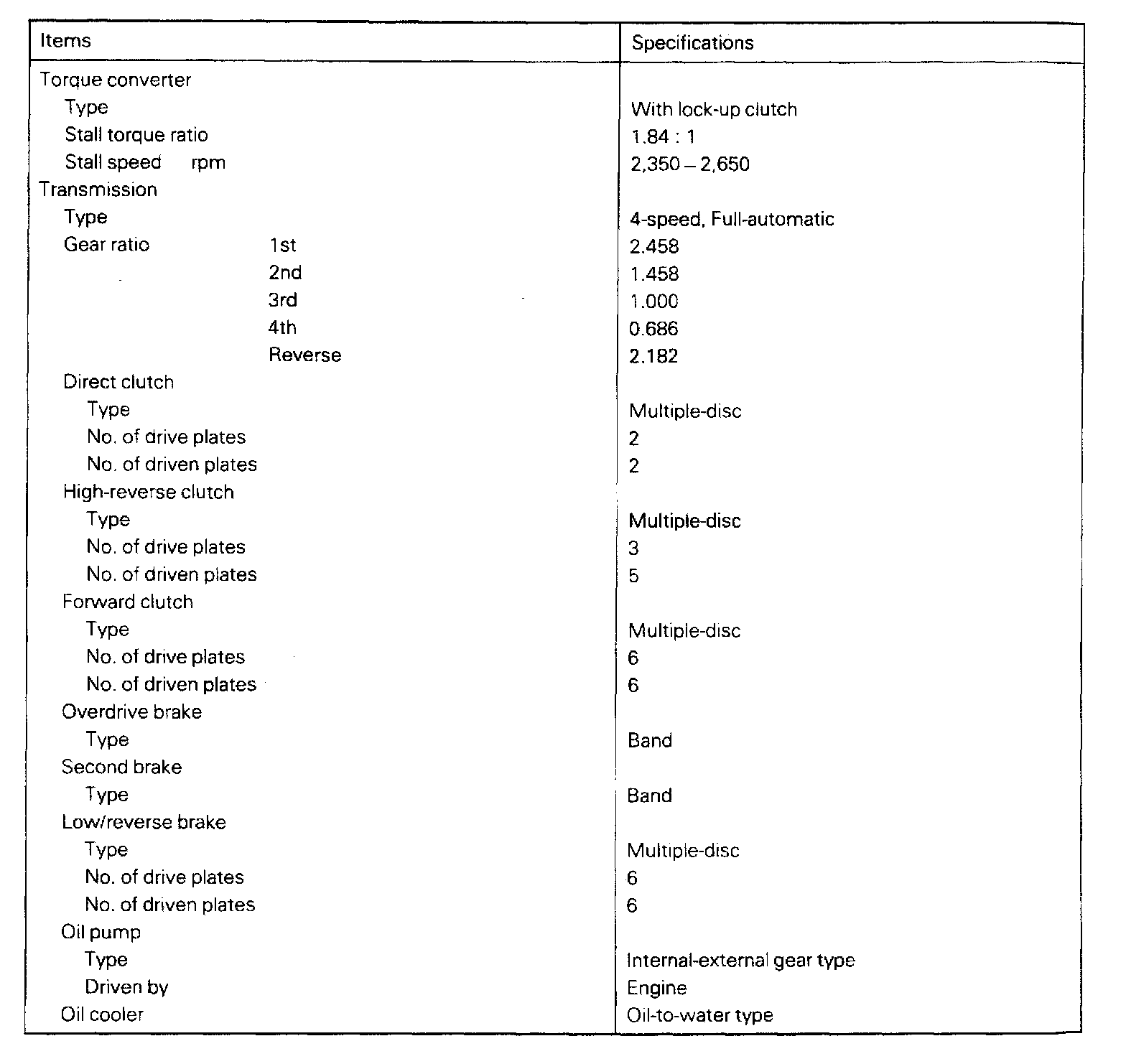

JM600 4-spd A/T, Gear Ratio/Clutch Plates & Thickness:

A/T Technical Data

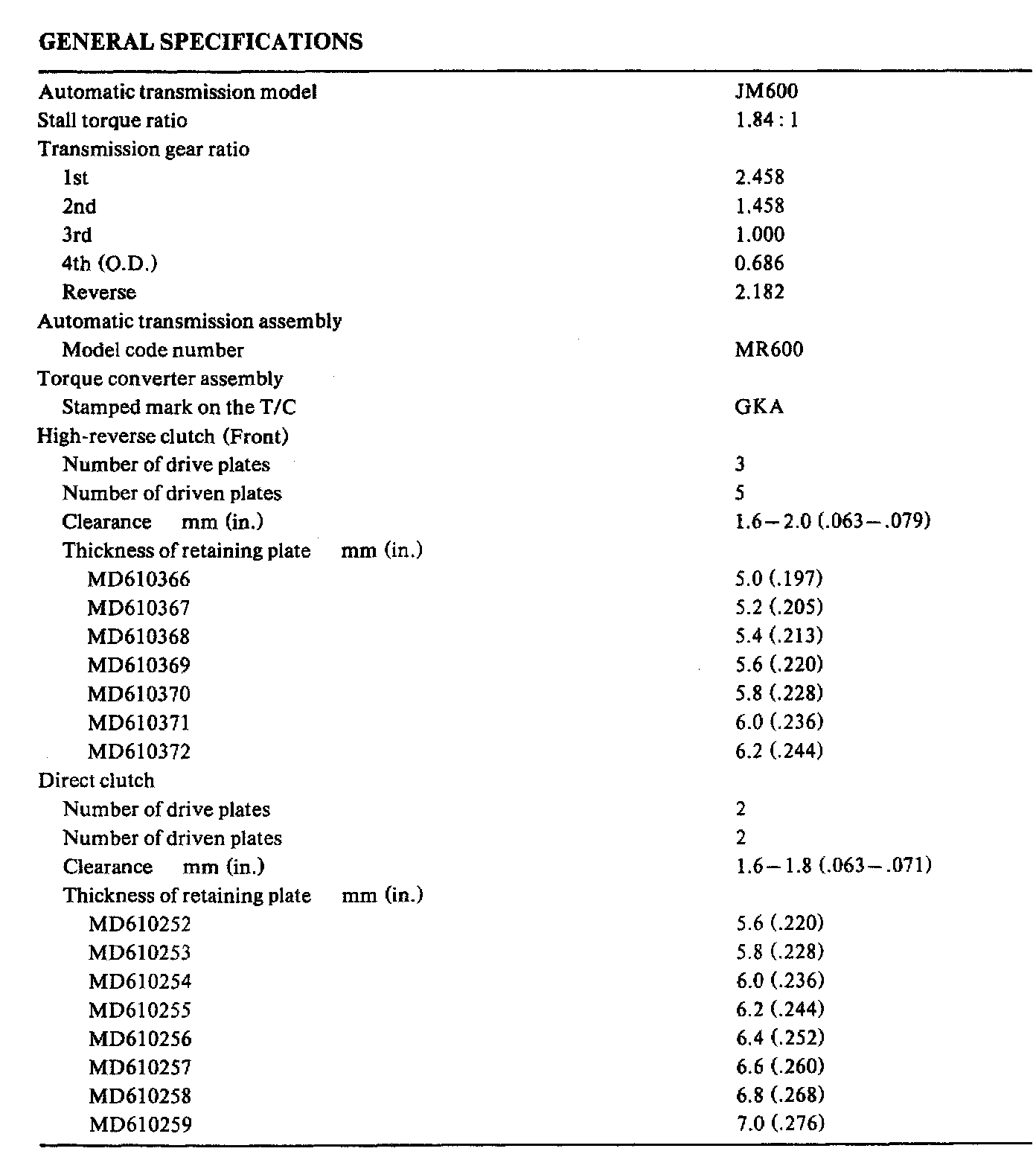

JM600 4-spd A/T, Gear Ratio/Clutch Plates & Thickness:

JM600 4-spd A/T, Gear Ratio ('87 Vehicle Only):

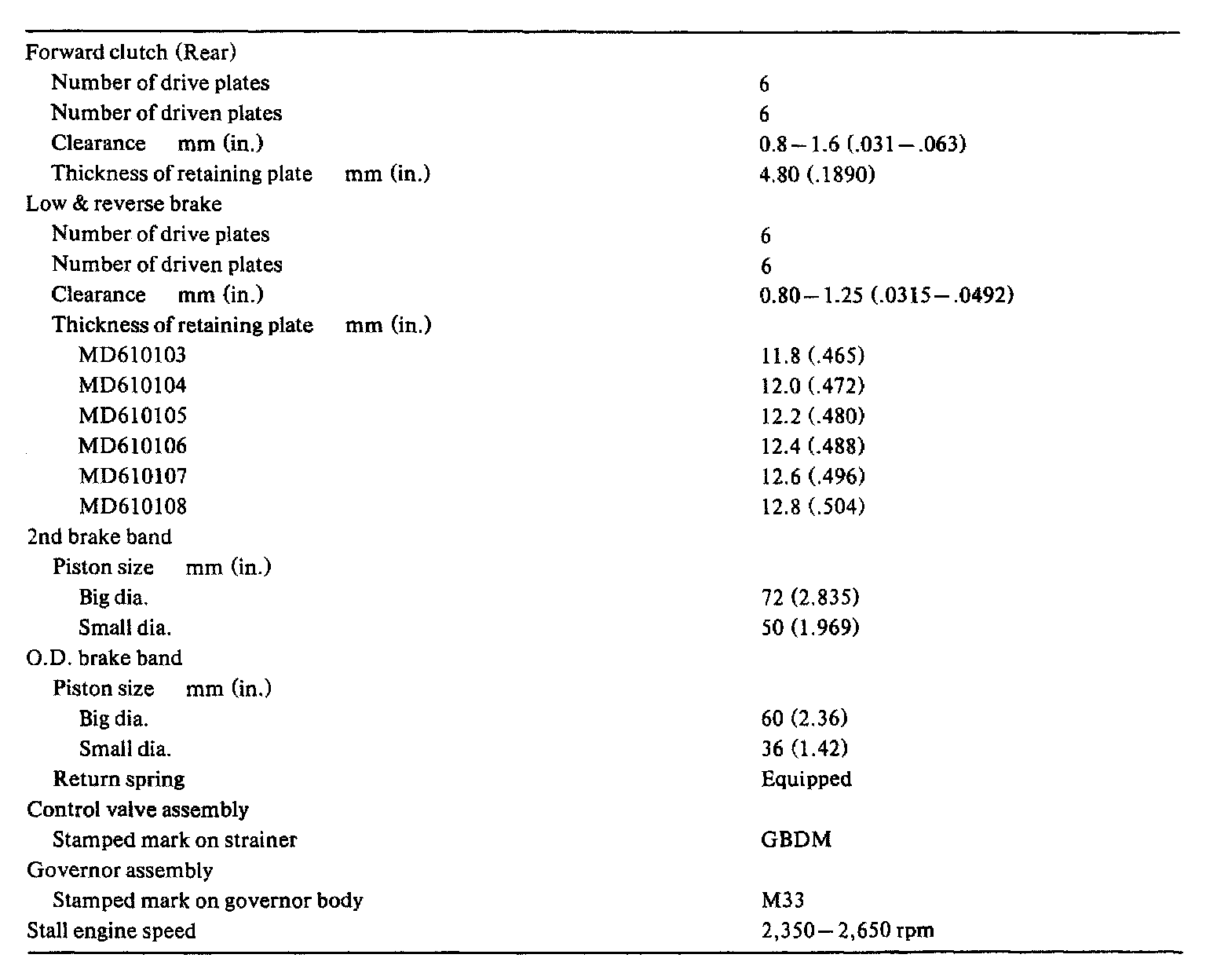

JM600 4-spd A/T, Forward Clutch & Brake Bands:

JM600 4-spd A/T, Standard Values & Limits:

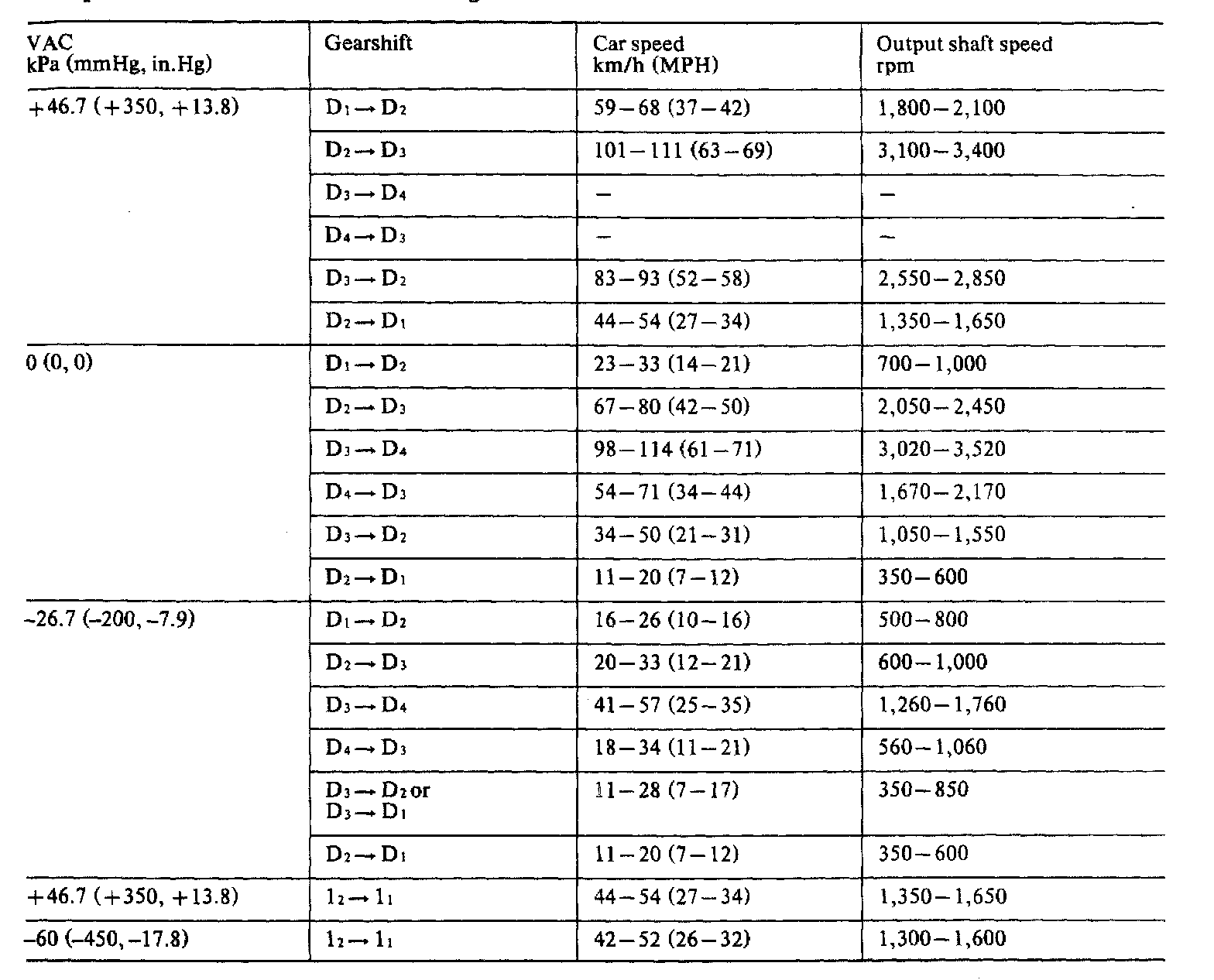

JM600 4-spd A/T, Vehicle Speed & Line Pressure While Shifting:

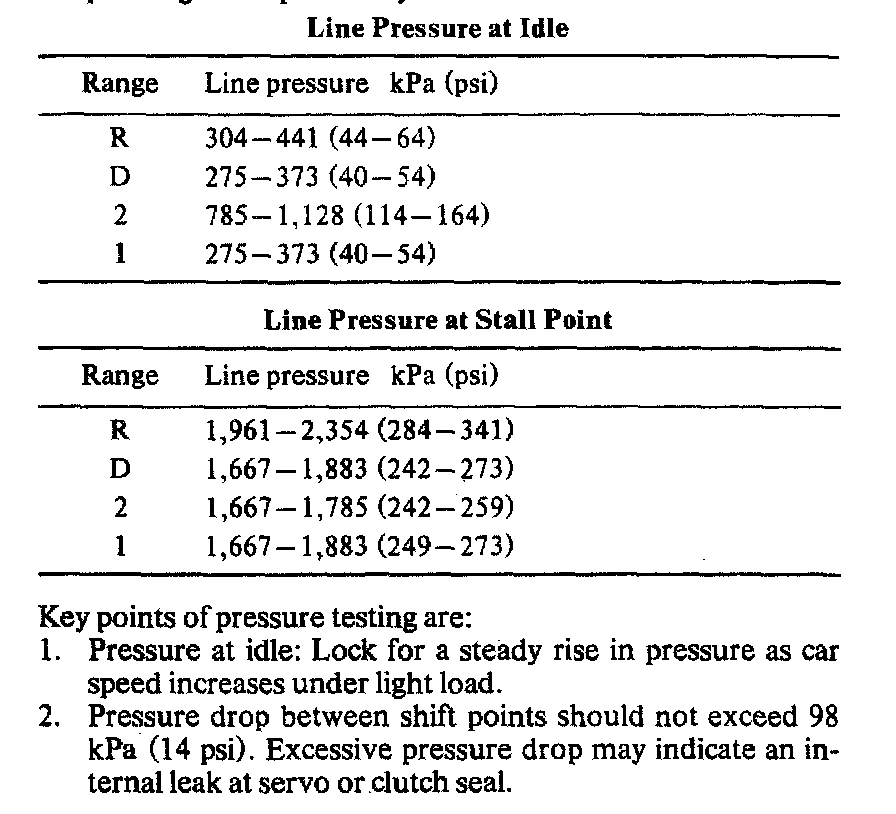

JM600 4-spd A/T, Line Pressure At Idle & Stall Point:
