General System Information

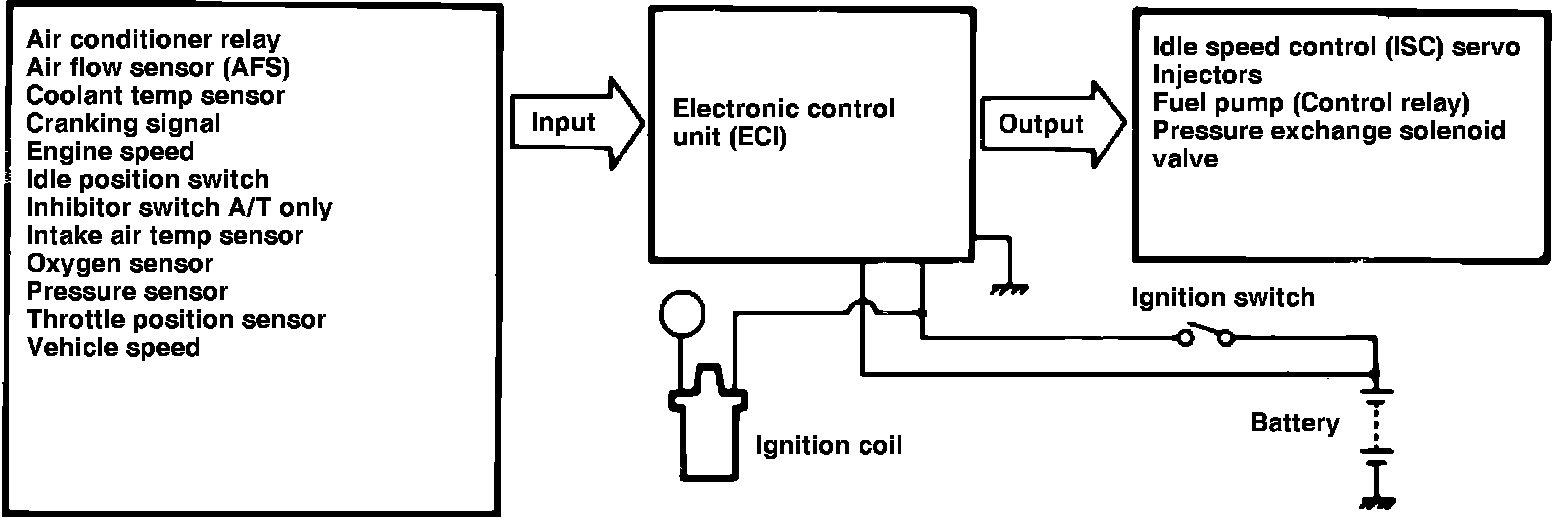

Fig. 1 Fuel injection system.:

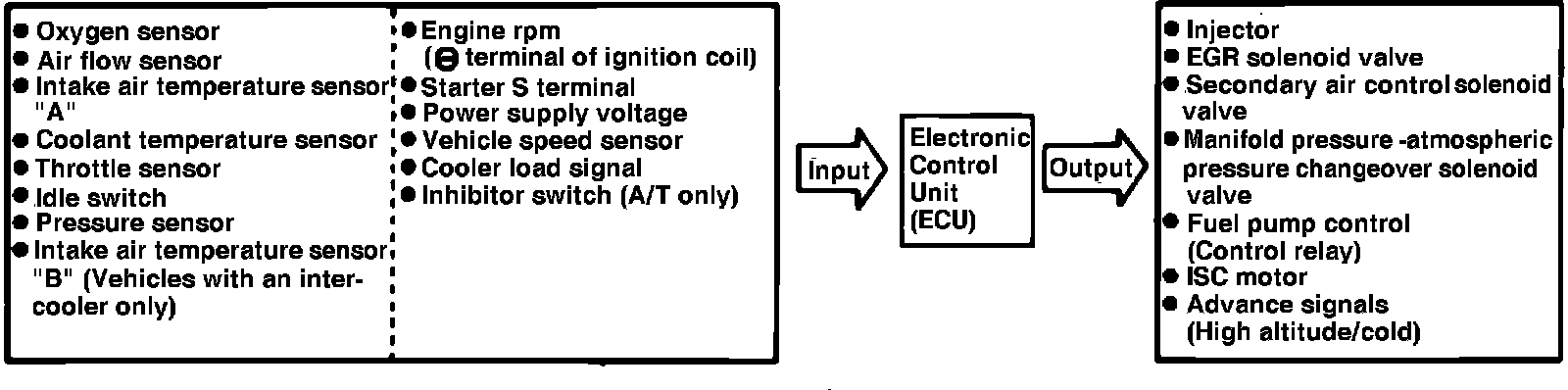

Fig. 2 Fuel injection system.:

The electronically controlled injection system (ECI), Figs. 1 and 2 (used on 1.8L, 2.4L, 2.6L and 1.6L turbocharged engines) is a computer controlled, dual point fuel injection system which provides a precise fuel/air ratio under all driving conditions. The system utilizes a pre-programmed electronic control unit (ECU), to regulate ignition timing, idle speed, emission devices and fuel/air ratio.

Fig. 3 Fuel injection system components.:

Fig. 4 Fuel injection system components.:

Fig. 5 Fuel injection system components.:

Various sensors and switches located throughout the engine compartment provide information to the ECU as shown in Figs. 3 through 5. This system also incorporates a self diagnosis function which monitors various parameters for proper operation.
