Service Label Installation





1. Remove all dirt from the old Service Label.

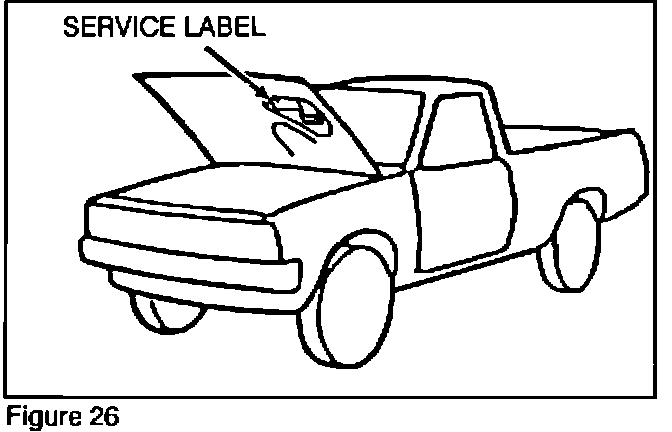

2. Install the new Service Label contained in the EMR-90-002 emission kit (Figure 25) over the old label on the underside of the hood (Figure 26).
