DIESEL GLOW PLUG CIRCUIT DIAGRAM UPDATE

NO. STB-85-08-003

DATE April, 1985

MODEL 1985 Diesel Truck

STB Revision
PURPOSE

STB-85-08-003

This bulletin is issued to correct the glow circuit diagram and description in the 1985 Truck Service Manual.

SERVICE MANUAL PAGES AFFECTED

Wiring harness diagrams and circuit descriptions on the following pages are changed by this bulletin. As reference, please write the STB number in the boxes on these pages:

8-98 8-104
8-99 8-105
8-100 8-108
8-101 8-109
8-102 8-110
8-103 8-111

FIGURE 1:

DESCRIPTION OF CORRECTIONS

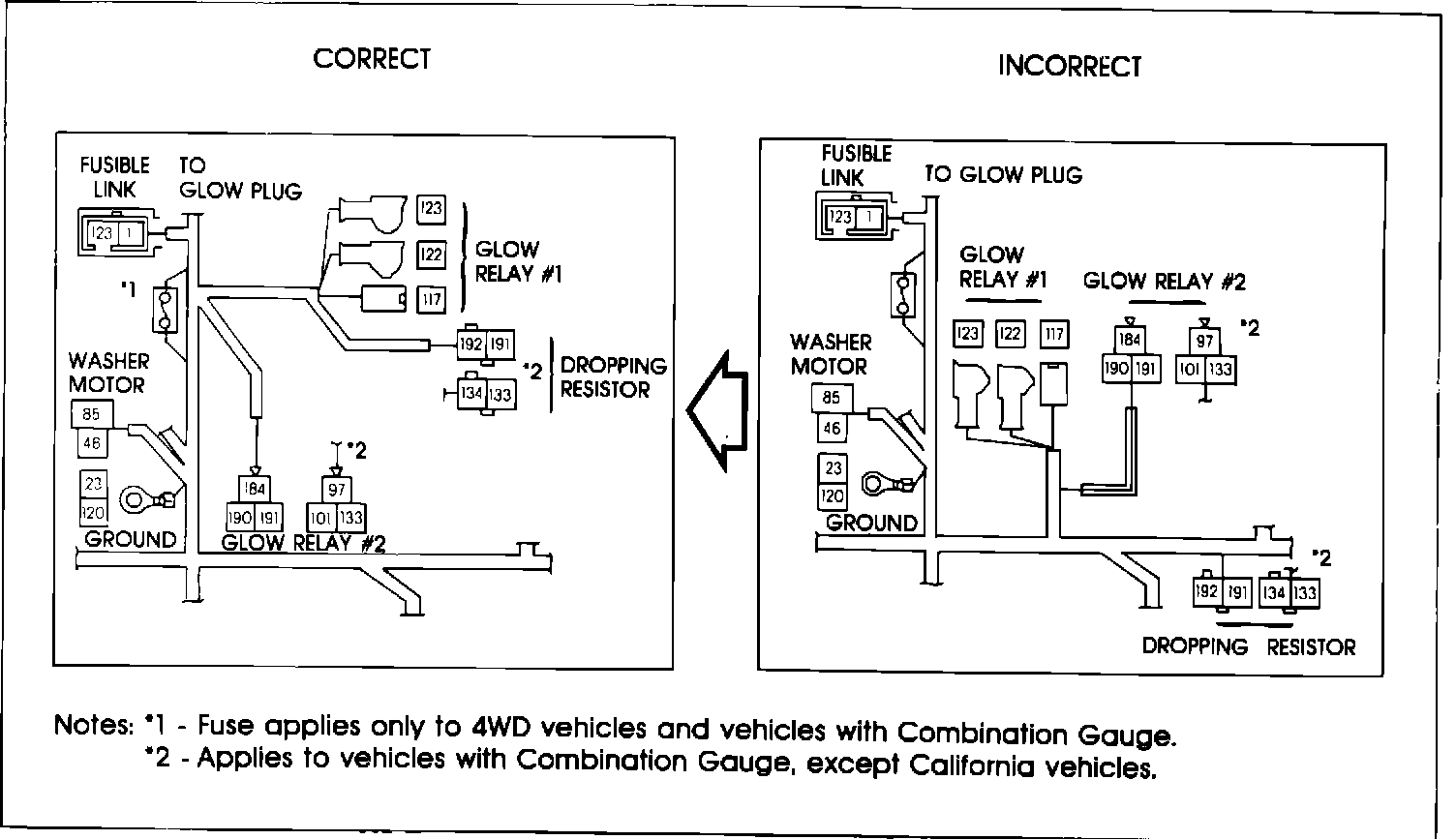

1. The branching points of the harnesses for the glow relays #1 and #2 are relocated, and the dropping resistor is relocated as shown in Fig. 1.

2. Wire sizes for glow relay #2 and the dropping resistor are changed from 5 sq.cm. to 3 sq.cm as shown in the table on Page 2.
