Ignition Timing - Service Manual Update

86mitsubishi01

SUBJECT:
1986 GALANT IGNITION TIMING - SERVICE MANUAL UPDATE
NO. STB-86-00-001

DATE MAY, 1986

MODEL 1986 GALANT



STB REVISION STB-86-00-001
PURPOSE This bulletin is issued to alter the specification for ignition timing in the 1986 Galant Service Manual Please write the specification changes in your service manual as shown below, and write the STB number in the revision boxes on pages 0-10 and 8-111.



SERVICE MANUAL AFFECTED 1986 Galant Group 0, Lubrication and Maintenance, Page 0-10 Group 08, Electrical, Page 8-111

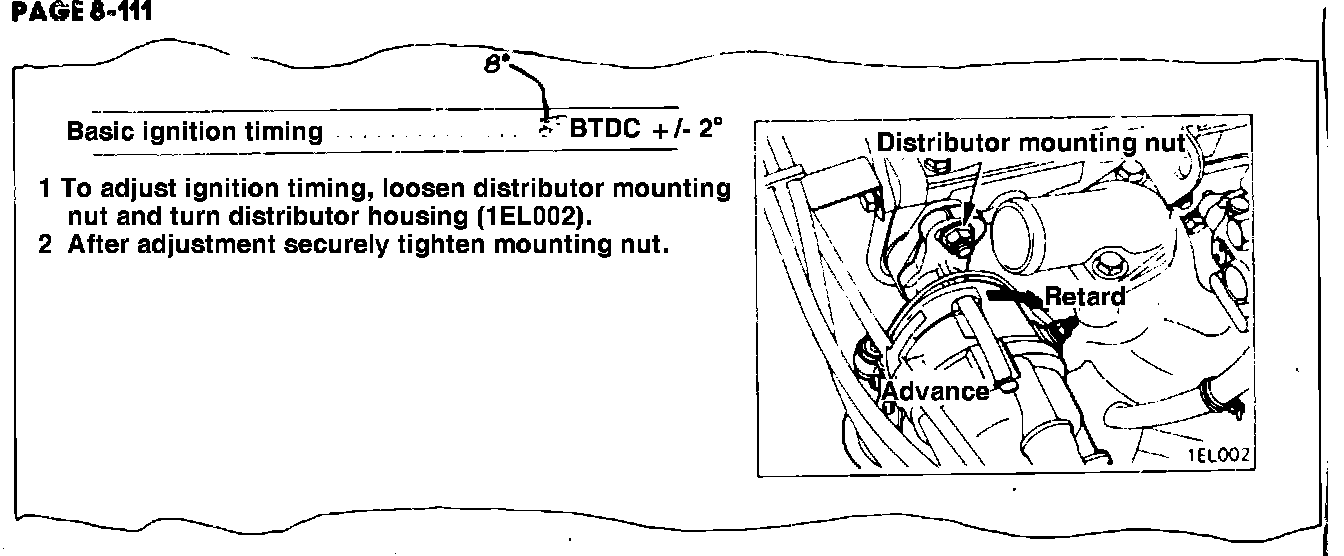

SPECIFICATION CHANGE The ignition timing specification shown in the service manual as 5 BTDC must be changed to 8 BTDC as shown below.
