EMR-92-009 Emission Recall Completed Label Installation

1. Write in your 5-digit dealer code under the white flap on the Emission Recall Completed Label (Figure 53).

2. Carefully remove the white paper from the backside of the flap. Press the now clear flap portion onto the label.

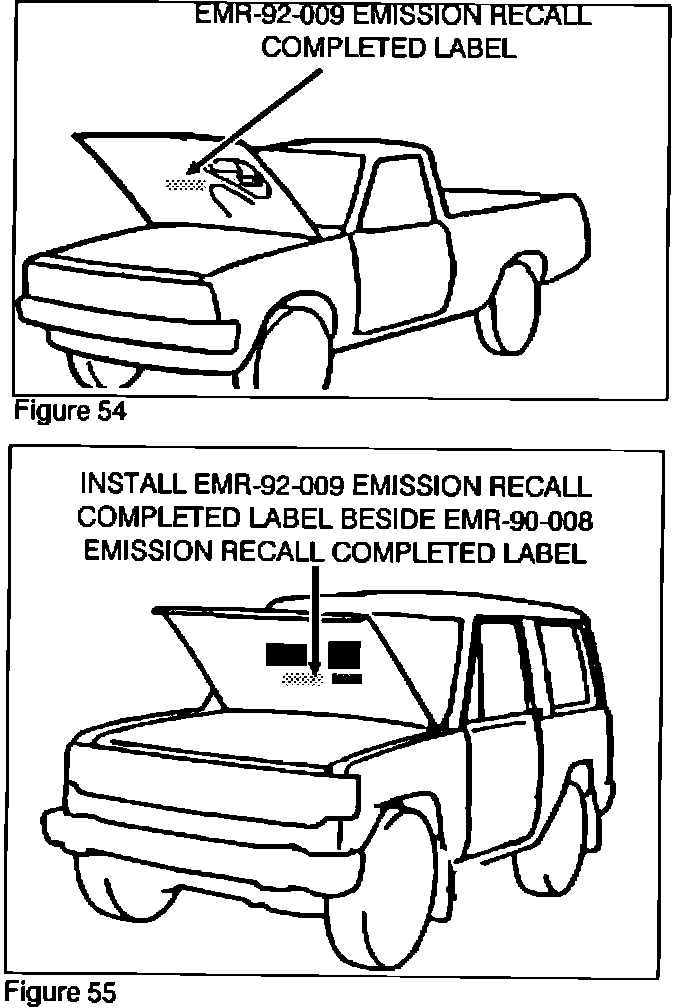

3. TRUCK - Carefully remove all dirt and oil from the center section of the hood. Affix the EMR-92-009 Emission Recall Completed Label in the center section of the hood. (Figure 54).

MONTERO - Carefully remove all dirt and oil from the right side of the existing EMR-90-008 Label. Affix the EMR-92-009 Emission Recall Completed Label beside the existing EMR-90-008 label (Figure 55).
