Vacuum Hose Installation Check


If the EMR-90-008 Emission Recall Completed Label is MISSING, proceed to Vacuum Hose Installation.

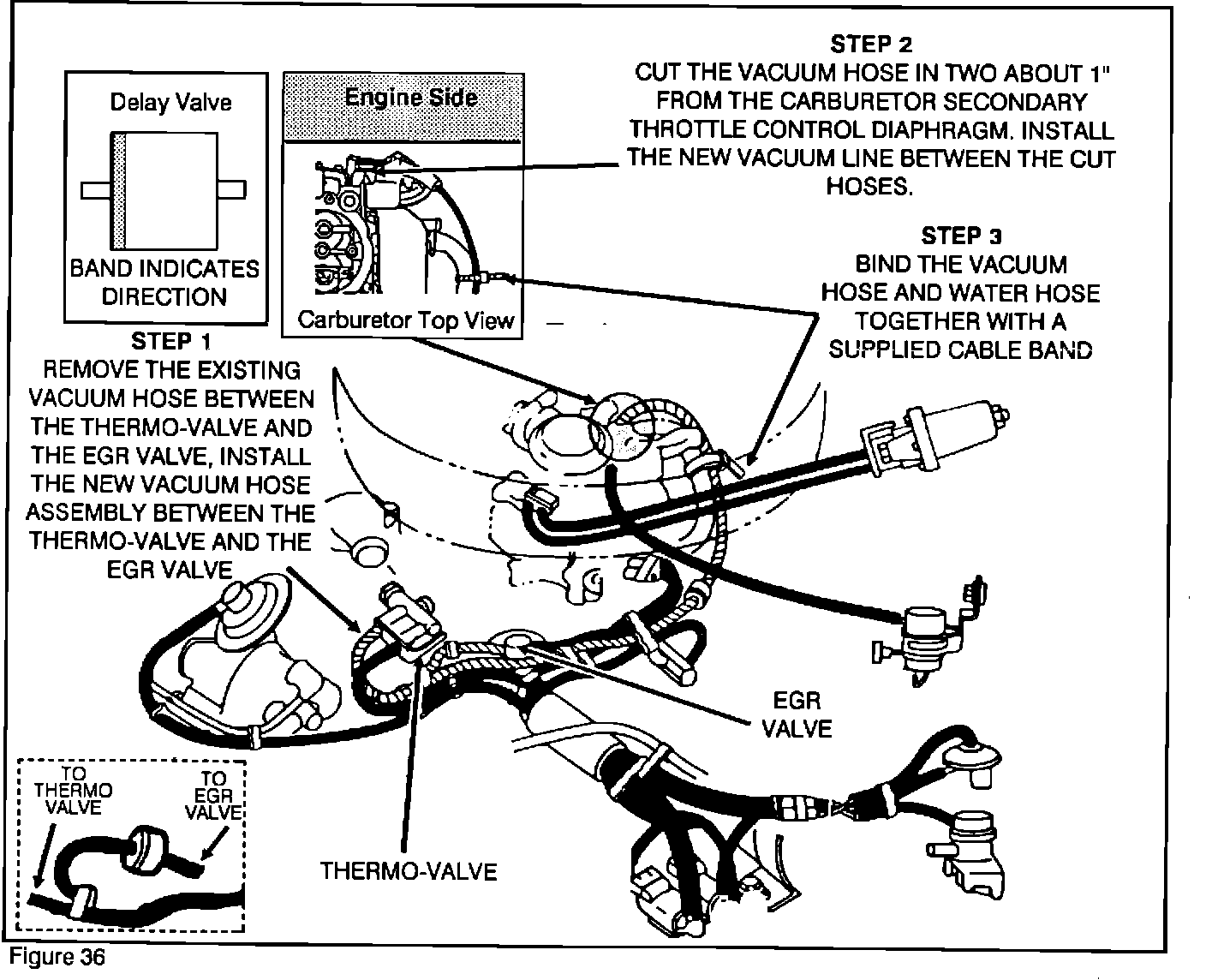

1. Check the installation of the modified vacuum hose assembly. Refer to





Figure 36-Truck,




Figure 37-Montero.


2. If the vacuum hose is not found, obtain the vacuum hose assembly contained in the correct EMR-90-008 emission kit and install the vacuum hose assembly.
