FBC/ECI System Checker - Test Harness Update

87mitsubishi04

SUBJECT:

FBC SYSTEM CHECKER TEST HARNESS - SERVICE MANUAL UPDATE
NO. STB-87-14-006

DATE July, 1987

MODEL 1987 Truck
STB Revision STB-87-14-006

PURPOSE

This bulletin is issued to correct the illustration of the ECI Test Harness and part numbers in the 1987 Truck Service Manual. As reference to this bulletin, please write the STB number in the revision boxes on Pages 14-57, 58, and 59 of the 1987 Truck Service Manual.

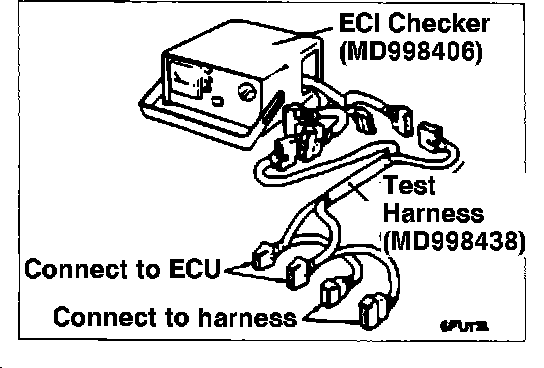

FIGURE 1:




CORRECTIONS

Page 14-57 The illustration in the Service Manual is incorrect. The correct illustration is shown in Fig. 1.



Pages 14-58 and 14-59 The part number in the chart titles on these pages is listed incorrectly as "MD998456". The correct number is MD998438. Please cross out the incorrect number and write in the correct one as illustrated below.
