Catalytic Converter: Description and Operation

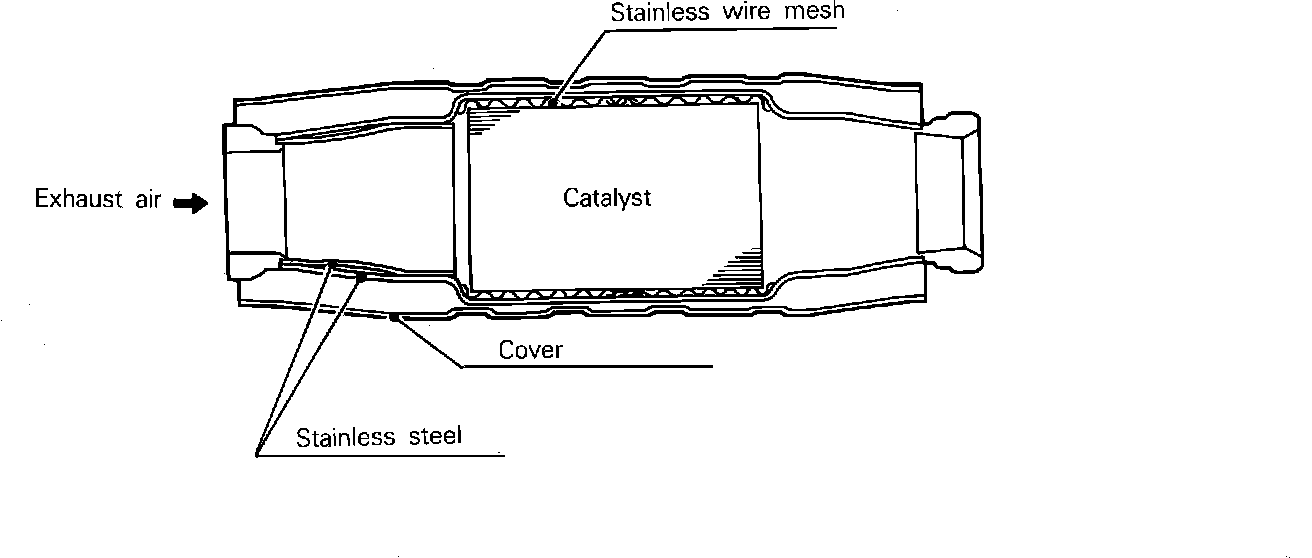

Fig. 25 Catalytic converter:

The catalytic converter, Fig. 25 promotes both oxidation and reduction of the exhaust gas mixture to achieve emission specifications before release to the atmosphere. The catalytic converter is a monolythic three-way device that uses catalytic compounds applied to an integrally constructed honeycomb carrier surface installed in the center of the exhaust pipe.

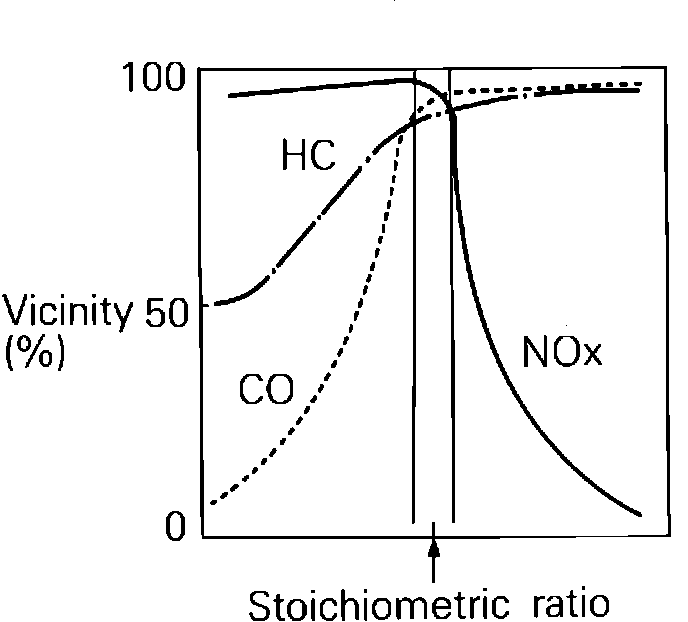

Fig. 26 Emission performance curve:

The catalytic converter removes CO, HC and NOx from the exhaust stream. It operates most effectively at the stoichiometric fuel-air mixture ratio, Fig. 26.
