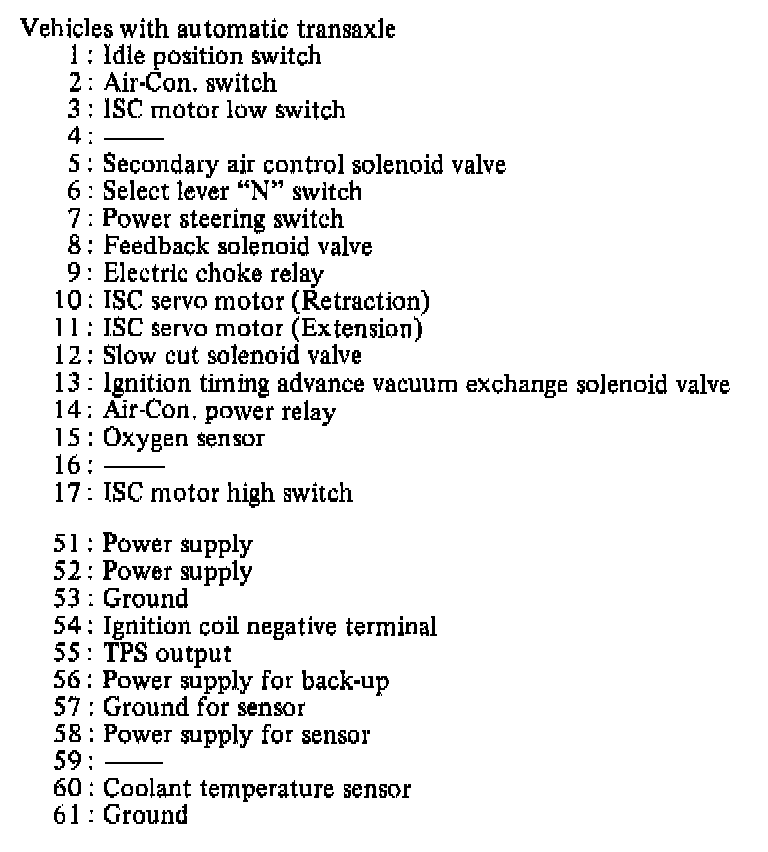

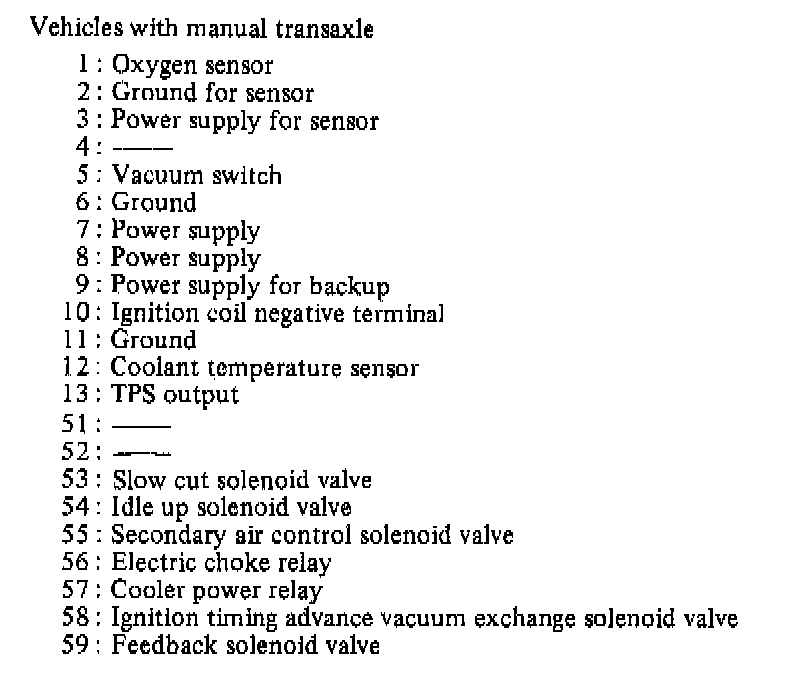

Carburetor Control Unit Pinout
CARBURETOR CONTROL UNIT TESTING If carburetor control unit appears defective, perform all checker tests and individual sensor tests. If everything is in order, replace the carburetor control unit.

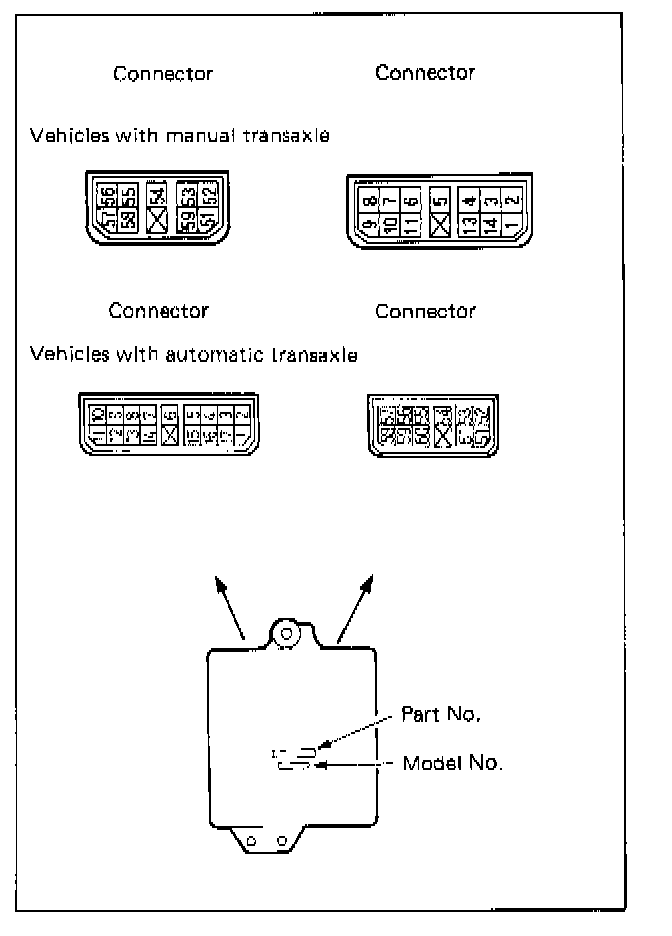

WITH MANUAL TRANSAXLE WITH AUTOMATIC TRANSAXLE CONNECTOR VIEWS
