O2 Sensor - Wiring Diagram Update
88mitsubishi07SUBJECT:
1989 GALANT O2 SENSOR - WIRING DIAGRAM UPDATE
NO. TSB-88-08-016
DATE September, 1988
MODEL 1989 Galant DOHC
TSB Revision TS8-88-08-016
PURPOSE

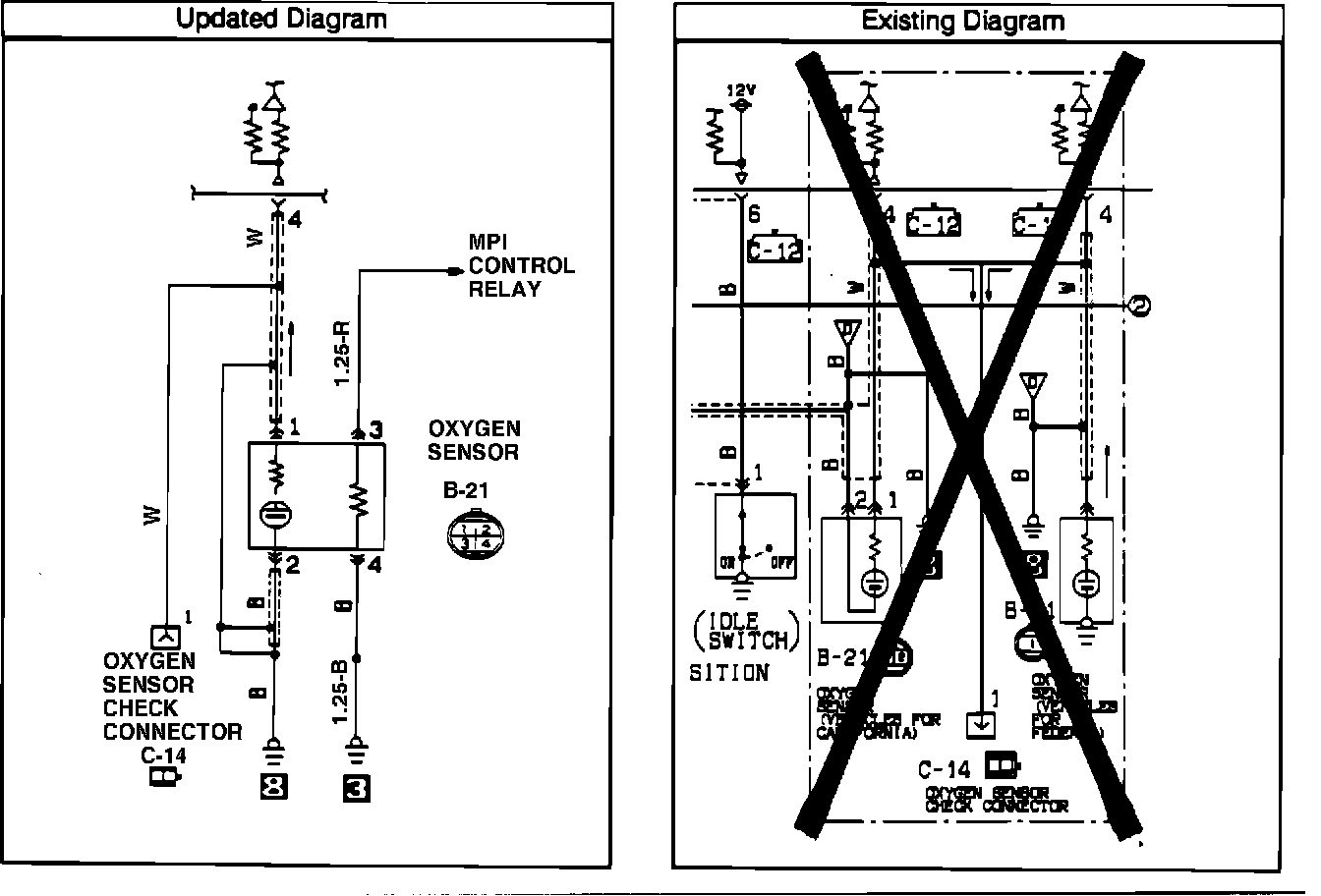

The connectors for both Federal and California oxygen sensors in the 1989 Galant DOHC engine have been unified to a four-pole connector. This bulletin is issued to update the Service Manuals and the Wiring Diagram.
AFFECTED MANUALS 1989 GALANT Service Manual, Vol. 1, Pg. 14-18 1989 GALANT Service Manual, Vol. 2, Pg. 8-84 1989 GALANT Wiring Diagram KX35-AG-8H0505A-N
INSTRUCTIONS On each of the affected Service Manual pages, cross out the box enclosing the wiring diagram for Federal and California oxygen sensors. Refer to this bulletin, by writing "TSB-88-08-016" in the revision box at the bottom of the page. Wiring Diagram KX35-AG-8H0505A-N for MPI < DOHC > is found in the envelope inside the back cover of 1989 GALANT Service Manual, Vol. 2. In this wiring diagram, cross out the box enclosing the wiring diagram for Federal and California oxygen sensors. Under the diagram, write "See TSB-88-08-016".
