EGR Temperature Sensor: Locations

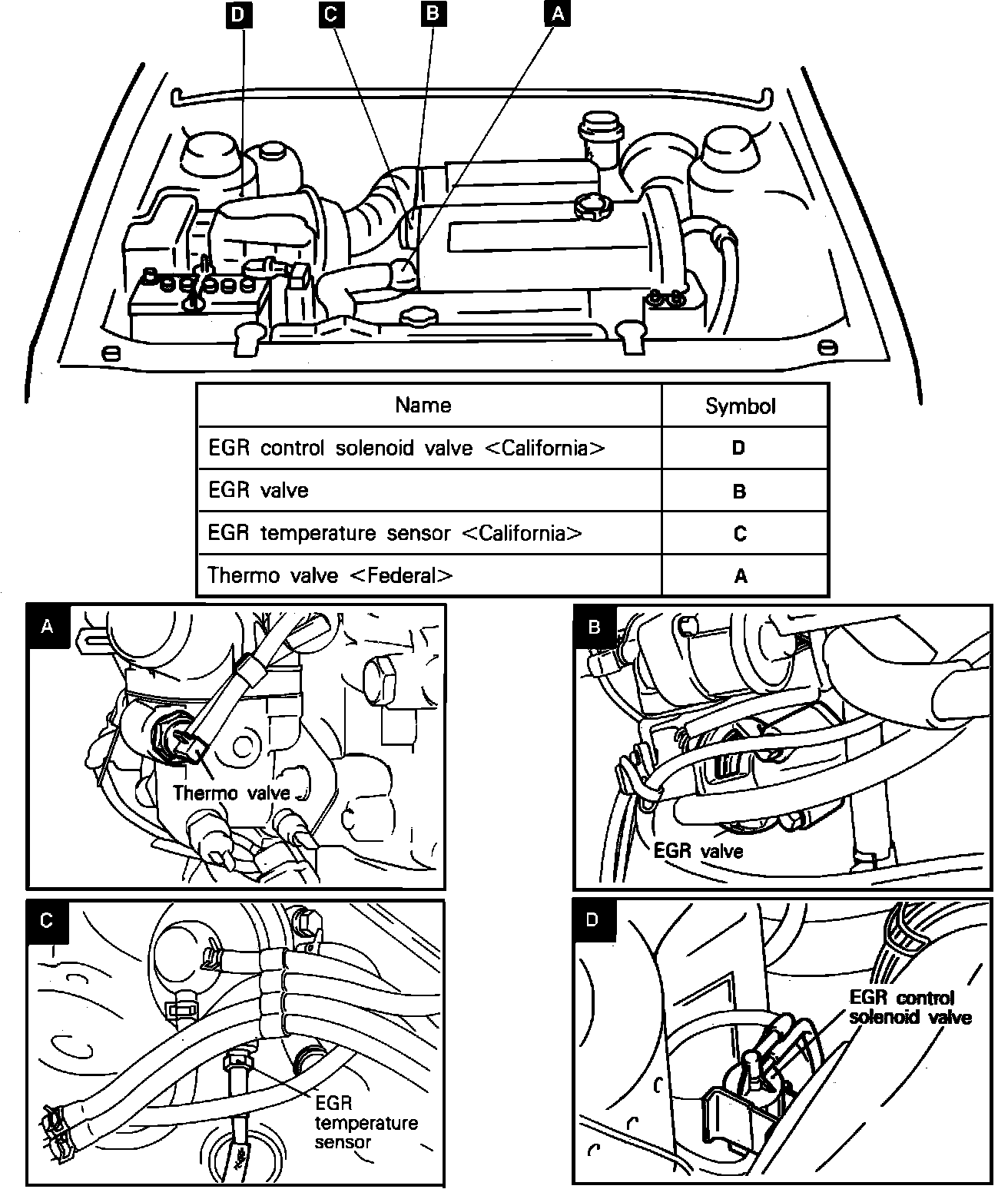

Fig. 25 Component Locations (EGR System):
EGR Control Solenoid Valve (CA.): Rear, RH side of engine compartment
EGR Temperature Sensor (CA.): Rear, RH side of engine
EGR Thermo Valve (Fed.): Lower, rear, RH side of engine
EGR Valve: Rear, LH side of engine
