Throttle Full Close Switch: Description and Operation

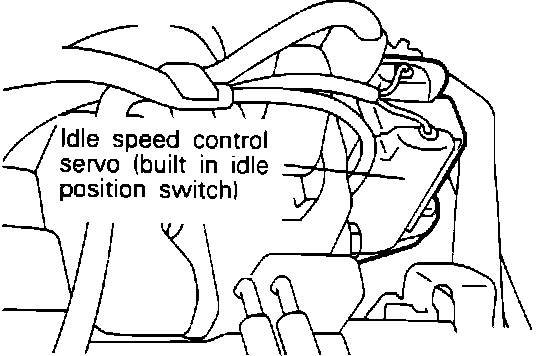

Idle Speed Servo Assembly:

The Idle Position Switch, is a contact switch that senses accelerator operation. The switch is built into the Idle Speed Control (ISC) servo and is not replaceable separately. When the throttle valve is in the idle position, the ISC lever pushes the switch on.

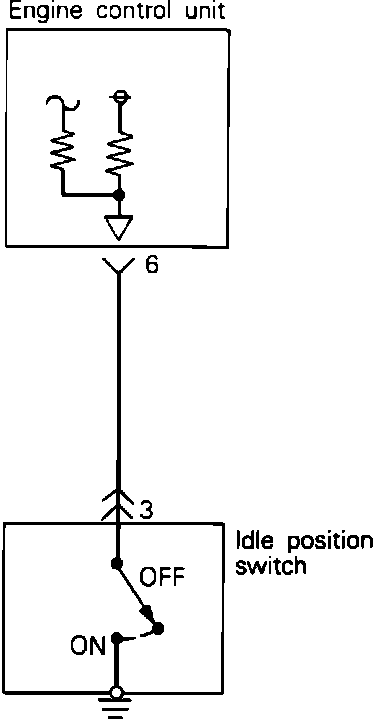

Idle Switch Circuit:

The Idle Position Switch position indicates whether the accelerator is either depressed or released and is monitored by the ECU, enabling it to control the idle speed control servo.
