EGR Valve: Locations

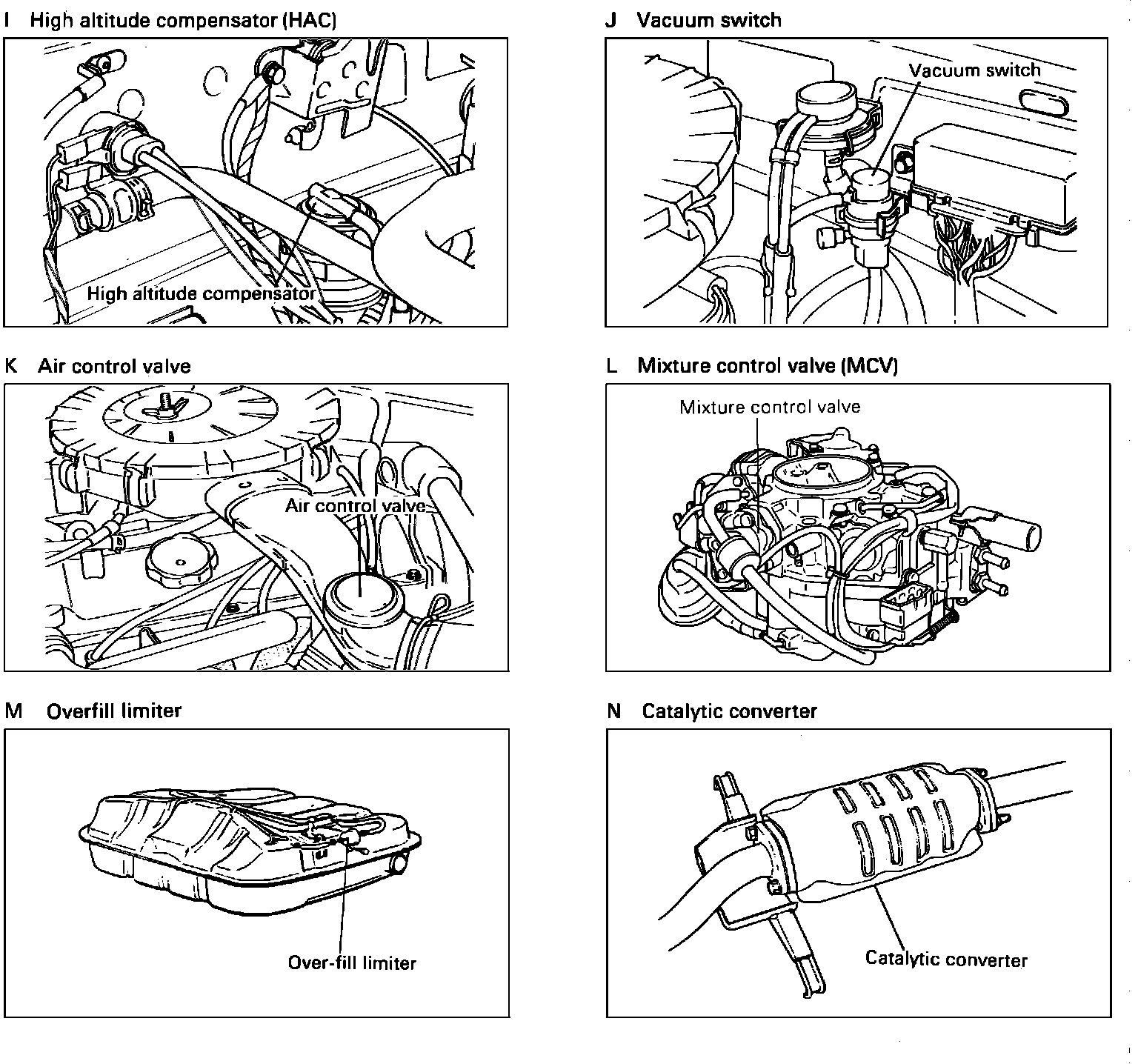

Fig. 6 Component Locations (Emission Control System):

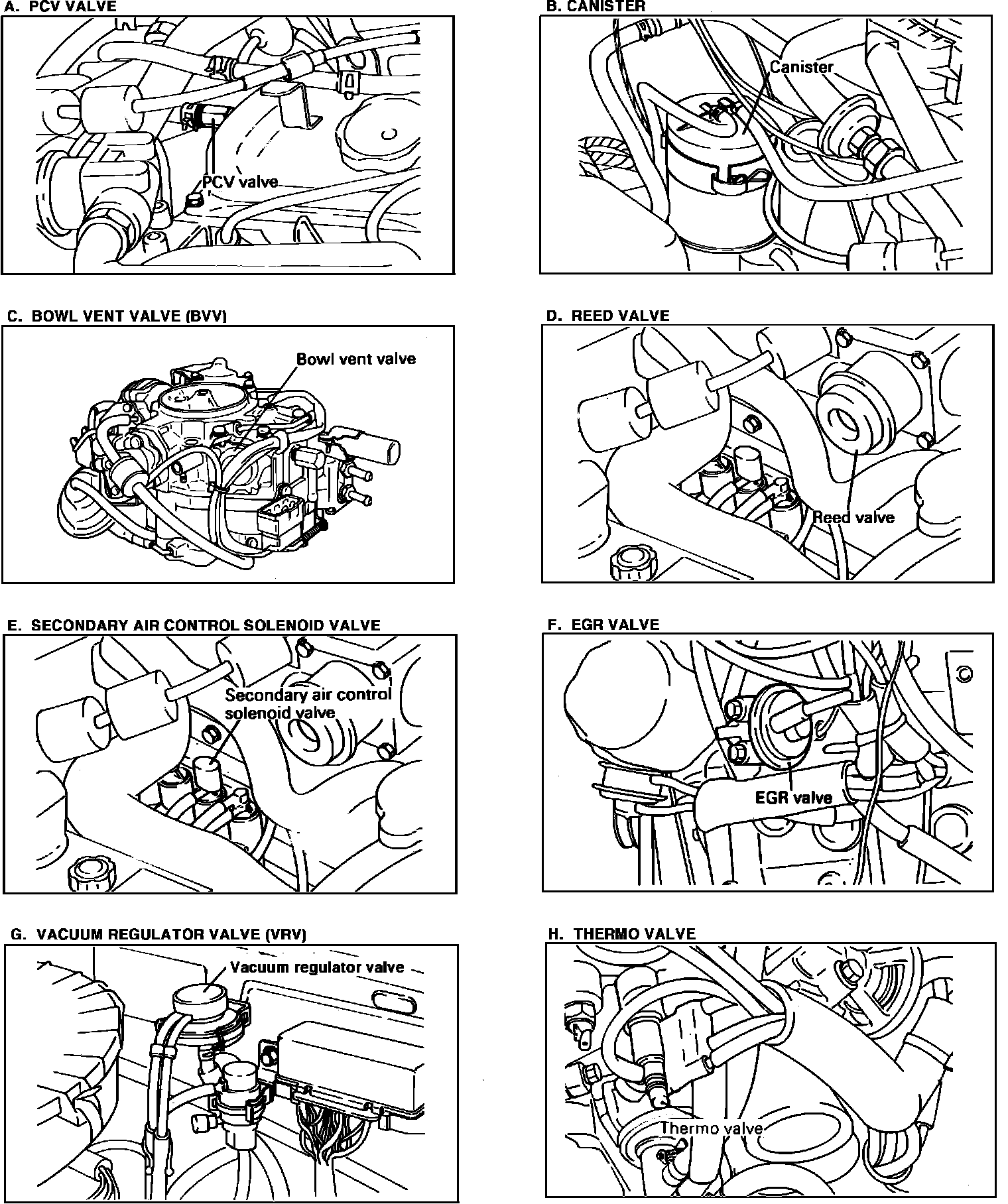

Fig. 6 Component Locations (Emission Control System):

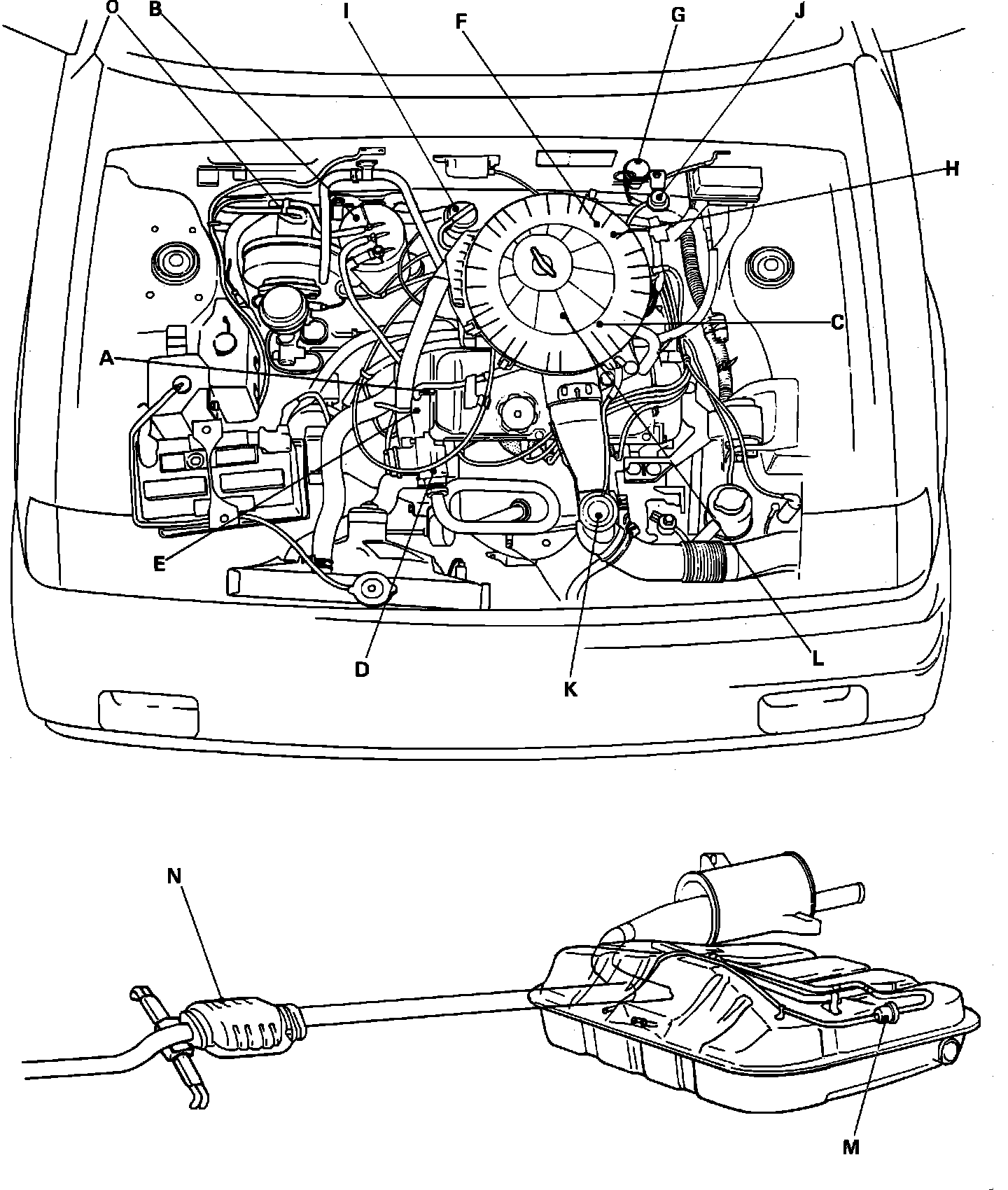

Fig. 6 Component Locations (Emission Control System):
[F]
EGR Valve: LH side of engine
[G]
Vacuum Regulator Valve (VRV): Rear, LH side of engine compartment, on firewall
[H]
Thermo Valve: LH side of engine, in intake manifold
