EGR Temperature Sensor: Locations

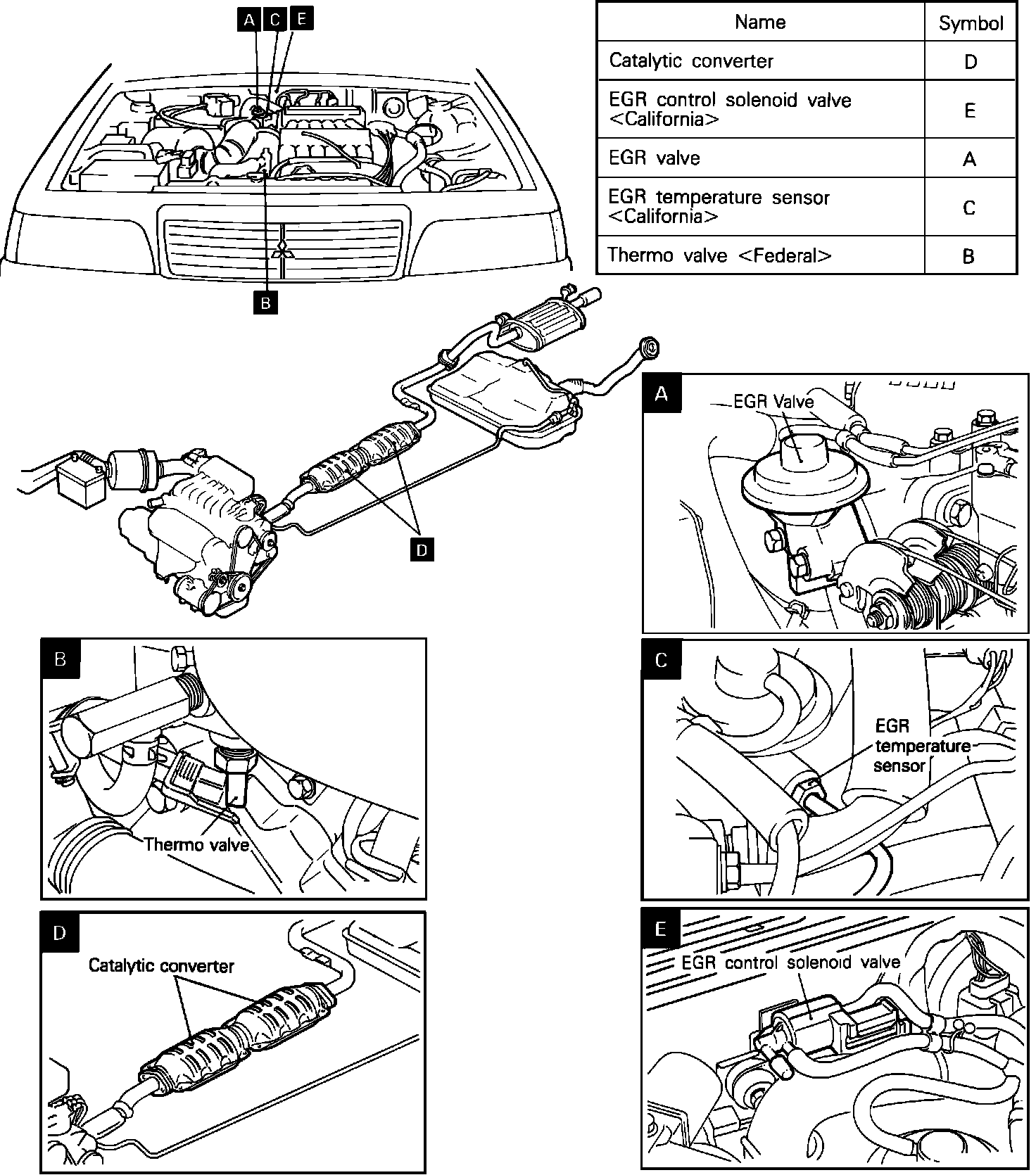

Fig. 21 Component Locations (Exhaust Gas Emission Control System):
EGR Control Solenoid Valve (Ca.): Center, rear of engine compartment
EGR Temperature Sensor (Ca.): Rear, LH side of engine
EGR Thermo Valve (Fed.): Rear, RH side of engine
EGR Valve: Rear, center of engine
