A/T Technical Data

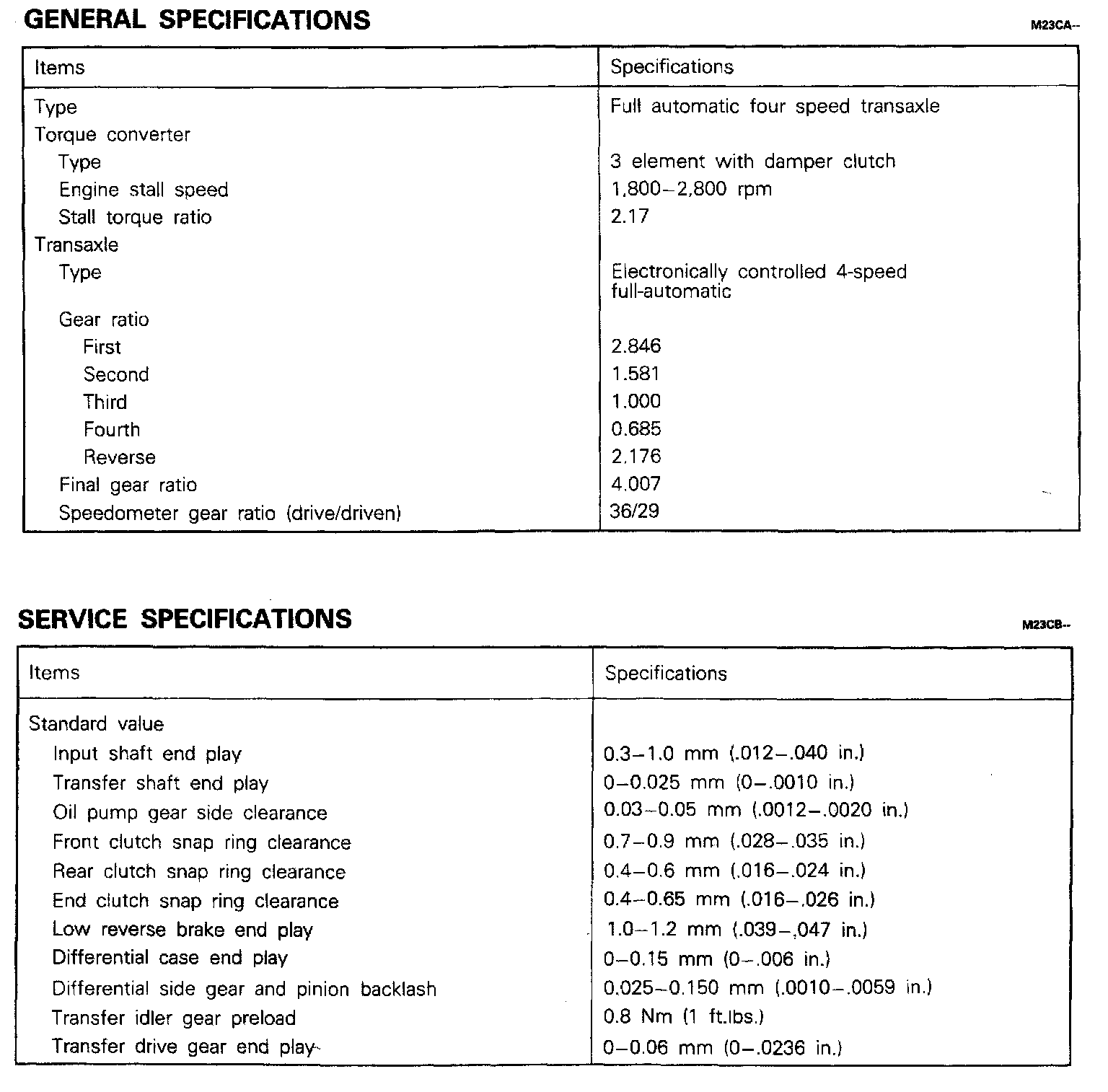

KM175 4-spd A/T, Gear Ratio & Standard Value Clearance/End Play:

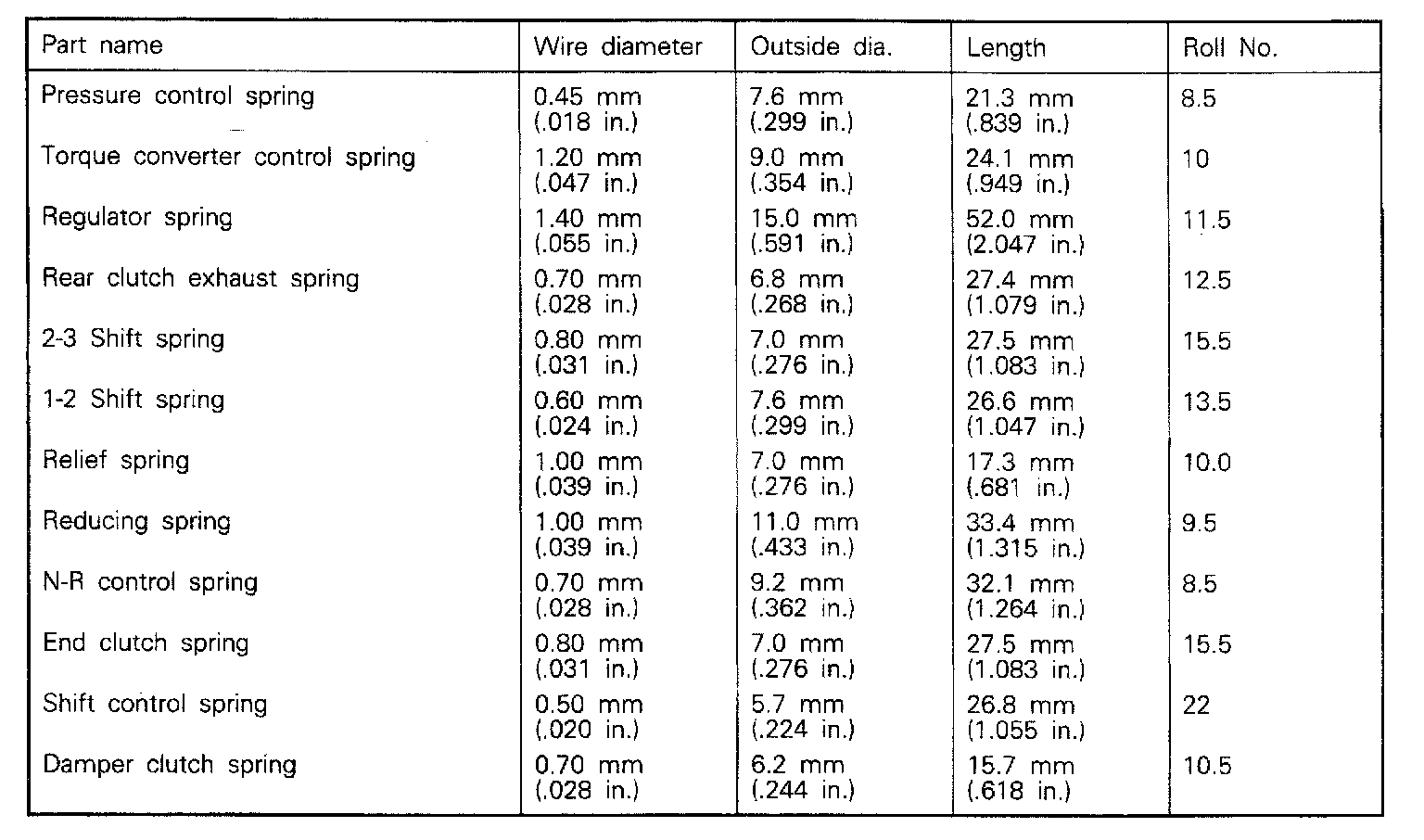

KM175 4-spd A/T, Valve Body Spring Chart:

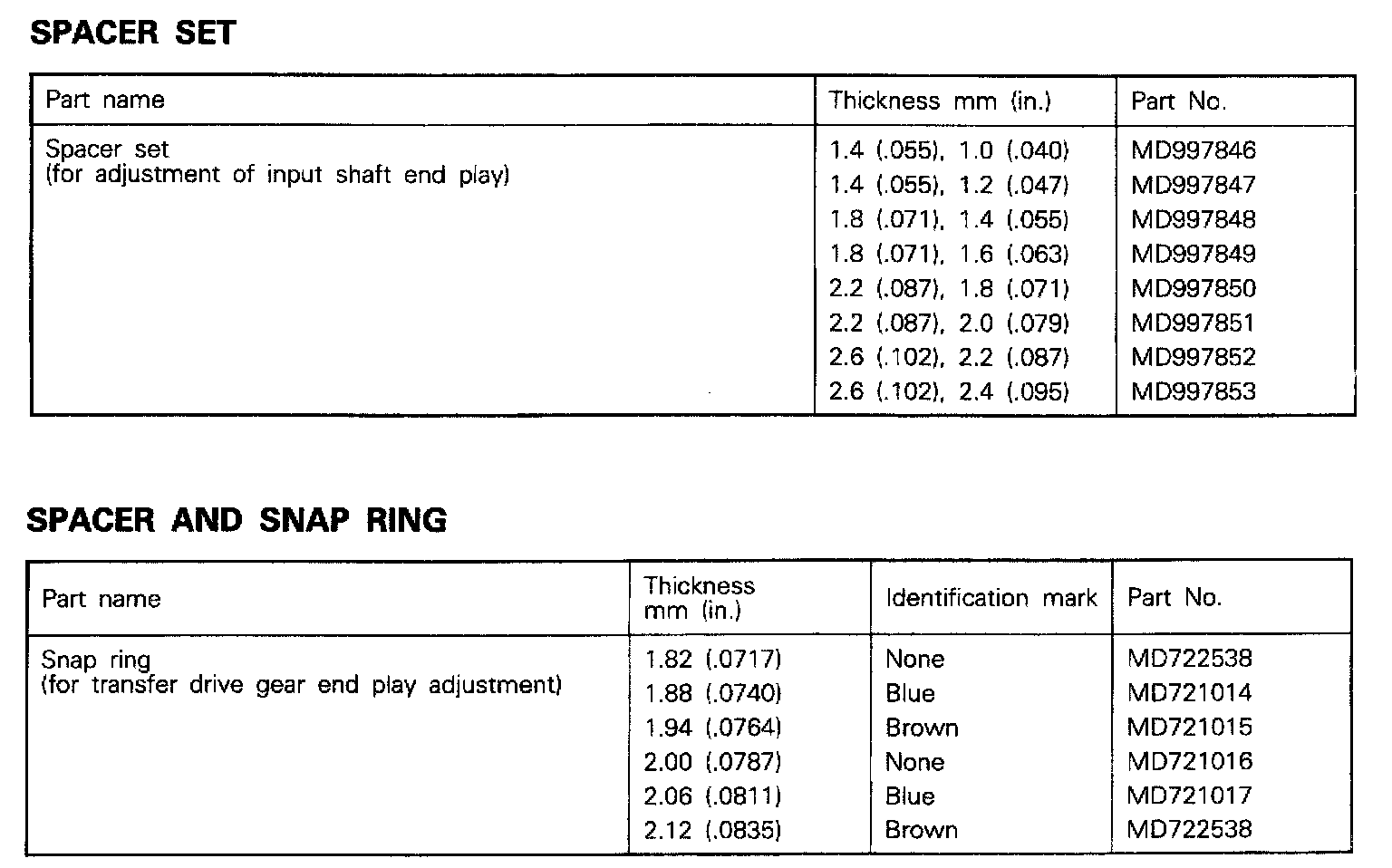

KM175 4-spd A/T, Input Shaft & Transfer Drive Gear End Play:

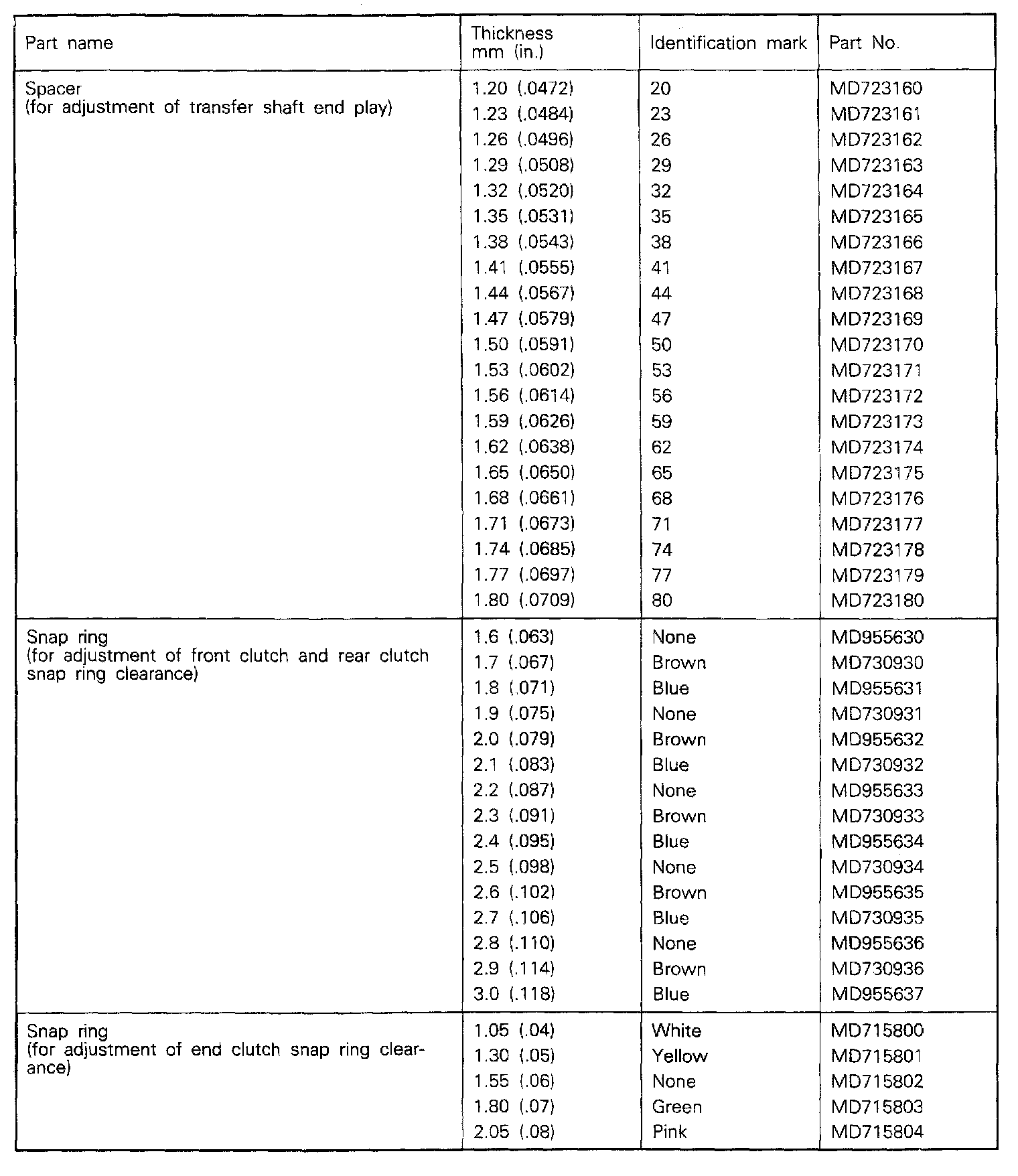

KM175 4-spd A/T, Transfer Shaft / Front, Rear, & End Clutch Clearance:

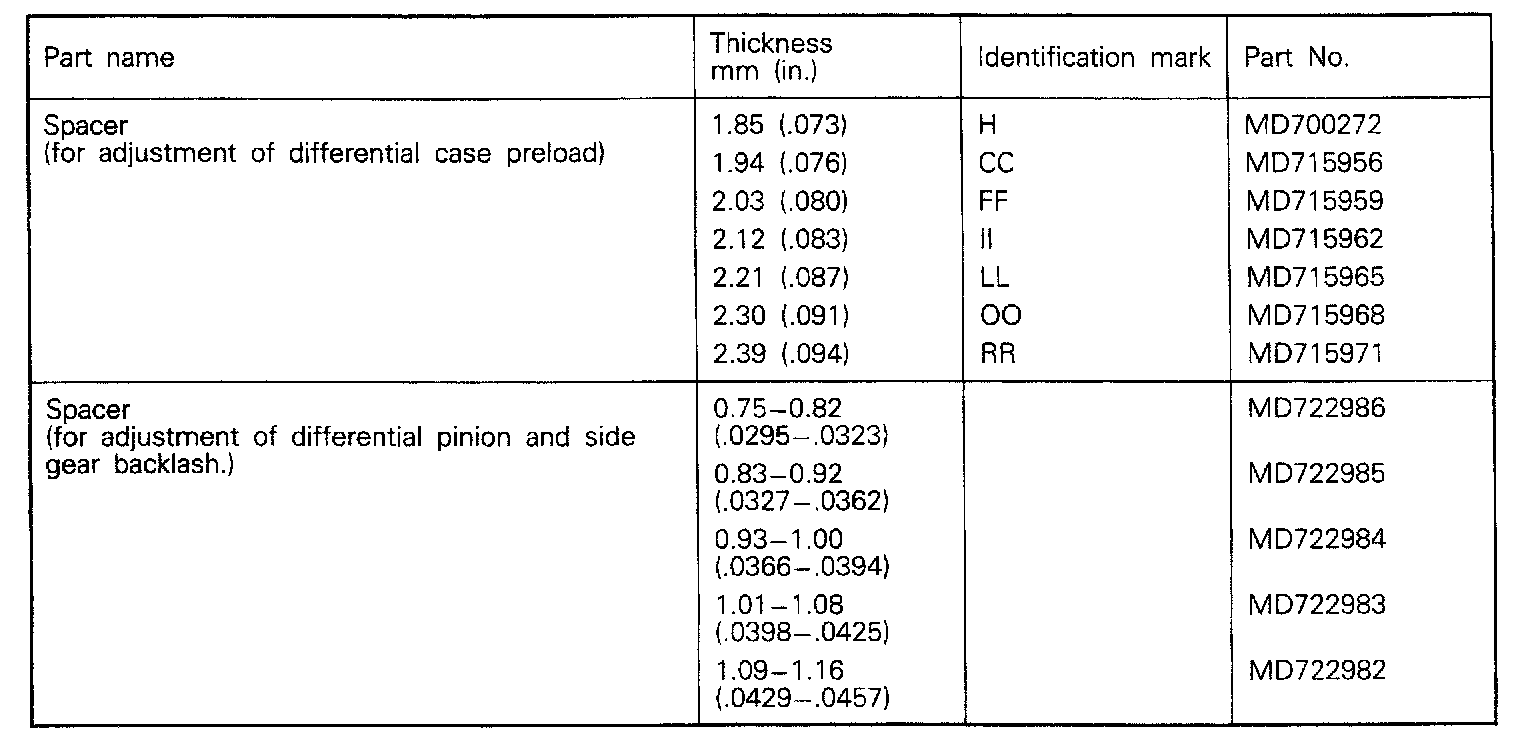

KM175 4-spd A/T, Differential Case & Pinion Side Gear Backlash:
