Fail-Safe Function Reference Table

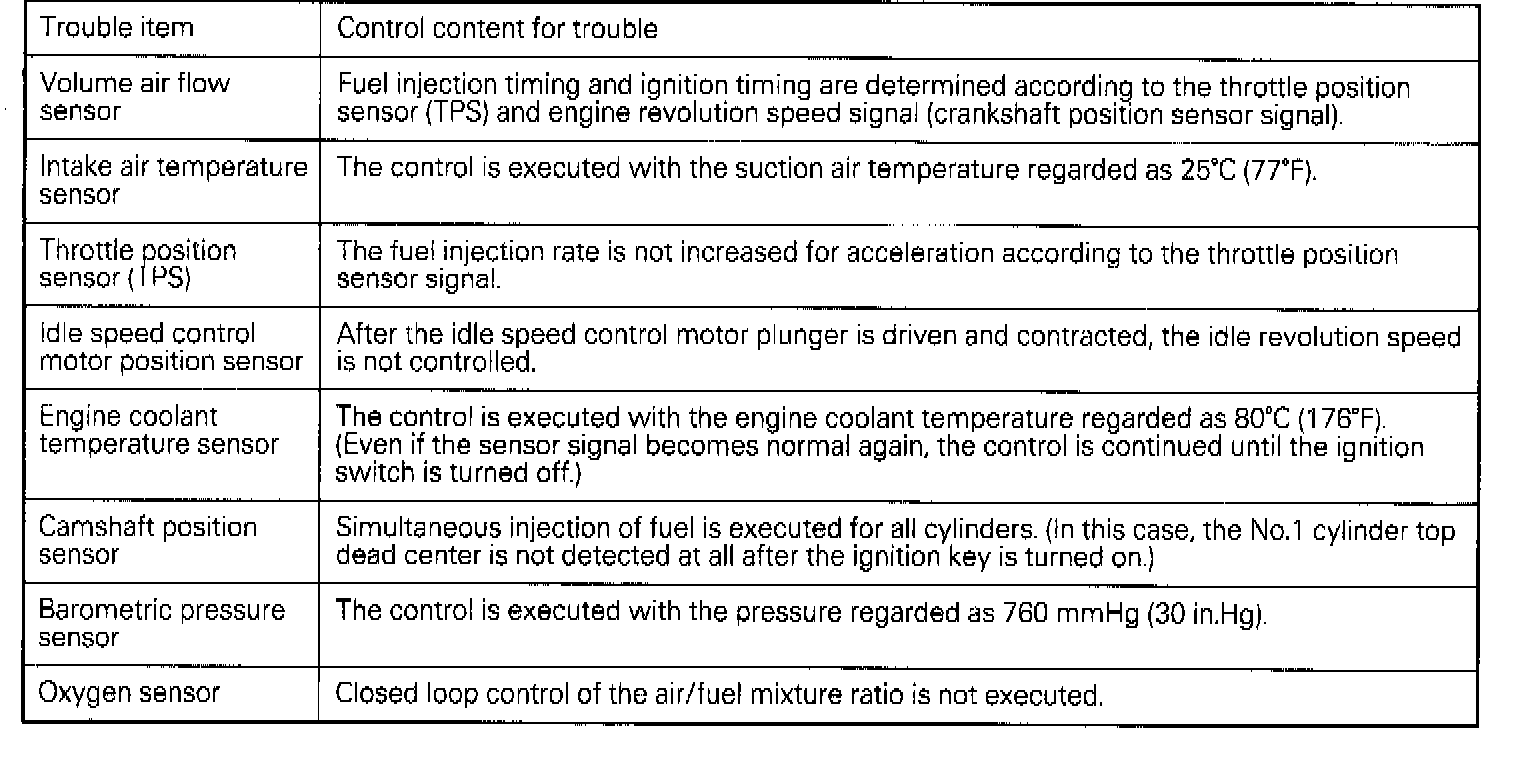

FAIL-SAFE/BACK-UP FUNCTIONS LIST
If trouble with any major sensor is detected by the on-board diagnostic, the vehicle will be kept in the driving conditions according to the preset control logic.
